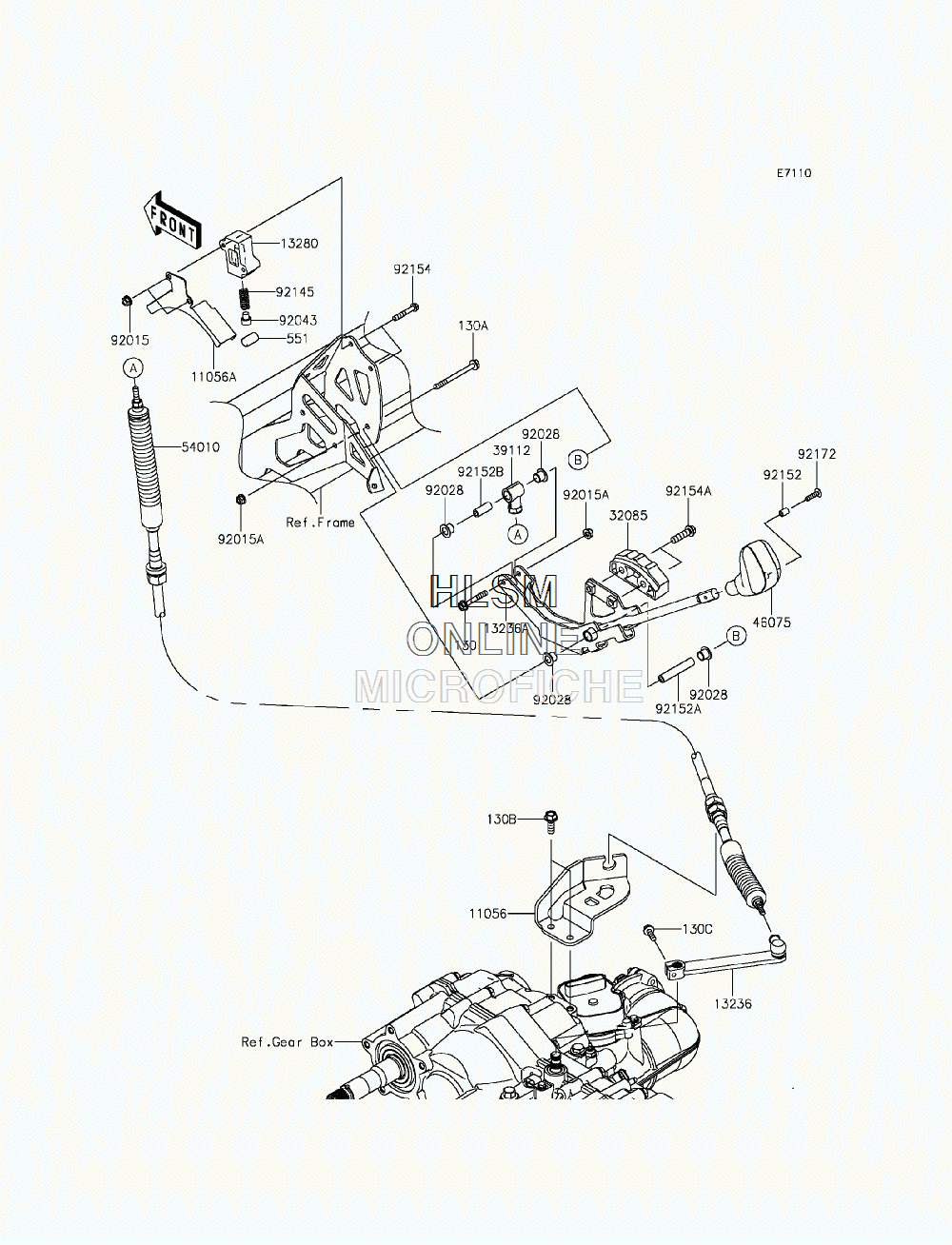

SHIFT LEVER(S) для Kawasaki MULE PRO-FXT RANCH EDITION (KAF820JGF) - 2016 года выпуска`
-
№АртикулНазвание
-
130130BA0640 BOLT-FLANGED, 6X40BOLT-FLANGED, 6X40
-
130A130BA0670 BOLT-FLANGED, 6X70BOLT-FLANGED, 6X70
-
130B130BA0822 BOLT-FLANGED, 8X22BOLT-FLANGED, 8X22
-
130C130CD0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
551551R1220 PIN-DOWEL, 12X20PIN-DOWEL, 12X20
-
1105611056-2946 BRACKET, T/M SIDEBRACKET, T/M SIDE
-
11056A11056-7274 BRACKET, DUST COVERBRACKET, DUST COVER
-
1323613236-0747 LEVER-COMP, T/M SIDELEVER-COMP, T/M SIDE
-
13236A13236-0748 LEVER-COMP, SHIFTLEVER-COMP, SHIFT
-
1328013280-0776 HOLDERHOLDER
-
3208532085-0748 STOPPERSTOPPER
-
3911239112-0020 RODEND-TIERODEND-TIE
-
4607546075-0569 GRIPGRIP
-
5401054010-0601 CABLE, SHIFTCABLE, SHIFT
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202892028-1507 BUSHINGBUSHING
-
9204392043-0790 PINPIN
-
9214592145-1578 SPRINGSPRING
-
9215292152-1545 COLLAR, 5.6X8X10.5COLLAR, 5.6X8X10.5
-
92152A92152-1823 COLLAR, 6X10X56.5COLLAR, 6X10X56.5
-
92152B92152-1854 COLLAR, 6X10X25COLLAR, 6X10X25
-
9215492154-1544 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
-
92154A92154-1907 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9217292172-2081 SCREW, 5X20SCREW, 5X20
