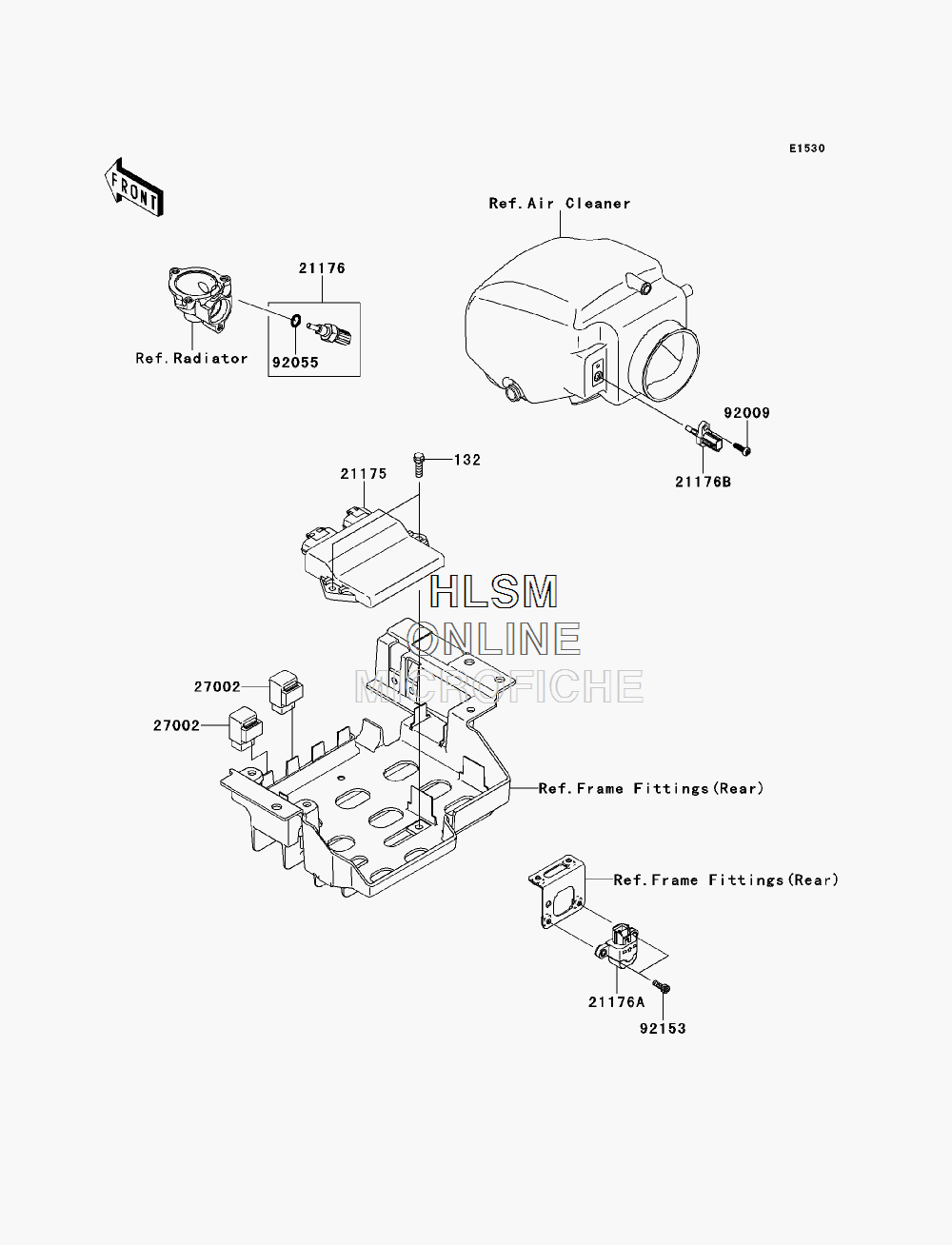

FUEL INJECTION для Kawasaki TERYX 750 FI 4X4 LE (KRF750PDF) - 2013 года выпуска
-
№АртикулНазвание
-
132132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
2117521175-0760 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
2117621176-0009 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
21176A21176-0026 SENSOR, VEHICLE-DOWNSENSOR, VEHICLE-DOWN
-
21176B21176-0048 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2700227002-1062 RELAY-ASSYRELAY-ASSY
-
9200992009-1984 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9205592055-0016 RING-O, 9.5X1.9RING-O, 9.5X1.9
-
9215392153-1286 BOLT, SOCKET, 5X14BOLT, SOCKET, 5X14
