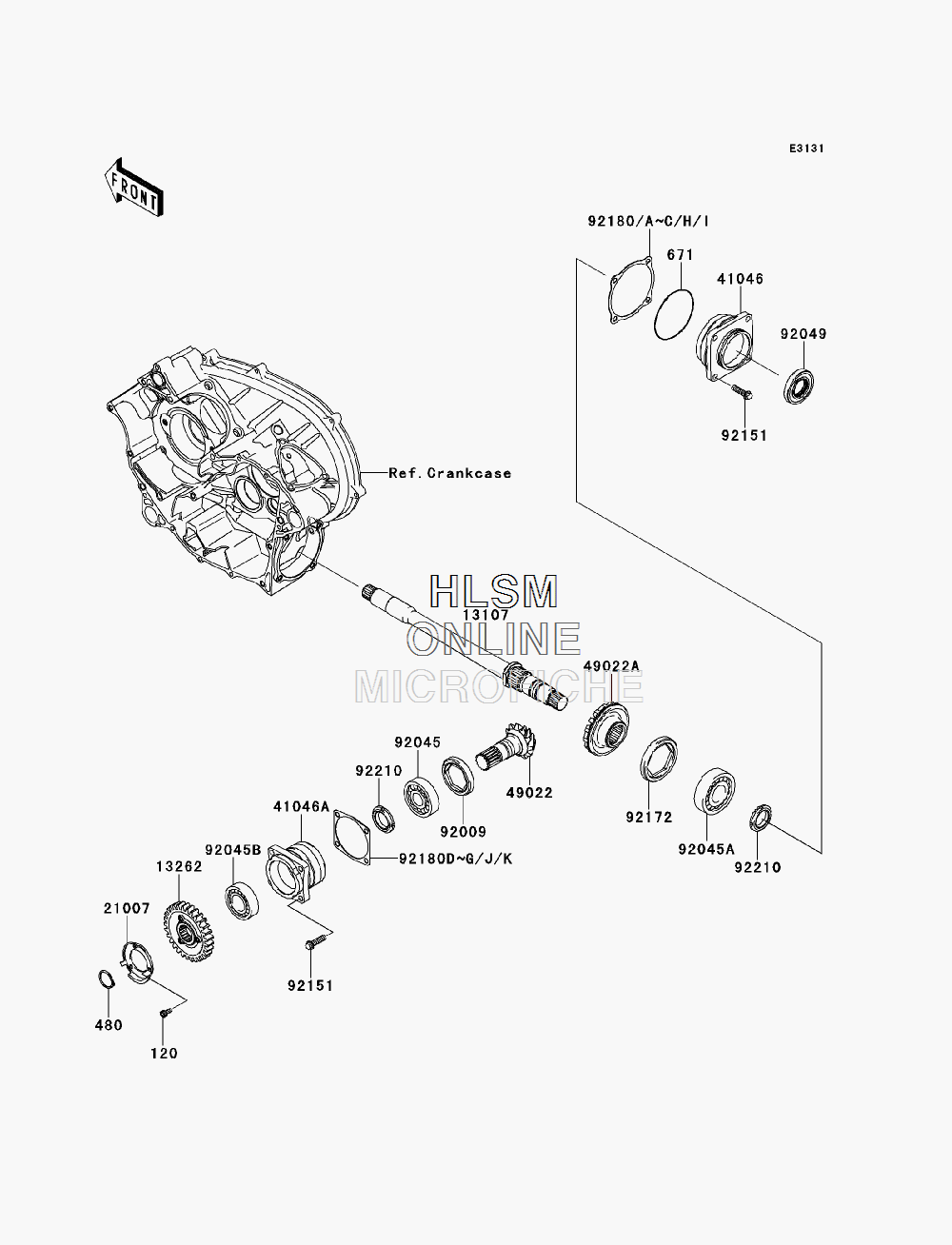

FRONT BEVEL GEAR для Kawasaki TERYX 750 FI 4X4 LE (KRF750PDF) - 2013 года выпуска
-
№АртикулНазвание
-
120120CA0612 BOLT-SOCKET, 6X12BOLT-SOCKET, 6X12
-
480480J2800 CIRCLIP-TYPE-C, 28MMCIRCLIP-TYPE-C, 28MM
-
671671D2585 O RINGO RING
-
1310713107-0176 SHAFTSHAFT
-
1326213262-0548 GEAR, OUTPUT DRIVEN, 29TGEAR, OUTPUT DRIVEN, 29T
-
2100721007-1416 ROTOR, REVERSE SENSORROTOR, REVERSE SENSOR
-
4104641046-0025 HOUSING-BEARINGHOUSING-BEARING
-
41046A41046-1101 HOUSING-BEARINGHOUSING-BEARING
-
4902249022-0044 GEAR-BEVEL, DRIVE, 11TGEAR-BEVEL, DRIVE, 11T
-
49022A49022-0045 GEAR-BEVEL, DRIVEN, 21TGEAR-BEVEL, DRIVEN, 21T
-
9200992009-1914 SCREW, 64MMSCREW, 64MM
-
9204592045-0131 BEARING-BALLBEARING-BALL
-
92045A92045-1190 BEARING-BALL, 6306SH2BEARING-BALL, 6306SH2
-
92045B92045-1207 BEARING-BALL, 62/28BEARING-BALL, 62/28
-
9204992049-0160 SEAL-OILSEAL-OIL
-
9215192151-1688 BOLT-FLANGED-SMALL, 8X30BOLT-FLANGED-SMALL, 8X30
-
9217292172-0371 SCREW, SET, 75X10SCREW, SET, 75X10
-
9218092180-1307 SHIM, DRIVEN, T=0.15SHIM, DRIVEN, T=0.15
-
92180A92180-1308 SHIM, DRIVEN, T=0.20SHIM, DRIVEN, T=0.20
-
92180B92180-1309 SHIM, DRIVEN, T=0.50SHIM, DRIVEN, T=0.50
-
92180C92180-1310 SHIM, DRIVEN, T=0.80SHIM, DRIVEN, T=0.80
-
92180D92180-1311 SHIM, DRIVE, T=0.15SHIM, DRIVE, T=0.15
-
92180E92180-1312 SHIM, DRIVE, T=0.20SHIM, DRIVE, T=0.20
-
92180F92180-1313 SHIM, DRIVE, T=0.50SHIM, DRIVE, T=0.50
-
92180G92180-1314 SHIM, DRIVE, T=0.80SHIM, DRIVE, T=0.80
-
92180H92180-1349 SHIM, DRIVEN, T=1.00SHIM, DRIVEN, T=1.00
-
92180I92180-1350 SHIM, DRIVEN, T=1.20SHIM, DRIVEN, T=1.20
-
92180J92180-1351 SHIM, DRIVE, T=1.00SHIM, DRIVE, T=1.00
-
92180K92180-1352 SHIM, DRIVE, T=1.20SHIM, DRIVE, T=1.20
-
9221092210-1294 NUT, 30MMNUT, 30MM
