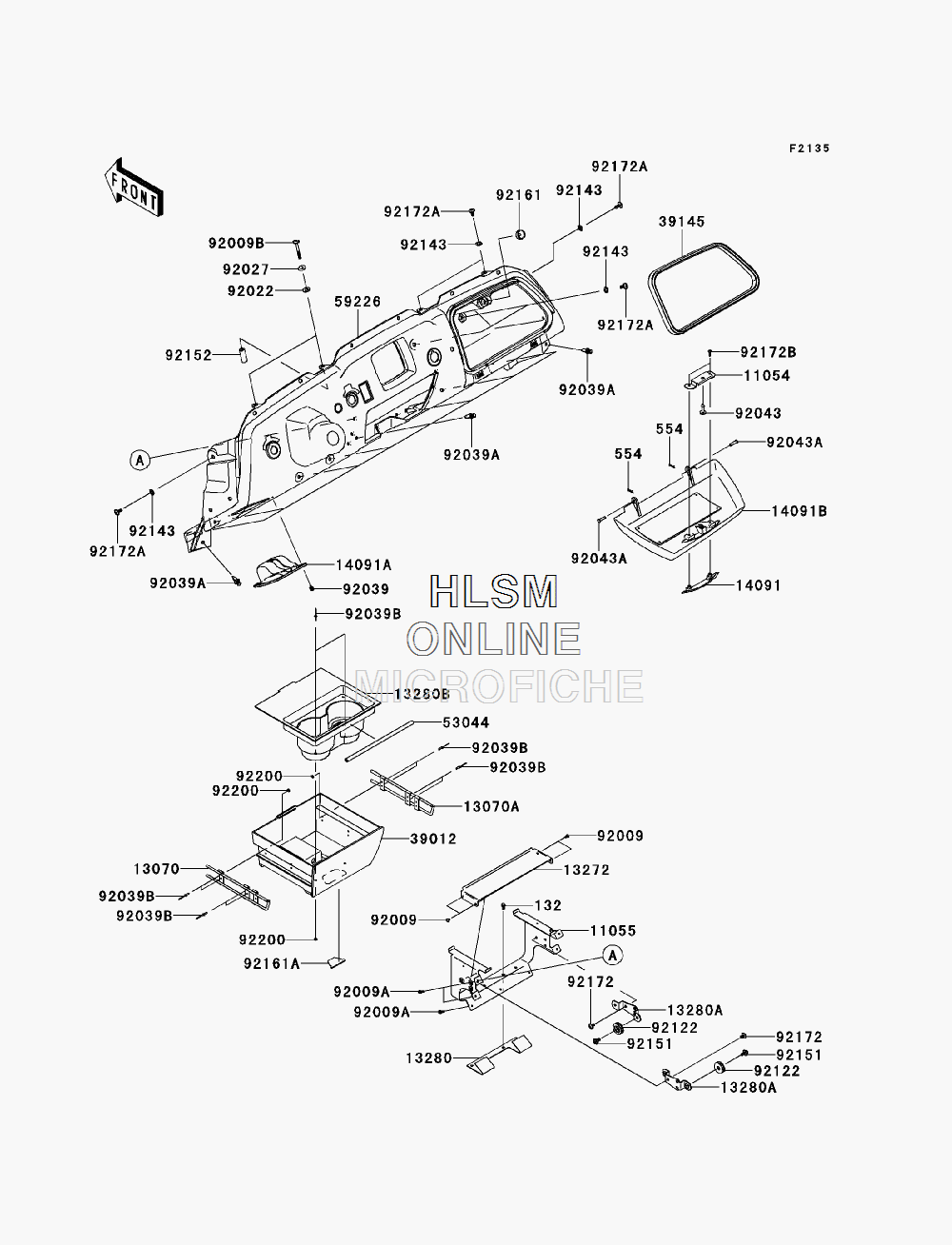

FRONT BOX для Kawasaki TERYX 750 FI 4X4 LE (KRF750PDF) - 2013 года выпуска`
-
№АртикулНазвание
-
132132BB0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1105411054-1789 BRACKETBRACKET
-
1105511055-0811 BRACKET, CUP HOLDERBRACKET, CUP HOLDER
-
1307013070-0098 GUIDE, CUP HOLDER, LEFT HANDGUIDE, CUP HOLDER, LEFT HAND
-
13070A13070-0099 GUIDE, CUP HOLDER, RIGHT HANDGUIDE, CUP HOLDER, RIGHT HAND
-
1327213272-0446 PLATE, CUP HOLDERPLATE, CUP HOLDER
-
1328013280-0210 HOLDER, LWRHOLDER, LWR
-
13280A13280-0289 HOLDERHOLDER
-
13280B13280-0296 HOLDERHOLDER
-
1409114091-0700-6Z COVER, STORAGE CAP, (F.BLACK) (FOR 31Y)COVER, STORAGE CAP, (F.BLACK) (FOR 31Y)
-
14091A14091-0702-6Z COVER, LEFT HAND, (F.BLACK) (FOR 31Y)COVER, LEFT HAND, (F.BLACK) (FOR 31Y)
-
14091B14091-0985-6Z COVER, STORAGE, (F.BLACK) (FOR 31Y)COVER, STORAGE, (F.BLACK) (FOR 31Y)
-
3901239012-0024-6Z CASE-STORAGE, (F.BLACK) (FOR 31Y)CASE-STORAGE, (F.BLACK) (FOR 31Y)
-
3914539145-0029 TRIM-SEAL, L=940TRIM-SEAL, L=940
-
5304453044-0043 TRIM, L=256.6TRIM, L=256.6
-
5922659226-0019-6Z PANEL-CONTROL, (F.BLACK) (FOR 31Y)PANEL-CONTROL, (F.BLACK) (FOR 31Y)
-
9200992009-1155 SCREW, TAPPING, 4X8SCREW, TAPPING, 4X8
-
92009A92009-1444 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009B92009-1829 SCREW, 6X56SCREW, 6X56
-
9202292022-239 WASHER, 10.5X20X1WASHER, 10.5X20X1
-
9202792027-1964 COLLAR, L=4.7COLLAR, L=4.7
-
9203992039-0046 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
92039B92039-1231 RIVETRIVET
-
9204392043-0138 PINPIN
-
92043A92043-0164 PIN, 6X23PIN, 6X23
-
9212292122-0024 ROLLERROLLER
-
9214392143-1087 COLLARCOLLAR
-
9215192151-1703 BOLT, FLANGED, 6X13BOLT, FLANGED, 6X13
-
9215292152-0777 COLLAR, 7.95X15.88X40COLLAR, 7.95X15.88X40
-
9216192161-0568 DAMPERDAMPER
-
92161A92161-0653 DAMPER, CUP HOLDERDAMPER, CUP HOLDER
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
-
92172A92172-0236 SCREW, 6X16SCREW, 6X16
-
92172B92172-0347 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
9220092200-1251 WASHER, 3.5X8X1WASHER, 3.5X8X1
