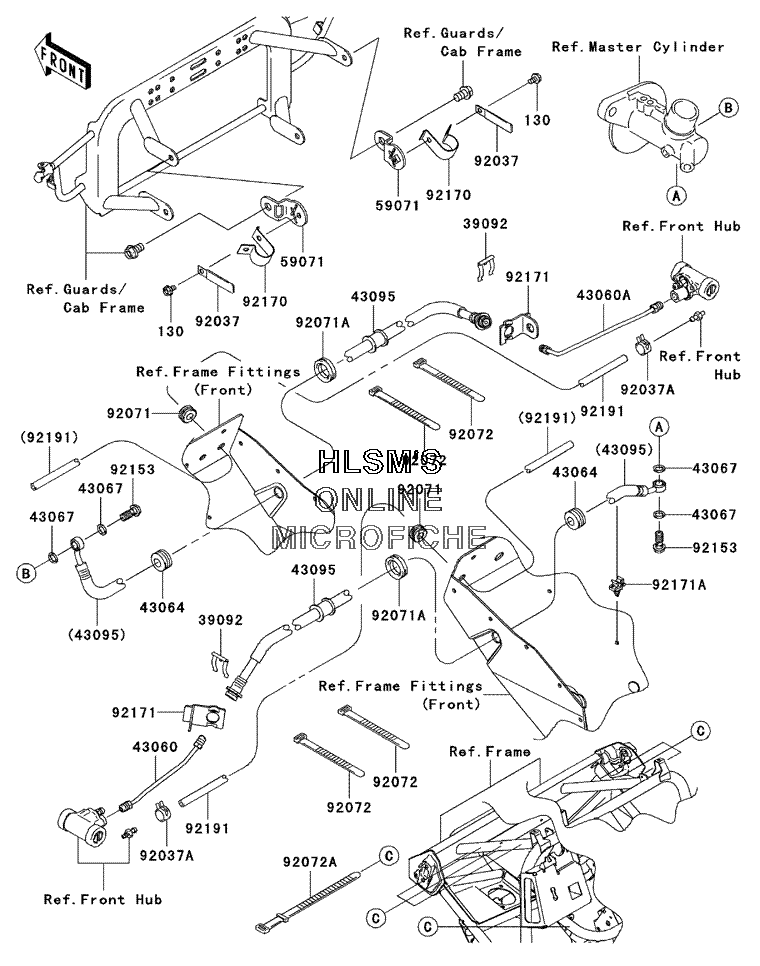

BRAKE PIPING - FRONT для Kawasaki MULE 610 4x4 (KAF400-A1) - 2005 года выпуска`
-
№АртикулНазвание
-
130130D0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
3909239092-1052 PIN-HAIRPIN-HAIR
-
4306043060-0001 PIPE-BRAKE, FRONT (LEFT)PIPE-BRAKE, FRONT (LEFT)
-
43060A43060-0002 PIPE-BRAKE, FRONT (RIGHT)PIPE-BRAKE, FRONT (RIGHT)
-
4306443064-007 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-0055 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
5907159071-0024 JOINTJOINT
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1601 CLAMPCLAMP
-
9207192071-1010 GROMMETGROMMET
-
92071A92071-3704 GROMMETGROMMET
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-056 BAND, L=186BAND, L=186
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1173 CLAMP, HOSECLAMP, HOSE
-
9217192171-0297 CLAMPCLAMP
-
92171A92171-0339 CLAMPCLAMP
-
9219192191-1615 TUBE, 4.7X9.5X1480TUBE, 4.7X9.5X1480
