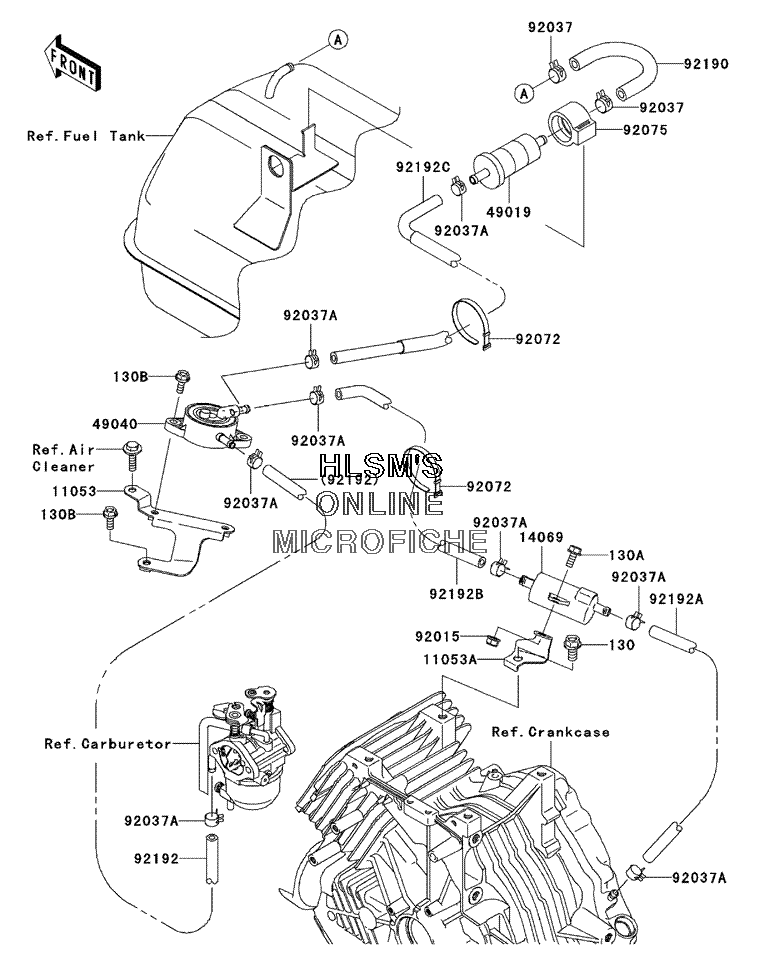

FUEL PUMP для Kawasaki MULE 610 4x4 (KAF400-A1) - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0816 BOLT-FLANGED, 8X16
    BOLT-FLANGED, 8X16
  • 130A
    130G0614 BOLT-FLANGED, 6X14
    BOLT-FLANGED, 6X14
  • 130B
    130J0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 11053
    11053-1644 BRACKET, FUEL PUMP
    BRACKET, FUEL PUMP
  • 11053A
    11053-1711 BRACKET, BREATHER
    BRACKET, BREATHER
  • 14069
    14069-0003 BREATHER
    BREATHER
  • 49019
    49019-1055 FILTER-FUEL
    FILTER-FUEL
  • 49040
    49040-7001 PUMP-FUEL
    PUMP-FUEL
  • 92015
    92015-1339 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92037
    92037-1181 CLAMP, HOSE CLIP
    CLAMP, HOSE CLIP
  • 92037A
    92037-1505 CLAMP, TUBE
    CLAMP, TUBE
  • 92072
    92072-056 BAND, L=186
    BAND, L=186
  • 92075
    92075-1853 DAMPER, FUEL FILTER
    DAMPER, FUEL FILTER
  • 92190
    92190-1104 TUBE, 7.5X3.5X200
    TUBE, 7.5X3.5X200
  • 92192
    92192-0201 TUBE, 5.8X10.8X350
    TUBE, 5.8X10.8X350
  • 92192A
    92192-0204 TUBE, 5.8X10.8X270
    TUBE, 5.8X10.8X270
  • 92192B
    92192-0221 TUBE, PUMP-BREATHER
    TUBE, PUMP-BREATHER
  • 92192C
    92192-0222 TUBE, 5.8X10.8X515, GUARD
    TUBE, 5.8X10.8X515, GUARD
