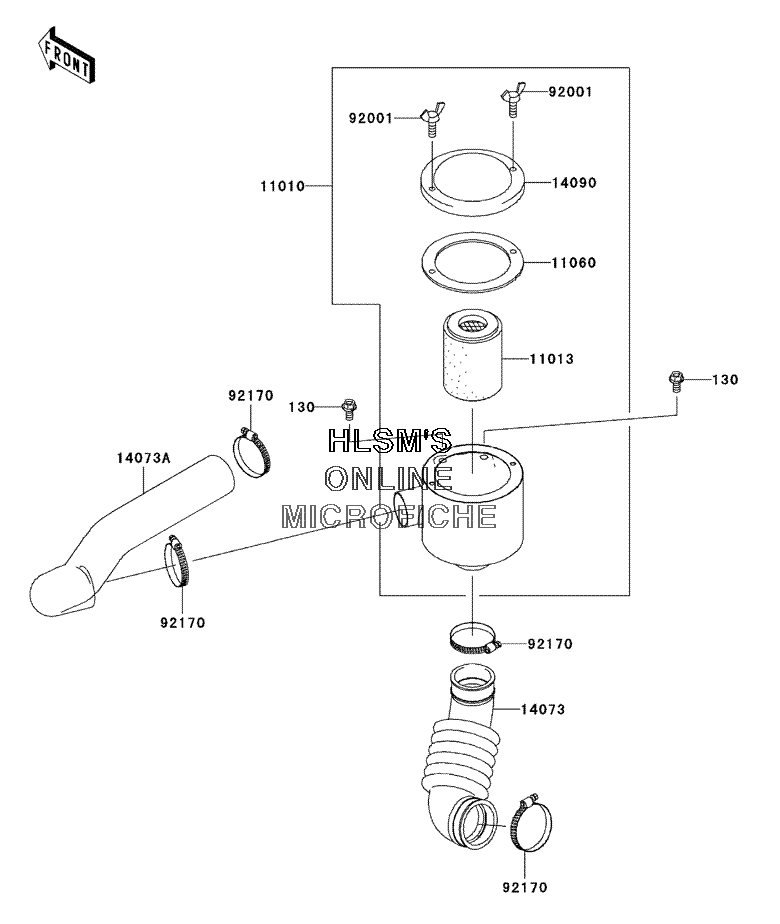

AIR CLEANER W/ BELT CONVERTER для Kawasaki MULE 610 4x4 (KAF400-A1) - 2005 года выпуска`
-
№АртикулНазвание
-
130130J0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1101011010-0055 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-1263 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106011060-1975 GASKET, AIR FILTER CASEGASKET, AIR FILTER CASE
-
1407314073-0061 DUCT, AIR FILTER-CASEDUCT, AIR FILTER-CASE
-
14073A14073-0080 DUCT, BAR-AIR FILTERDUCT, BAR-AIR FILTER
-
1409014090-1766 COVER, AIR FILTERCOVER, AIR FILTER
-
9200192001-1703 BOLT, WING, 6X15BOLT, WING, 6X15
-
9217092170-1674 CLAMPCLAMP
