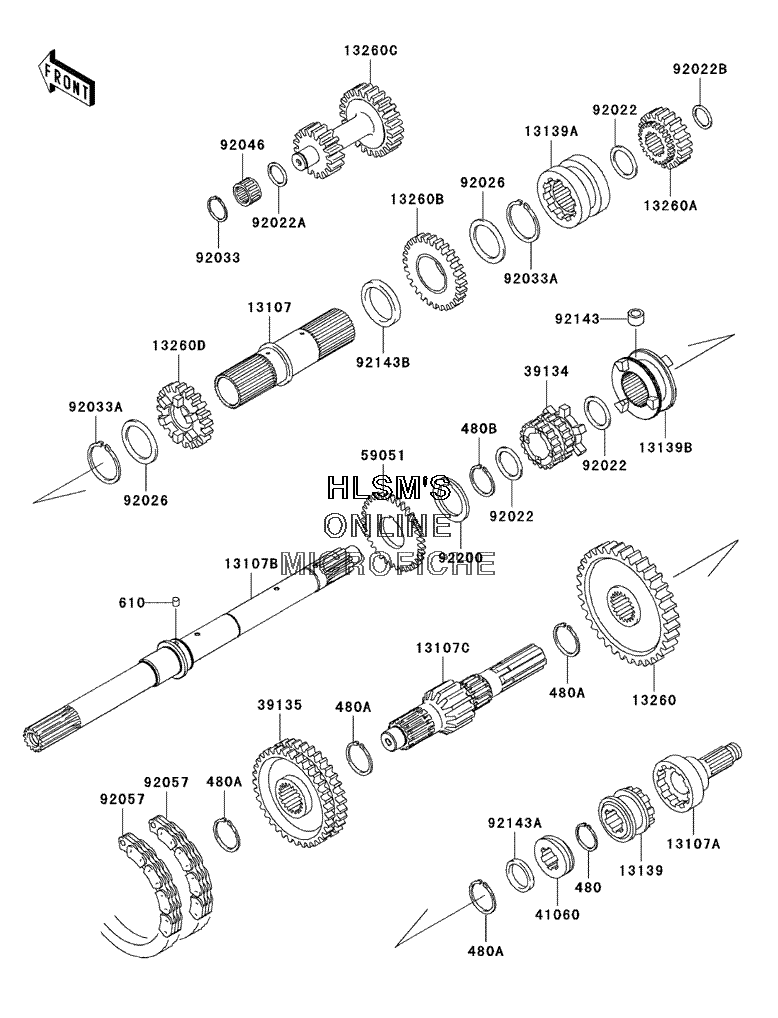

TRANSMISSION для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620-K1) - 2005 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2500 CIRCLIP, TYPE, C, 25MM
    CIRCLIP, TYPE, C, 25MM
  • 480A
    480J3000 CIRCLIP, TYPE, C, 30MM
    CIRCLIP, TYPE, C, 30MM
  • 480B
    480J3200 CIRCLIP, TYPE, C, 32MM
    CIRCLIP, TYPE, C, 32MM
  • 610
    610A0505 ROLLER
    ROLLER
  • 13107
    13107-1309 SHAFT, INPUT OUTER
    SHAFT, INPUT OUTER
  • 13107A
    13107-1313 SHAFT, 2WD/4WD
    SHAFT, 2WD/4WD
  • 13107B
    13107-1470 SHAFT, INPUT
    SHAFT, INPUT
  • 13107C
    13107-1517 SHAFT, OUTPUT (14 TEETH)
    SHAFT, OUTPUT (14 TEETH)
  • 13139
    13139-1068 SHIFTER, 2WD/4WD
    SHIFTER, 2WD/4WD
  • 13139A
    13139-1069 SHIFTER, SPEED, HI/LOW
    SHIFTER, SPEED, HI/LOW
  • 13139B
    13139-1072 SHIFTER, FRONT/REAR
    SHIFTER, FRONT/REAR
  • 13260
    13260-1288 GEAR, OUTPUT REVERSE (51 TEETH)
    GEAR, OUTPUT REVERSE (51 TEETH)
  • 13260A
    13260-1289 GEAR, INPUT REDUCTION (20 TEETH)
    GEAR, INPUT REDUCTION (20 TEETH)
  • 13260B
    13260-1290 GEAR, INPUT REDUCTION (28 TEETH)
    GEAR, INPUT REDUCTION (28 TEETH)
  • 13260C
    13260-1291 GEAR, REDUCTION (17/25 T TEETH)
    GEAR, REDUCTION (17/25 T TEETH)
  • 13260D
    13260-1462 GEAR, INPUT (28 TEETH)
    GEAR, INPUT (28 TEETH)
  • 39134
    39134-1055 SPROCKET, DRIVE (20 TEETH)
    SPROCKET, DRIVE (20 TEETH)
  • 39135
    39135-1055 SPROCKET, DRIVEN (41 TEETH)
    SPROCKET, DRIVEN (41 TEETH)
  • 41060
    41060-1147 GEAR, METER SCREW
    GEAR, METER SCREW
  • 59051
    59051-2097 GEAR, SPUR
    GEAR, SPUR
  • 92022
    92022-1109 WASHER, 25.3X33X1
    WASHER, 25.3X33X1
  • 92022A
    92022-255 WASHER, 17.3X28X1
    WASHER, 17.3X28X1
  • 92022B
    92022-270 WASHER, 17.3X30X1.4
    WASHER, 17.3X30X1.4
  • 92026
    92026-1375 SPACER, 35.3X44X0.5
    SPACER, 35.3X44X0.5
  • 92033
    92033-032 RING, SNAP
    RING, SNAP
  • 92033A
    92033-1269 RING, SNAP
    RING, SNAP
  • 92046
    92046-1184 BEARING, NEEDLE, K17X23X13.8
    BEARING, NEEDLE, K17X23X13.8
  • 92057
    92057-1364 CHAIN, REVERSE, 81RH2520, 54L
    CHAIN, REVERSE, 81RH2520, 54L
  • 92143
    92143-1497 COLLAR, 8X14X10.5
    COLLAR, 8X14X10.5
  • 92143A
    92143-1597 COLLAR, 25X32X4.5
    COLLAR, 25X32X4.5
  • 92143B
    92143-1599 COLLAR
    COLLAR
  • 92200
    92200-1155 WASHER, GOVERNOR GEAR
    WASHER, GOVERNOR GEAR
