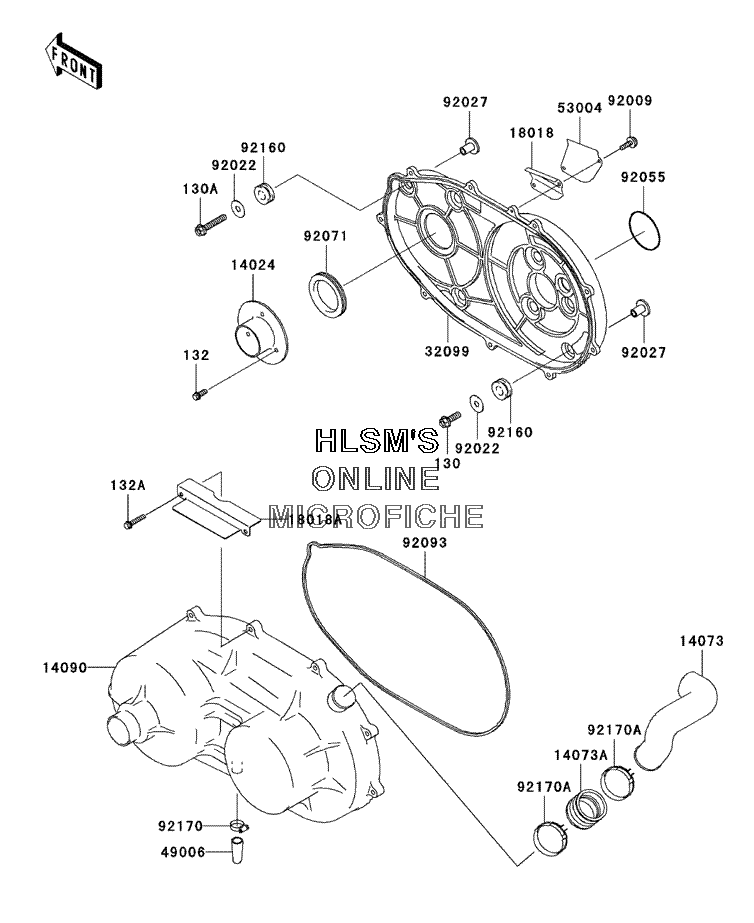

CONVERTER COVER для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620-K1) - 2005 года выпуска`
-
№АртикулНазвание
-
130130J0825 BOLT, FLANGED, 8X25 (BLACK)BOLT, FLANGED, 8X25 (BLACK)
-
130A130J0845 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
132132G0616 BOLT, FLANGED, SMALL, M6X16BOLT, FLANGED, SMALL, M6X16
-
132A132J0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1402414024-1554 COVER, FANCOVER, FAN
-
1407314073-0079 DUCTDUCT
-
14073A14073-1324 DUCTDUCT
-
1409014090-1239 COVER, BELT CONVERTERCOVER, BELT CONVERTER
-
1801818018-1092 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
18018A18018-1118 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
3209932099-1140 CASE, BELT CONVERTERCASE, BELT CONVERTER
-
4900649006-1351 BOOTBOOT
-
5300453004-1079 MAT, GUARD PLATEMAT, GUARD PLATE
-
9200992009-1332 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9202292022-101 WASHER, 8.5X26X0.8WASHER, 8.5X26X0.8
-
9202792027-4015 COLLARCOLLAR
-
9205592055-1395 O-RING, CRANKCASE SIDEO-RING, CRANKCASE SIDE
-
9207192071-1212 GROMMET, CONVERTER CASEGROMMET, CONVERTER CASE
-
9209392093-1526 SEALSEAL
-
9216092160-1012 DAMPERDAMPER
-
9217092170-1283 CLAMPCLAMP
-
92170A92170-1448 CLAMPCLAMP
