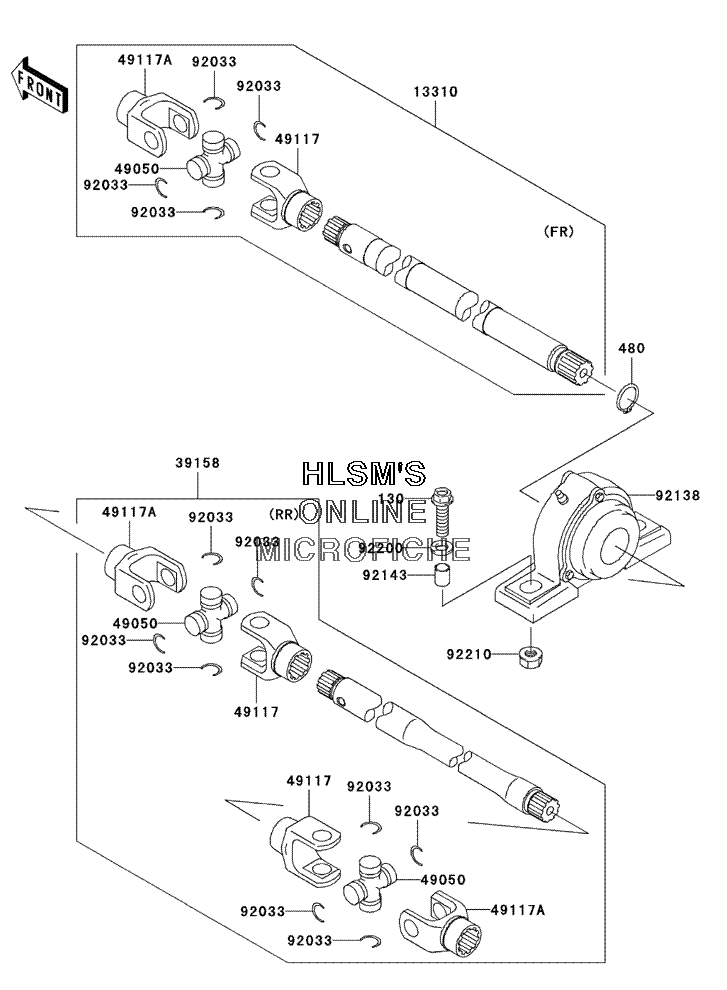

DRIVE SHAFT (PROPELLER) для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620-K1) - 2005 года выпуска
-
№АртикулНазвание
-
130130J1035 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
480480J2500 CIRCLIP, TYPE, C, 25MMCIRCLIP, TYPE, C, 25MM
-
1331013310-1027 SHAFT, ASSYSHAFT, ASSY
-
3915839158-7501 SHAFT, ASSY, DRIVE, REAR PROPELLERSHAFT, ASSY, DRIVE, REAR PROPELLER
-
4905049050-1075 SPIDERSPIDER
-
4911749117-1095 YOKE, DRIVEYOKE, DRIVE
-
49117A49117-1096 YOKE, DRIVEYOKE, DRIVE
-
9203392033-1030 RING, SNAPRING, SNAP
-
9213892138-1052 BEARING, COMPBEARING, COMP
-
9214392143-1634 COLLAR, 10.3X12.7X15COLLAR, 10.3X12.7X15
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
-
9221092210-1204 NUT, LOCK, 10MMNUT, LOCK, 10MM
