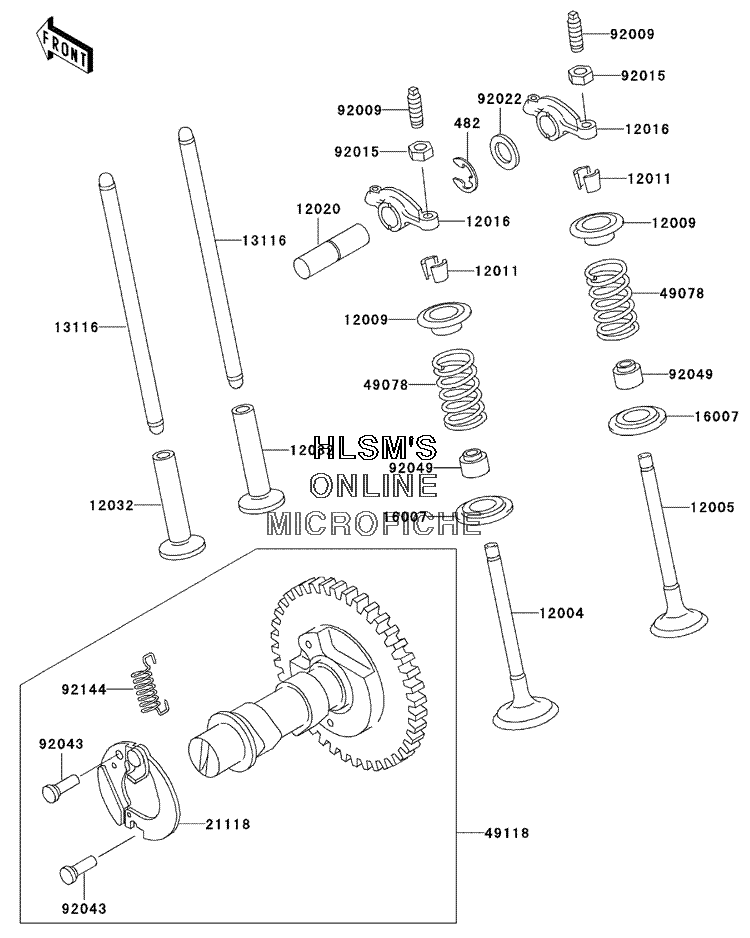

VALVE(S) W/ CAMSHAFT(S) для Kawasaki MULE 520 (KAF300-D1) - 2000 года выпуска`
-
№АртикулНазвание
-
482482J0100 CIRCLIP-TYPE-E,10MMCIRCLIP-TYPE-E,10MM
-
1200412004-2084 VALVE-INTAKEVALVE-INTAKE
-
1200512005-2077 VALVE-EXHAUSTVALVE-EXHAUST
-
1200912009-2060 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1201112011-2052 COLLETCOLLET
-
1201612016-2058 ARM-ROCKERARM-ROCKER
-
1202012020-2060 SHAFT-ROCKERSHAFT-ROCKER
-
1203212032-2060 TAPPETTAPPET
-
1311613116-2054 ROD-PUSHROD-PUSH
-
1600716007-2052 SEAT-SPRINGSEAT-SPRING
-
2111821118-2089 DECOMPRESSORDECOMPRESSOR
-
4907849078-2060 SPRING-ENGINE VALVESPRING-ENGINE VALVE
-
4911849118-2081 CAMSHAFT-COMPCAMSHAFT-COMP
-
9200992009-1109 SCREW,VALVE ADJUSTSCREW,VALVE ADJUST
-
9201592015-1137 NUT,VALVE ADJUST LOCKNUT,VALVE ADJUST LOCK
-
9202292022-2397 WASHER,12.1X19X1.6WASHER,12.1X19X1.6
-
9204392043-2113 PIN,5X17.6PIN,5X17.6
-
9204992049-2100 SEAL-OIL,VSB-7X12X9.7SEAL-OIL,VSB-7X12X9.7
-
9214492144-2323 SPRINGSPRING
