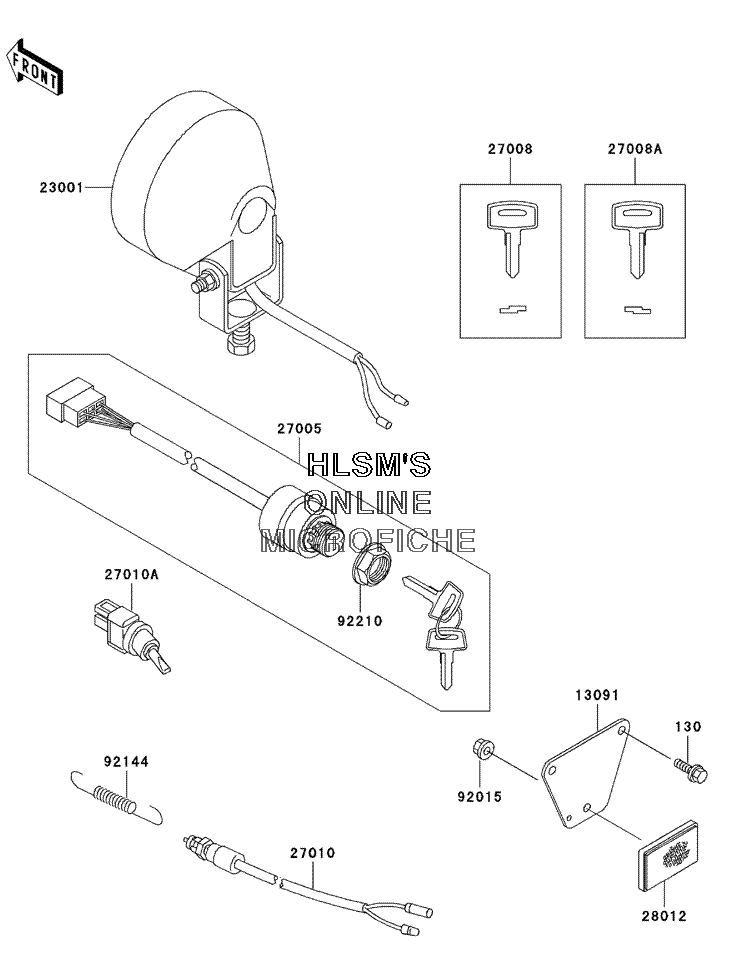

HEADLIGHT(S) W/ IGNITION SWITCH для Kawasaki MULE 520 (KAF300-D1) - 2000 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED,6X14,BLACKBOLT-FLANGED,6X14,BLACK
-
1309113091-1745 HOLDER,REFLECTORHOLDER,REFLECTOR
-
2300123001-1120 LAMP-ASSY-HEADLAMP-ASSY-HEAD
-
2700527005-1146 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1153 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
27008A27008-1157 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-1181 SWITCH,BRAKE LAMPSWITCH,BRAKE LAMP
-
27010A27010-1265 SWITCH,HEAD LAMPSWITCH,HEAD LAMP
-
2801228012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9201592015-1259 NUT,FLANGED,5MMNUT,FLANGED,5MM
-
9214492144-1143 SPRING,REAR BRAKE SWITCHSPRING,REAR BRAKE SWITCH
-
9221092210-1264 NUT,IGNITION SWITCHNUT,IGNITION SWITCH
