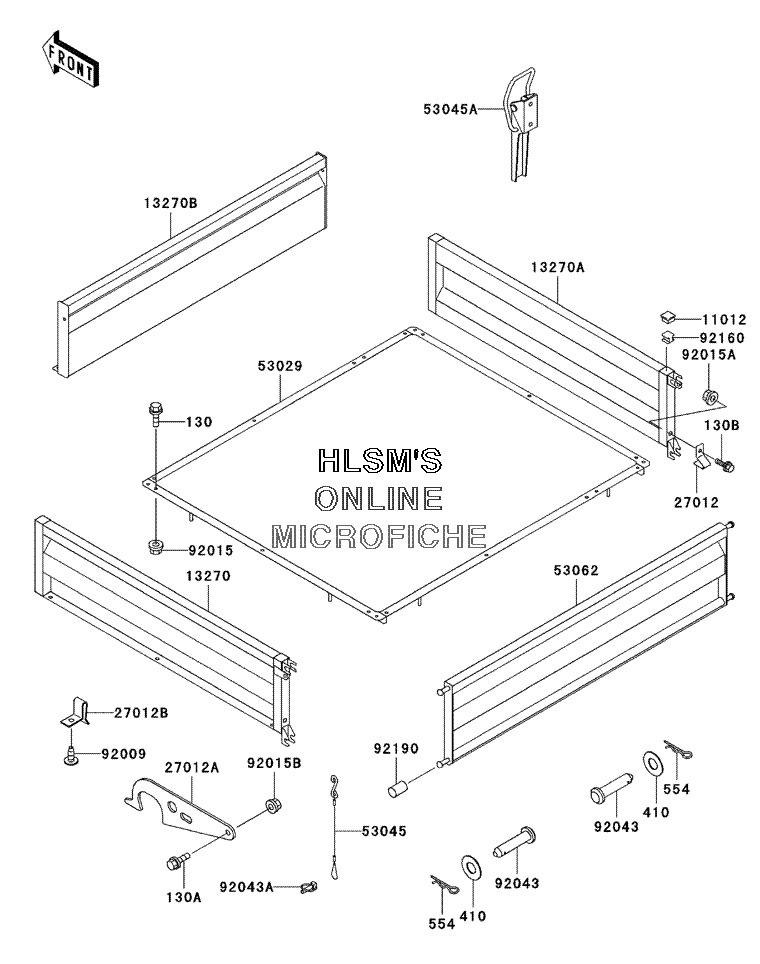

CARRIER(S) для Kawasaki MULE 520 (KAF300-D1) - 2000 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT-FLANGED,6X16,BLACKBOLT-FLANGED,6X16,BLACK
-
130A130J0640 BOLT-FLANGED,6X40,BLACKBOLT-FLANGED,6X40,BLACK
-
130B130J0850 BOLT-FLANGED,8X50BOLT-FLANGED,8X50
-
410410B1200 WASHER-PLAIN-SMALL,12MMWASHER-PLAIN-SMALL,12MM
-
554554A1200 PIN-SNAP,12MMPIN-SNAP,12MM
-
1101211012-1784 CAPCAP
-
1327013270-1090-B1 PLATE,CARRIER,SIDE,LH,F.REDPLATE,CARRIER,SIDE,LH,F.RED
-
13270A13270-1092-B1 PLATE,CARRIER,SIDE,RH,F.REDPLATE,CARRIER,SIDE,RH,F.RED
-
13270B13270-1677-B1 PLATE,CARRIER,FR,F.REDPLATE,CARRIER,FR,F.RED
-
2701227012-1406 HOOK,TAIL GATEHOOK,TAIL GATE
-
27012A27012-1444 HOOK,CARRIERHOOK,CARRIER
-
27012B27012-1445 HOOK,CARRIERHOOK,CARRIER
-
5302953029-1192-B1 CARRIER,F.REDCARRIER,F.RED
-
5304553045-1060 HOOK-ASSY,TALE GATEHOOK-ASSY,TALE GATE
-
53045A53045-1063 HOOK-ASSYHOOK-ASSY
-
5306253062-1005-B1 GATE-TAIL,F.REDGATE-TAIL,F.RED
-
9200992009-1166 SCREWSCREW
-
9201592015-1386 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015A92015-1408 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
92015B92015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9204392043-1451 PIN,12X54PIN,12X54
-
92043A92043-1490 PINPIN
-
9216092160-1191 DAMPERDAMPER
-
9219092190-1467 TUBE,8X10X15TUBE,8X10X15
