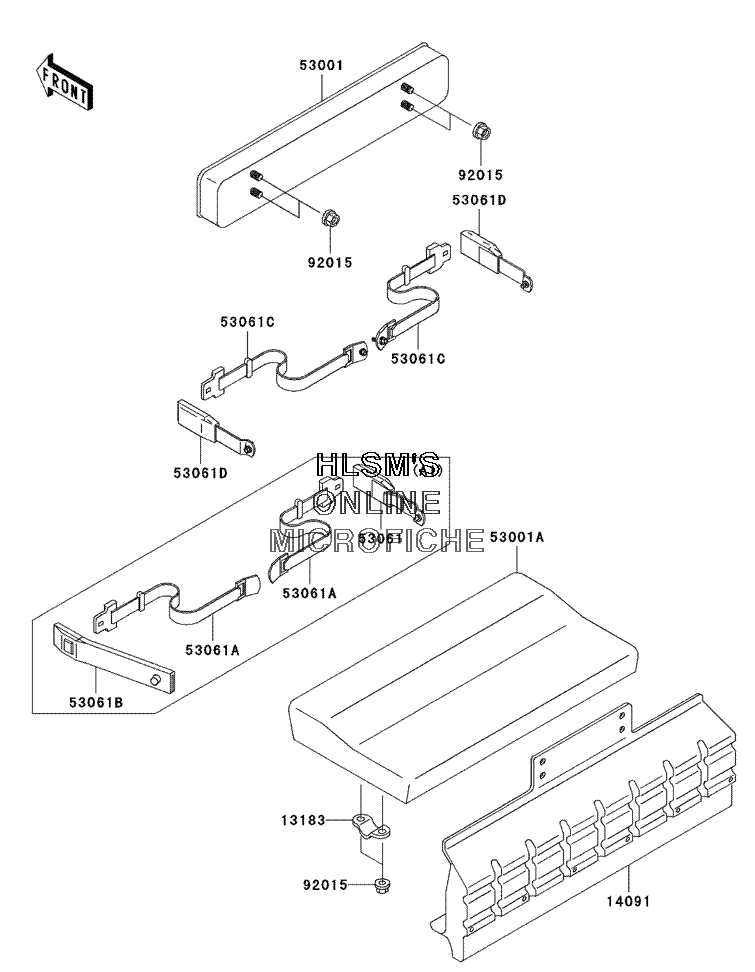

SEAT для Kawasaki MULE 2510 Diesel (KAF950-A1) - 2000 года выпуска
-
№АртикулНазвание
-
1318313183-1400 PLATE, SEATPLATE, SEAT
-
1409114091-1155 COVER, SEAT, BACKCOVER, SEAT, BACK
-
5300153001-1584-PA SEAT-ASSY, BACK, GRAYSEAT-ASSY, BACK, GRAY
-
53001A53001-1920-PA SEAT-ASSY, CUSHION, GRAYSEAT-ASSY, CUSHION, GRAY
-
5306153061-1004 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
53061A53061-1005 BELT-SEAT, LATCH PLATEBELT-SEAT, LATCH PLATE
-
53061B53061-1006 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
9201592015-1696 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
