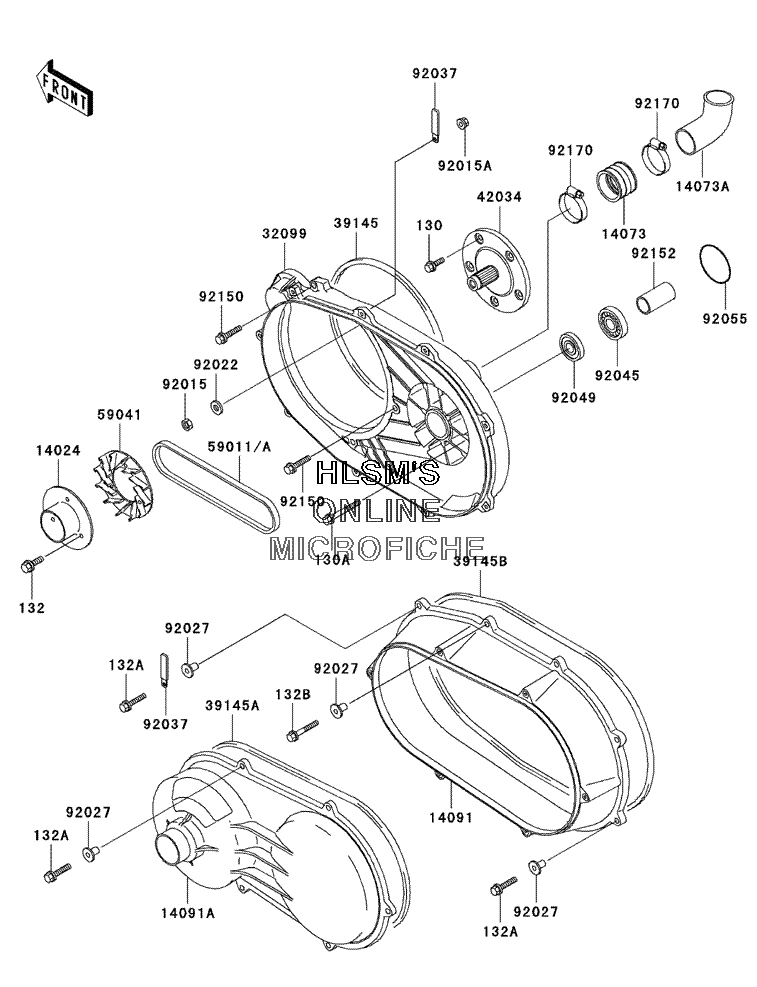

CONVERTER COVER W/DRIVE BELT для Kawasaki MULE 2510 Diesel (KAF950-A1) - 2000 года выпуска

  • №
    Артикул
    Название
  • 130
    130T0820 BOLT-FLANGED, 8X20
    BOLT-FLANGED, 8X20
  • 130A
    130Z0855 BOLT-FLANGED
    BOLT-FLANGED
  • 132
    132G0630 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132A
    132J0630 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132B
    132J0635 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 14024
    14024-1554 COVER, FAN
    COVER, FAN
  • 14073
    14073-1324 DUCT
    DUCT
  • 14073A
    14073-1780 DUCT, CONVERTER OUTLET
    DUCT, CONVERTER OUTLET
  • 14091
    14091-1134 COVER, MIDDLE
    COVER, MIDDLE
  • 14091A
    14091-1187 COVER, BELT CONVERTER
    COVER, BELT CONVERTER
  • 32099
    32099-1215 CASE, BELT CONVERTER
    CASE, BELT CONVERTER
  • 39145
    39145-1115 TRIM-SEAL, BELT CONVERTER CASE
    TRIM-SEAL, BELT CONVERTER CASE
  • 39145A
    39145-1117 TRIM-SEAL, MIDDLE COVER
    TRIM-SEAL, MIDDLE COVER
  • 39145B
    39145-1126 TRIM-SEAL, BELT CONVERTER
    TRIM-SEAL, BELT CONVERTER
  • 42034
    42034-1160 COUPLING
    COUPLING
  • 59011
    59011-1074 BELT, CONVERTER
    BELT, CONVERTER
  • 59041
    59041-1059 FAN
    FAN
  • 92015
    92015-1189 NUT, LOCK, 10MM (BLACK)
    NUT, LOCK, 10MM (BLACK)
  • 92015A
    92015-1675 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92022
    92022-1876 WASHER, 10.5X18X2.5
    WASHER, 10.5X18X2.5
  • 92027
    92027-1920 COLLAR, L=14.1
    COLLAR, L=14.1
  • 92037
    92037-1069 CLAMP, WIRING HARNESS, L=60
    CLAMP, WIRING HARNESS, L=60
  • 92045
    92045-1378 BEARING-BALL, 62/28LLB
    BEARING-BALL, 62/28LLB
  • 92049
    92049-1297 SEAL-OIL, TC28X47X7
    SEAL-OIL, TC28X47X7
  • 92055
    92055-1327 RING-O, 67.6X3.5
    RING-O, 67.6X3.5
  • 92150
    92150-1103 BOLT, FLANGED, 8X28
    BOLT, FLANGED, 8X28
  • 92152
    92152-1177 COLLAR, 28.1X34X63.6
    COLLAR, 28.1X34X63.6
  • 92170
    92170-1448 CLAMP
    CLAMP
