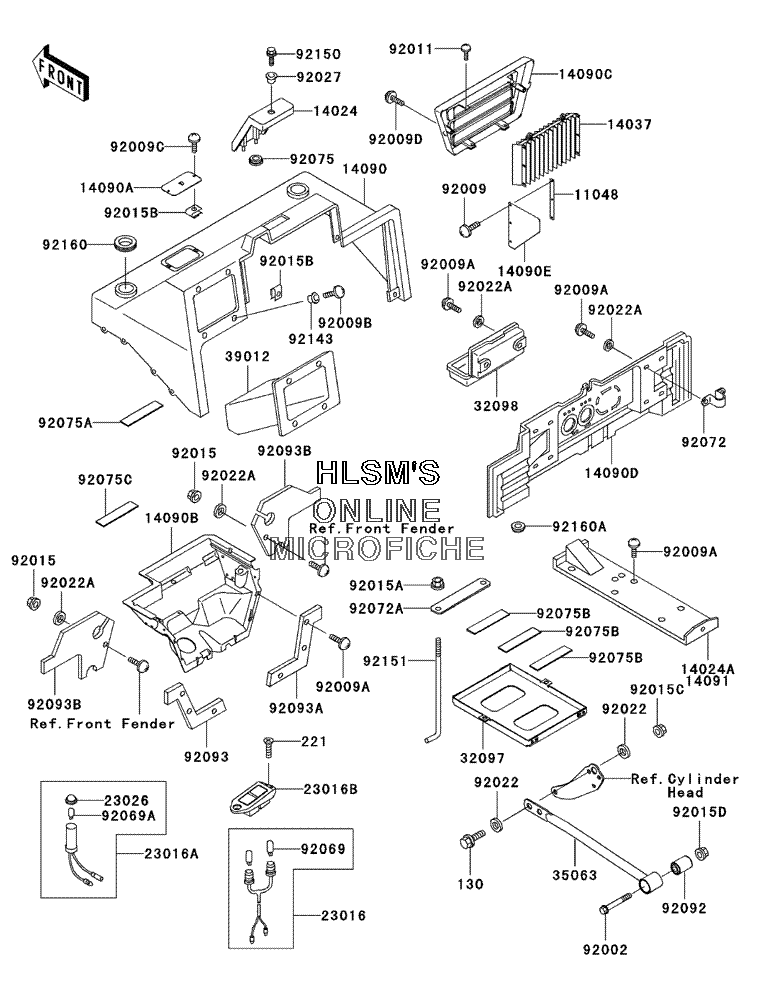

FRAME FITTINGS (COVER) для Kawasaki MULE 2510 Diesel (KAF950-A1) - 2000 года выпуска
-
№АртикулНазвание
-
1104811048-1085 BRACKET, SCREENBRACKET, SCREEN
-
1402414024-1788-6A COVER, MAINTENANCE (H.GREEN)COVER, MAINTENANCE (H.GREEN)
-
14024A14024-1791 COVER, FLOOR, CENTERCOVER, FLOOR, CENTER
-
1403714037-1177 SCREENSCREEN
-
1409014090-1240-6A COVER, UPPER (H.GREEN)COVER, UPPER (H.GREEN)
-
14090A14090-1241-B9 COVER, RADIATOR CAP (H.GREEN)COVER, RADIATOR CAP (H.GREEN)
-
14090B14090-1242 COVER, LOWERCOVER, LOWER
-
14090C14090-1243-6A COVER, FRONT GRILL (H.GREEN)COVER, FRONT GRILL (H.GREEN)
-
14090D14090-1271 COVER, SEAT UNDERCOVER, SEAT UNDER
-
14090E14090-1326 COVER, SCREENCOVER, SCREEN
-
2301623016-1083 LAMP-ASSY, NEUTRAL AND REVERSELAMP-ASSY, NEUTRAL AND REVERSE
-
23016A23016-1128 LAMP-ASSY, TEMPLAMP-ASSY, TEMP
-
23016B23016-1177 LAMP-ASSYLAMP-ASSY
-
2302623026-1157 LENS, TEMP LAMPLENS, TEMP LAMP
-
3209732097-1182 CASE-BATTERYCASE-BATTERY
-
3209832098-1052 CASE-TOOLCASE-TOOL
-
3506335063-1107 STAYSTAY
-
3901239012-1053 CASE-STORAGECASE-STORAGE
-
9200292002-1757 BOLT, ROD, 12MMBOLT, ROD, 12MM
-
9200992009-1111 SCREW, 6X18, WHITESCREW, 6X18, WHITE
-
92009A92009-1166 SCREWSCREW
-
92009B92009-1181 SCREW, 6X18 (BLACK)SCREW, 6X18 (BLACK)
-
92009C92009-1288 SCREW, 6X14SCREW, 6X14
-
92009D92009-1353 SCREW, 6X55SCREW, 6X55
-
9201192011-562 SCREWSCREW
-
9201592015-1386 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015B92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
92015C92015-1696 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
92015D92015-1706 NUT, 12MMNUT, 12MM
-
9202292022-1317 WASHER, 8.5X20X1.6 (BLACK)WASHER, 8.5X20X1.6 (BLACK)
-
92022A92022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
9202792027-1920 COLLAR, L=14.1COLLAR, L=14.1
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
92069A92069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
9207292072-1252 BANDBAND
-
92072A92072-1388 BAND, BATTERYBAND, BATTERY
-
9207592075-1067 DAMPERDAMPER
-
92075A92075-1658 DAMPERDAMPER
-
92075B92075-1829 DAMPERDAMPER
-
130130J0822 BOLT-FLANGEDBOLT-FLANGED
-
221221C0616 SCREW-CSK-CROSSCREW-CSK-CROS
-
92075C92075-1903 DAMPER, BATTERY BANDDAMPER, BATTERY BAND
-
9209292092-005 BUSHING-RUBBERBUSHING-RUBBER
-
9209392093-1293 SEAL, FRONT FENDER (LEFT)SEAL, FRONT FENDER (LEFT)
-
92093A92093-1294 SEAL, FRONT FENDER (RIGHT)SEAL, FRONT FENDER (RIGHT)
-
92093B92093-1295 SEAL, LOWER COVERSEAL, LOWER COVER
-
9214392143-1087 COLLARCOLLAR
-
9215092150-1360 BOLT, 6X25BOLT, 6X25
-
9215192151-1728 BOLTBOLT
-
9216092160-1142 DAMPERDAMPER
-
92160A92160-1148 DAMPERDAMPER
