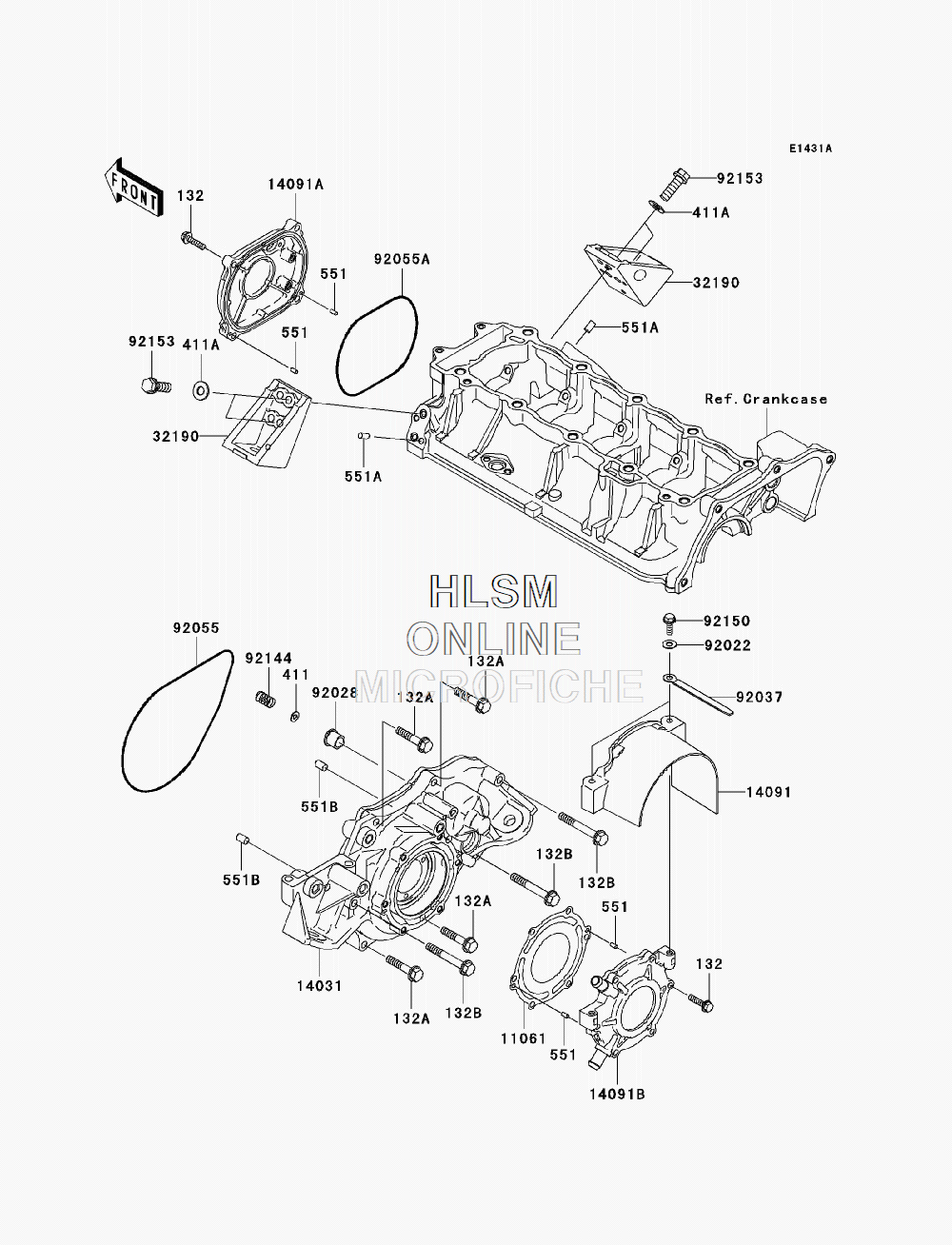

ENGINE COVER(S) для Kawasaki STX-15F (JT1500A7F) - 2007 года выпуска`
-
№АртикулНазвание
-
132132BD0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
132A132BD0840 BOLT-FLANGED-SMALL,8X40BOLT-FLANGED-SMALL,8X40
-
132B132BD0860 BOLT-FLANGED-SMALL,8X60BOLT-FLANGED-SMALL,8X60
-
411411S0500 WASHER-PLAIN,5MMWASHER-PLAIN,5MM
-
411A411S0800 WASHER-PLAIN,8MMWASHER-PLAIN,8MM
-
551551R0408 PIN-DOWELPIN-DOWEL
-
551A551R0612 PIN-DOWELPIN-DOWEL
-
551B551R0812 PIN-DOWELPIN-DOWEL
-
1106111061-3709 GASKET,OUTPUT COVERGASKET,OUTPUT COVER
-
1403114031-3737 COVER-GENERATORCOVER-GENERATOR
-
1409114091-3749 COVER,COUPLINGCOVER,COUPLING
-
14091A14091-3763 COVER,PULSCOVER,PULS
-
14091B14091-3776 COVER,OUTPUTCOVER,OUTPUT
-
3219032190-3703 BRACKET-ENGINEBRACKET-ENGINE
-
9202292022-3710 WASHER,6.5X20X1.5WASHER,6.5X20X1.5
-
9202892028-3718 BUSHINGBUSHING
-
9203792037-3736 CLAMP,L=100CLAMP,L=100
-
9205592055-3761 RING-O,196X3RING-O,196X3
-
92055A92055-3762 RING-O,120X3RING-O,120X3
-
9214492144-3728 SPRINGSPRING
-
9215092150-3729 BOLT,6X18BOLT,6X18
-
9215392153-3722 BOLT,FLANGED,8X30BOLT,FLANGED,8X30
