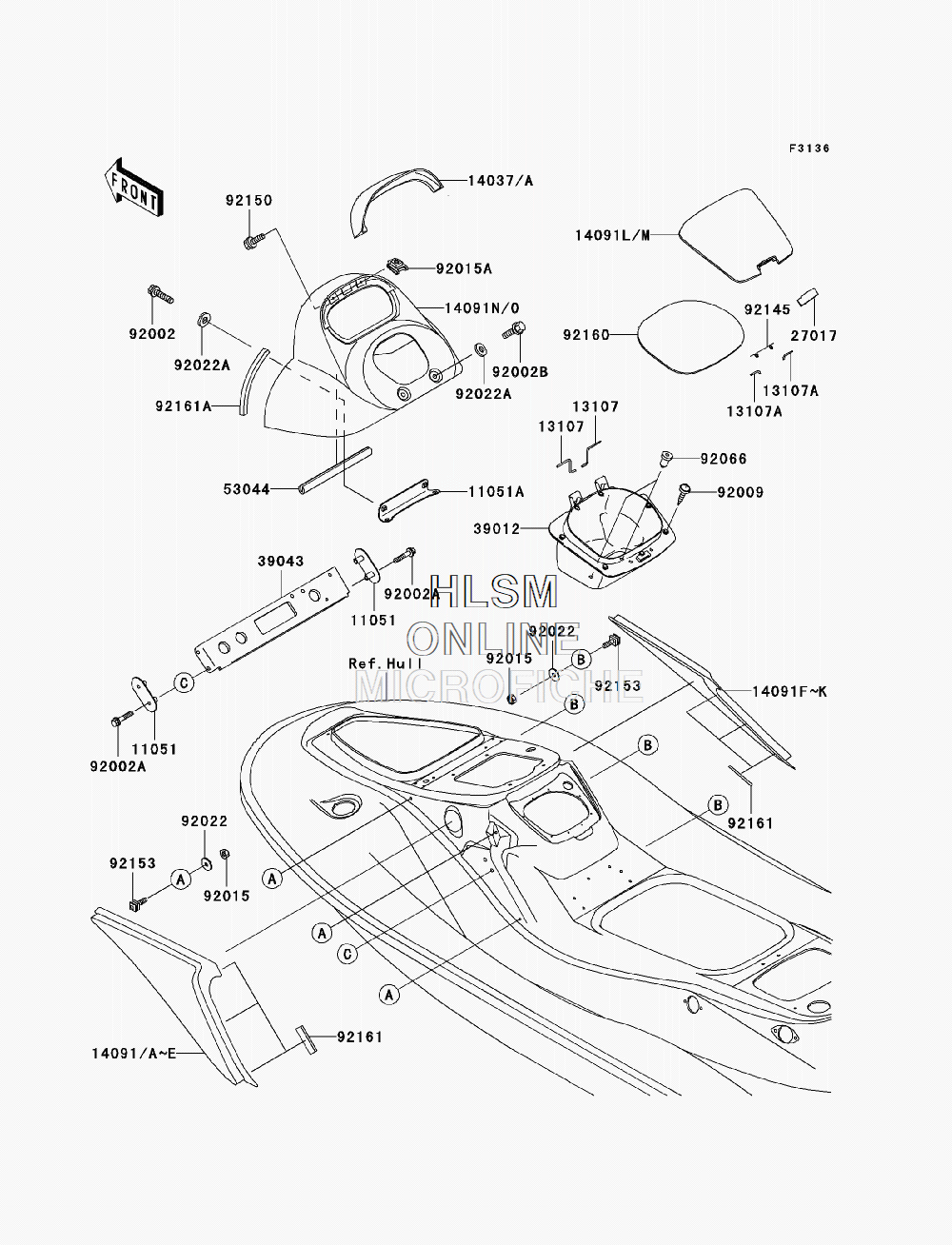

HULL MIDDLE FITTINGS для Kawasaki STX-15F (JT1500A7F) - 2007 года выпуска
-
№АртикулНазвание
-
1105111051-3782 BRACKET,CROSSMEMBERBRACKET,CROSSMEMBER
-
11051A11051-3811 BRACKETBRACKET
-
1310713107-3761 SHAFTSHAFT
-
13107A13107-3769 SHAFTSHAFT
-
14037A14037-3709-378 SCREEN,METER,F.S.BLACKSCREEN,METER,F.S.BLACK
-
14091B14091-3708-TK COVER,SIDE, LEFT HAND,M.N.BLUECOVER,SIDE, LEFT HAND,M.N.BLUE
-
14091H14091-3709-TK COVER,SIDE, RIGHT HAND,M.N.BLUECOVER,SIDE, RIGHT HAND,M.N.BLUE
-
14091M14091-3710-8C COVER,CENTER STORAGE,J.WHITECOVER,CENTER STORAGE,J.WHITE
-
14091O14091-3770-378 COVER,HANDLE,F.S.BLACKCOVER,HANDLE,F.S.BLACK
-
2701727017-3725 LOCK,CENTER STORAGELOCK,CENTER STORAGE
-
3901239012-3735 CASE-STORAGECASE-STORAGE
-
3904339043-3703 CROSSMEMBER-COMPCROSSMEMBER-COMP
-
5304453044-3755 TRIM,L=180TRIM,L=180
-
9200292002-3714 BOLT,6X25BOLT,6X25
-
92002A92002-3726 BOLT,6X30BOLT,6X30
-
92002B92002-3763 BOLT,6X12BOLT,6X12
-
9200992009-3716 SCREW,TAPPING,5X20SCREW,TAPPING,5X20
-
9201592015-3798 NUT,LOCK,5MMNUT,LOCK,5MM
-
92015A92015-3830 NUT,CLIP,5MMNUT,CLIP,5MM
-
9202292022-3041 WASHER,5X16X1.5WASHER,5X16X1.5
-
92022A92022-3710 WASHER,6.5X20X1.5WASHER,6.5X20X1.5
-
9206692066-3773 PLUGPLUG
-
9214592145-3711 SPRINGSPRING
-
9215092150-3778 BOLT,5X16BOLT,5X16
-
9215392153-3703 BOLT,5MMBOLT,5MM
-
9216092160-3933 DAMPERDAMPER
-
9216192161-3756 DAMPERDAMPER
-
92161A92161-3757 DAMPERDAMPER
