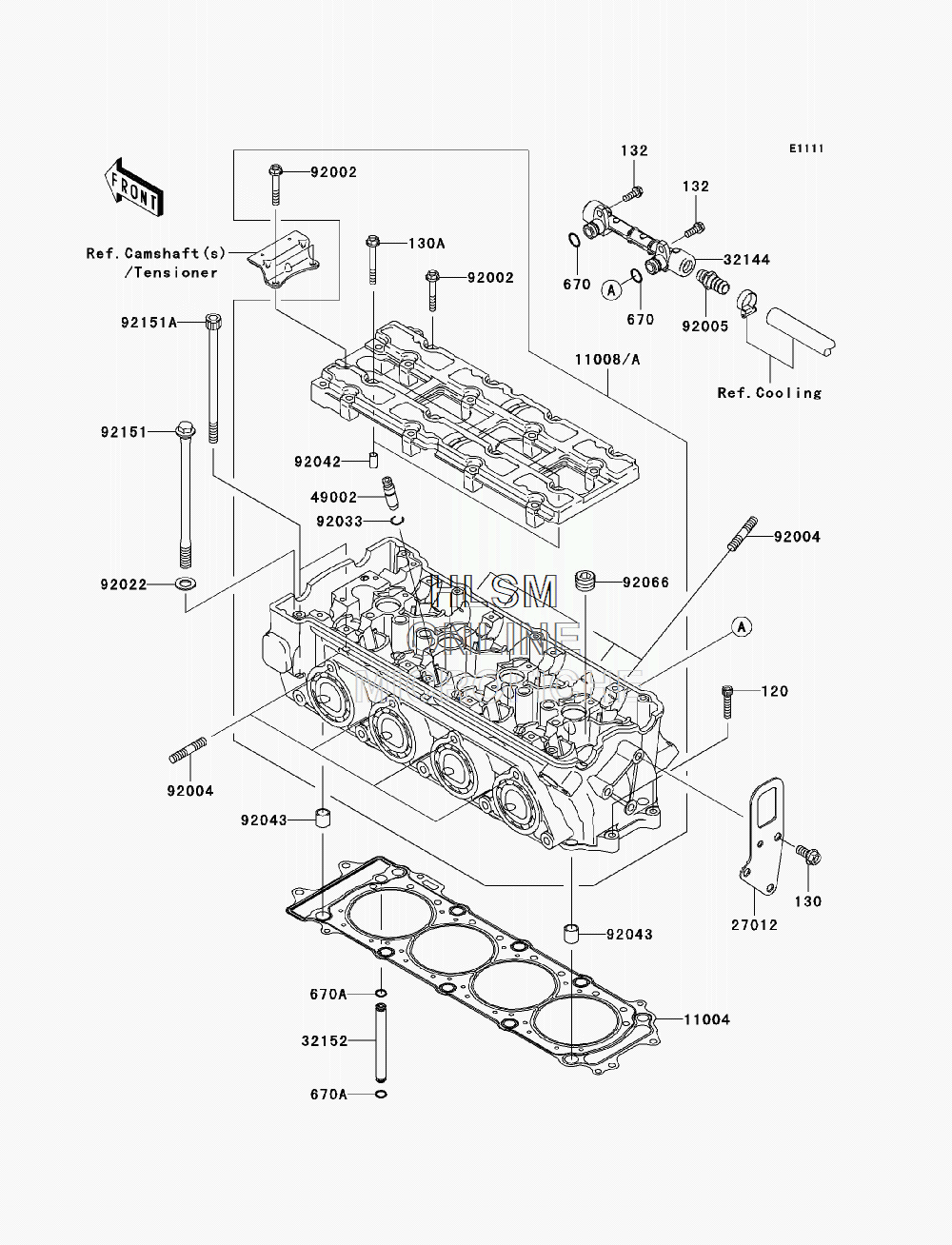

CYLINDER HEAD для Kawasaki STX-15F (JT1500A7F) - 2007 года выпуска
-
№АртикулНазвание
-
120120CD0630 BOLT-SOCKET,6X30BOLT-SOCKET,6X30
-
130130BD0818 BOLT-FLANGED,8X18BOLT-FLANGED,8X18
-
130A130CD0650 BOLT-FLANGED,6X50BOLT-FLANGED,6X50
-
132132BD0616 BOLT-FLANGED-SMALL,6X16BOLT-FLANGED-SMALL,6X16
-
670670B2012 O RING,12MMO RING,12MM
-
670A670D1507 O RING,7MMO RING,7MM
-
1100411004-3721 GASKET-HEADGASKET-HEAD
-
1100811008-3705 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
2701227012-3856 HOOK,ENGINE, REARHOOK,ENGINE, REAR
-
3214432144-3709 PIPE-ASSYPIPE-ASSY
-
3215232152-1544 PIPE,OILPIPE,OIL
-
4900249002-1140 GUIDE-VALVEGUIDE-VALVE
-
9200292002-1756 BOLT,6X40BOLT,6X40
-
9200492004-3743 STUD,8X30STUD,8X30
-
9200592005-3714 FITTINGFITTING
-
9202292022-1720 WASHER,11.5X20.5X1.6WASHER,11.5X20.5X1.6
-
9203392033-1247 RING-SNAPRING-SNAP
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9204392043-1593 PIN,14X14PIN,14X14
-
9206692066-0002 PLUG,PT1/2X12.5PLUG,PT1/2X12.5
-
9215192151-1513 BOLT,11X168BOLT,11X168
-
92151A92151-1804 BOLT,SOCKET,7X120BOLT,SOCKET,7X120
