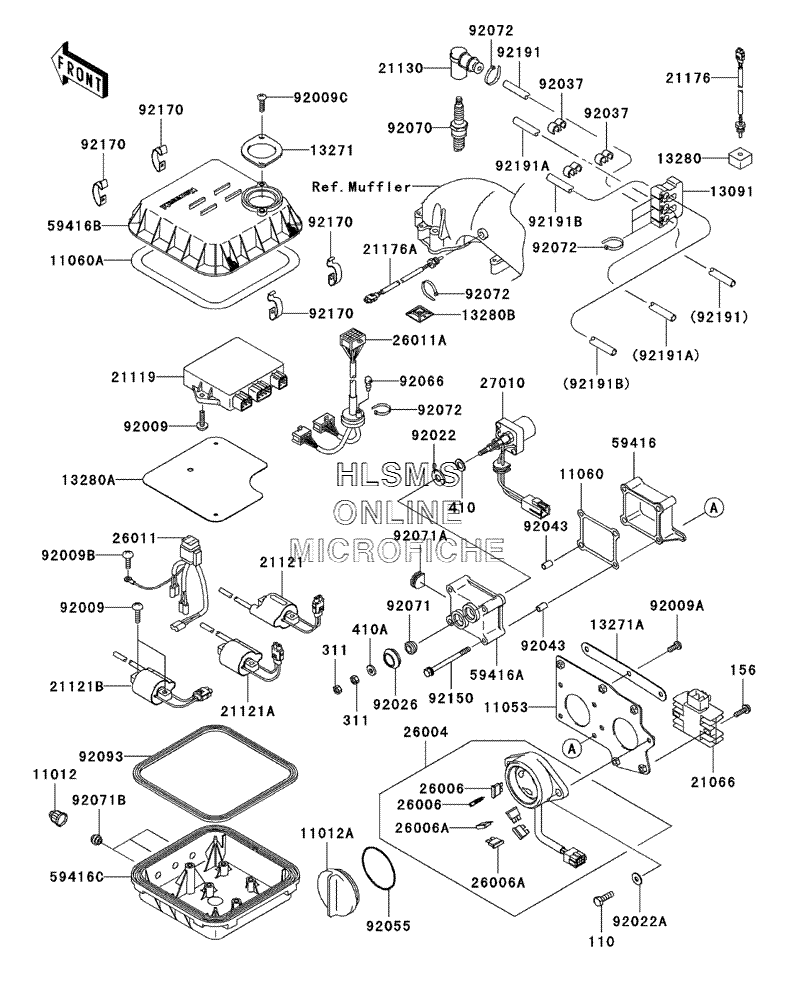

IGNITION SYSTEM для Kawasaki 1200 STX-R (JT1200-C1) - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-3005 CAPCAP
-
11012A11012-3791 CAPCAP
-
1105311053-3721 BRACKETBRACKET
-
1106011060-3709 GASKETGASKET
-
11060A11060-3805 GASKET, ELECTRIC CASEGASKET, ELECTRIC CASE
-
1309113091-3785 HOLDERHOLDER
-
1327113271-3707 PLATEPLATE
-
13271A13271-3842 PLATEPLATE
-
1328013280-3711 HOLDERHOLDER
-
13280A13280-3712 HOLDERHOLDER
-
13280B13280-3739 HOLDERHOLDER
-
2106621066-3716 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
2111921119-3765 IGNITERIGNITER
-
2112121121-3714 COIL, IGNITION, #1COIL, IGNITION, #1
-
21121A21121-3715 COIL, IGNITION, #2COIL, IGNITION, #2
-
21121B21121-3716 COIL, IGNITION, #3COIL, IGNITION, #3
-
2113021130-3706 CAP, SPARK PLUGCAP, SPARK PLUG
-
2117621176-3730 SENSOR, INTAKE AIR TEMPSENSOR, INTAKE AIR TEMP
-
21176A21176-3731 SENSOR, COOLING WATER TEMPSENSOR, COOLING WATER TEMP
-
2600426004-3728 FUSE, ASSY.FUSE, ASSY.
-
2600626006-1007 FUSE, 10A, RFUSE, 10A, R
-
26006A26006-1060 FUSE, 3A, PFUSE, 3A, P
-
2601126011-3857 WIRE, LEADWIRE, LEAD
-
26011A26011-3900 WIRE, LEADWIRE, LEAD
-
2701027010-3777 SWITCHSWITCH
-
5941659416-3710 CASE, ELECTRICCASE, ELECTRIC
-
59416A59416-3711 CASE, ELECTRICCASE, ELECTRIC
-
59416B59416-3749 CASE, ELECTRIC, UPPERCASE, ELECTRIC, UPPER
-
59416C59416-3750 CASE, ELECTRIC, LOWERCASE, ELECTRIC, LOWER
-
9200992009-1640 SCREW, TAPPING, 6X25SCREW, TAPPING, 6X25
-
92009A92009-3830 SCREW, 6X15SCREW, 6X15
-
92009B92009-3845 SCREW, 6X14SCREW, 6X14
-
92009C92009-3846 SCREW, 6X18SCREW, 6X18
-
9202292022-3035 WASHERWASHER
-
92022A92022-567 WASHERWASHER
-
9202692026-3703 SPACERSPACER
-
9203792037-1603 CLAMP, HOSECLAMP, HOSE
-
9204392043-3715 PINPIN
-
9205592055-1292 O-RINGO-RING
-
9206692066-1347 PLUGPLUG
-
110110R0620 BOLT, 6X20BOLT, 6X20
-
156156R0620 BOLT, WP, 6X20BOLT, WP, 6X20
-
311311R0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
410410B1000 WASHER, PLAIN, SMALL, 10MMWASHER, PLAIN, SMALL, 10MM
-
410A410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
9207092070-1157 PLUG, SPARK, BR9ES (NGK) SOLIDPLUG, SPARK, BR9ES (NGK) SOLID
-
9207192071-3004 GROMMETGROMMET
-
92071A92071-3837 GROMMETGROMMET
-
92071B92071-527 GROMMETGROMMET
-
9207292072-3871 BAND, L=99BAND, L=99
-
9209392093-3754 SEALSEAL
-
9215092150-3711 BOLT, 6X80BOLT, 6X80
-
9217092170-3765 CLAMPCLAMP
-
9219192191-3847 TUBE, 8X10X690TUBE, 8X10X690
-
92191A92191-3848 TUBE, 8X10X570TUBE, 8X10X570
-
92191B92191-3849 TUBE, 8X10X500TUBE, 8X10X500
