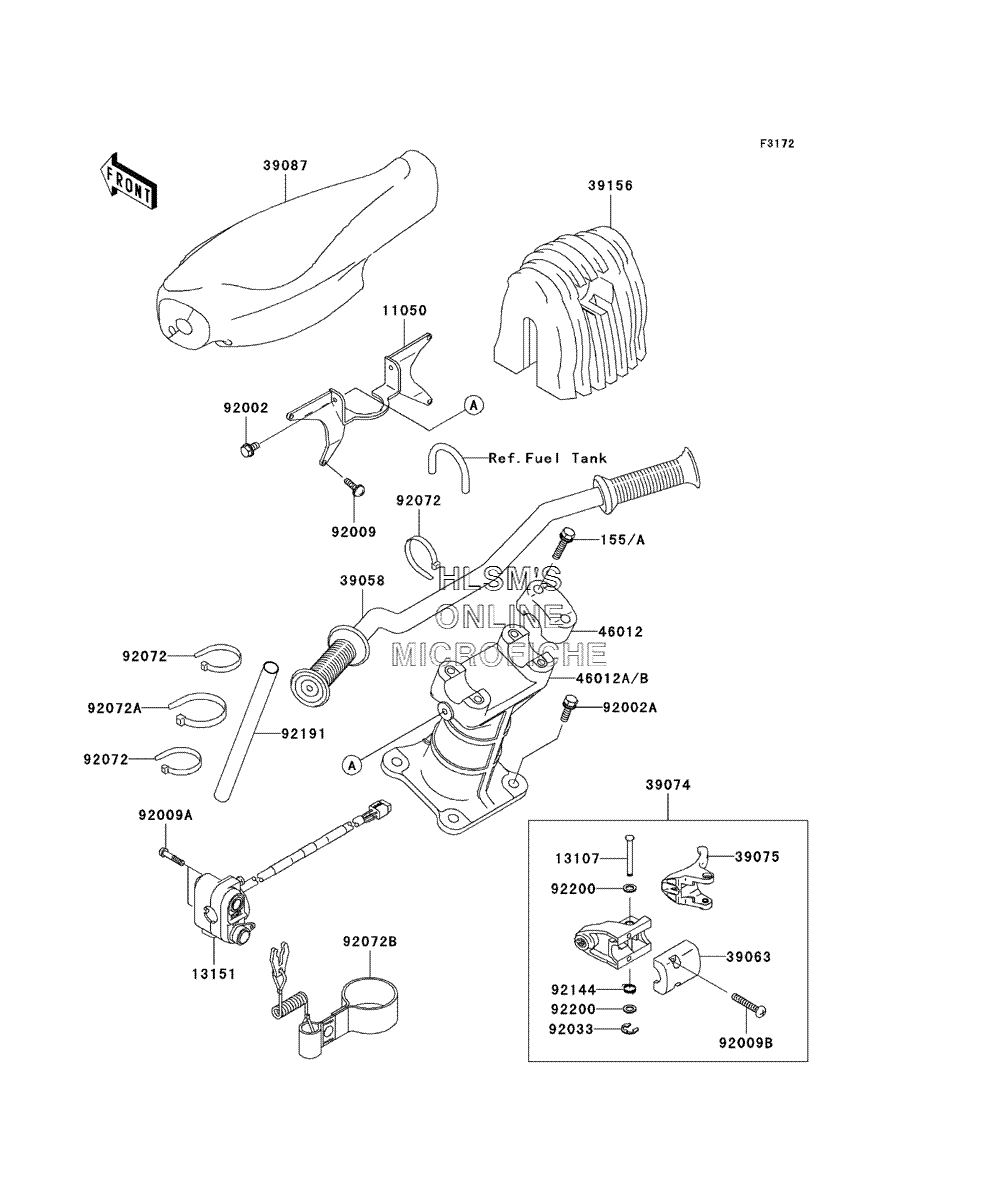

HANDLEBAR для Kawasaki 1200 STX-R (JT1200-C1) - 2004 года выпуска
-
№АртикулНазвание
-
155155R0835 BOLT, WSP, SMALL, 8X35BOLT, WSP, SMALL, 8X35
-
1105011050-3766 BRACKET, HANDLE PADBRACKET, HANDLE PAD
-
1310713107-3740 SHAFTSHAFT
-
1315113151-3722 SWITCH, COMP, STOP AND STARTSWITCH, COMP, STOP AND START
-
3905839058-3735-6Z HANDLE, COMP (F.BLACK)HANDLE, COMP (F.BLACK)
-
3906339063-3727 HOUSING, CONTROLHOUSING, CONTROL
-
3907439074-3726 LEVER, ASSY., THROTTLELEVER, ASSY., THROTTLE
-
3907539075-3714 LEVER, THROTTLELEVER, THROTTLE
-
3908739087-3727-6Z PAD, HANDLE (F.BLACK)PAD, HANDLE (F.BLACK)
-
3915639156-3832 PAD, HANDLE, INNERPAD, HANDLE, INNER
-
4601246012-3720 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
46012A46012-3722 HOLDER, HANDLE, LOWERHOLDER, HANDLE, LOWER
-
9200292002-3763 BOLT, 6X12BOLT, 6X12
-
92002A92002-3774 BOLT, 8X25BOLT, 8X25
-
9200992009-3781 SCREW, 6X20SCREW, 6X20
-
92009A92009-3836 SCREW, 5X30SCREW, 5X30
-
92009B92009-3837 SCREW, 6X30SCREW, 6X30
-
9203392033-3723 RING, SNAPRING, SNAP
-
9207292072-1239 BAND, L=188BAND, L=188
-
92072A92072-3509 BAND, L=292.1BAND, L=292.1
-
92072B92072-3816 BAND, TETHER SWITCHBAND, TETHER SWITCH
-
9214492144-3749 SPRINGSPRING
-
9219192191-3792 TUBE, 22X24X200TUBE, 22X24X200
-
9220092200-3738 WASHERWASHER
