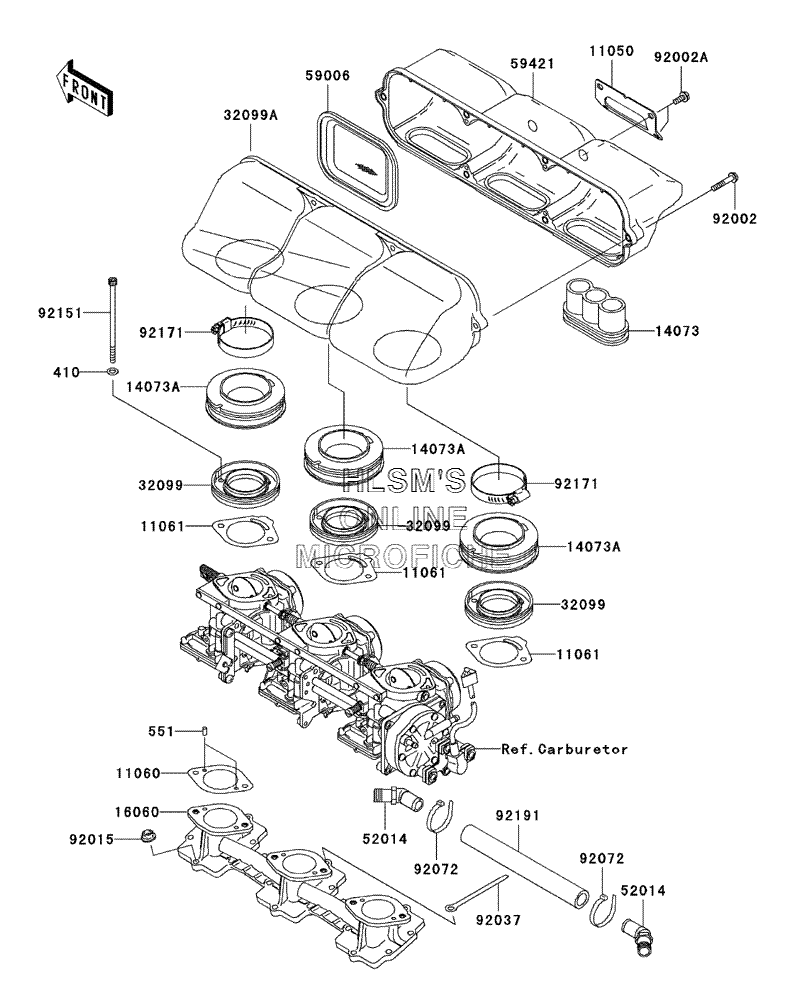

FLAME ARRESTER для Kawasaki 1200 STX-R (JT1200-C1) - 2004 года выпуска
-
№АртикулНазвание
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
551551R0408 PIN, DOWELPIN, DOWEL
-
1105011050-3754 BRACKETBRACKET
-
1106011060-3788 GASKETGASKET
-
1106111061-3704 GASKET, CARBURETORGASKET, CARBURETOR
-
1407314073-3776 DUCTDUCT
-
14073A14073-3785 DUCTDUCT
-
1606016060-3708 PIPE, INTAKEPIPE, INTAKE
-
3209932099-3831 CASECASE
-
32099A32099-3843 CASE, ARRESTERCASE, ARRESTER
-
5201452014-3714 ELBOWELBOW
-
5900659006-3715 ARRESTER, FLAMEARRESTER, FLAME
-
5942159421-3728 COVER, INTAKECOVER, INTAKE
-
9200292002-3715 BOLT, 6X35BOLT, 6X35
-
92002A92002-3728 BOLT, 6X16BOLT, 6X16
-
9201592015-3767 NUT, 6MMNUT, 6MM
-
9203792037-3736 CLAMP, L=100CLAMP, L=100
-
9207292072-3874 BANDBAND
-
9215192151-3732 BOLT, SOCKET, 6X120BOLT, SOCKET, 6X120
-
9217192171-3707 CLAMPCLAMP
-
9219192191-3837 TUBE, 16.5X24.5X203TUBE, 16.5X24.5X203
