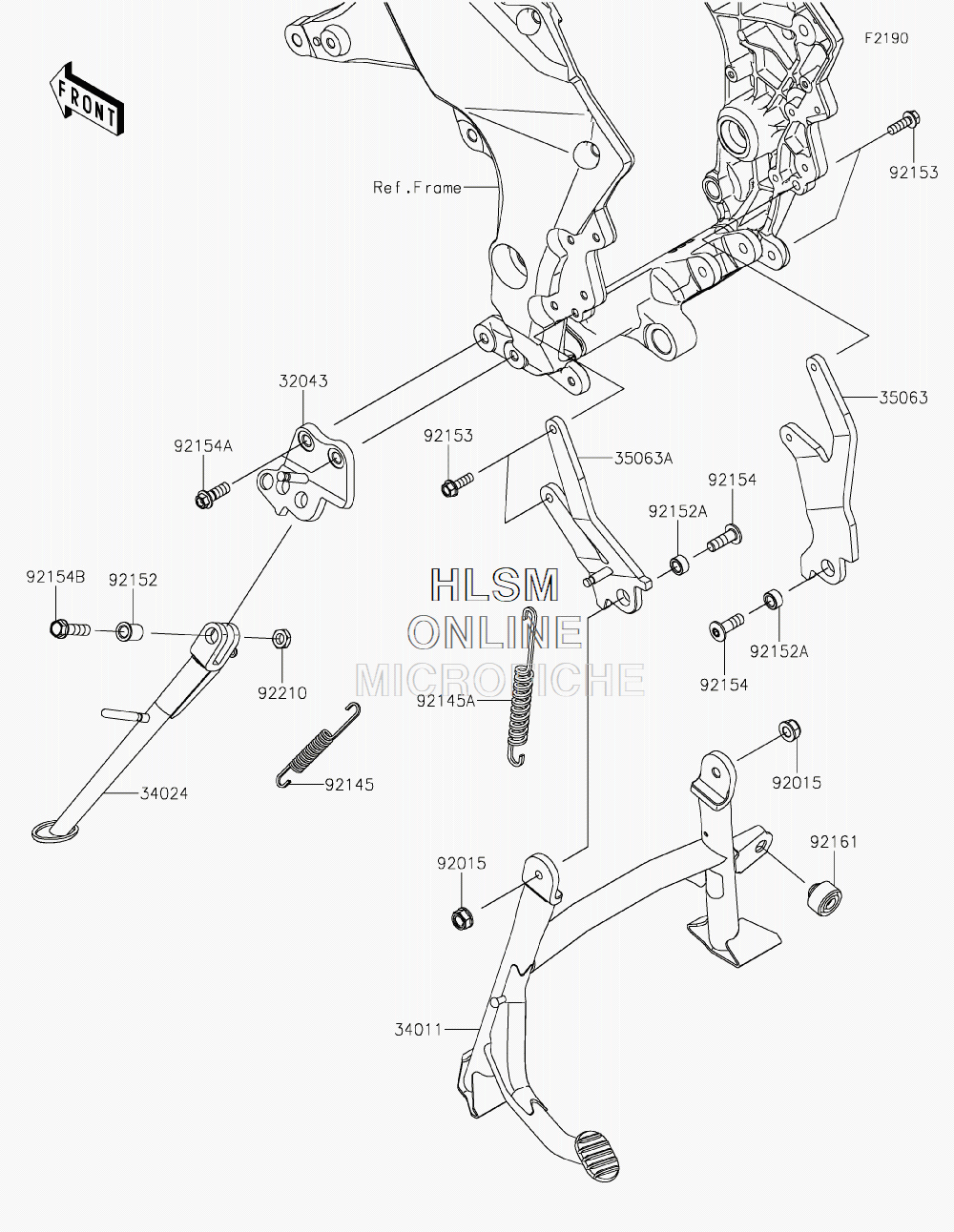

STAND(S) для Kawasaki VERSYS 1000 SE LT+ (KLZ1000DKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 32043
    32043-0642 BRACKET-STAND
    BRACKET-STAND
  • 34011
    34011-0037 STAND-CENTER
    STAND-CENTER
  • 34024
    34024-0152 STAND-SIDE
    STAND-SIDE
  • 35063
    35063-0981 STAY, CENTER STAND, RIGHT HAND
    STAY, CENTER STAND, RIGHT HAND
  • 35063A
    35063-1485 STAY, CENTER STAND, LEFT HAND
    STAY, CENTER STAND, LEFT HAND
  • 92015
    92015-1717 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92145
    92145-0562 SPRING, SIDE STAND
    SPRING, SIDE STAND
  • 92145A
    92145-1550 SPRING, CENTER STAND
    SPRING, CENTER STAND
  • 92152
    92152-1828 COLLAR, 10.2X15X20.1
    COLLAR, 10.2X15X20.1
  • 92152A
    92152-1906 COLLAR, 10X17X9
    COLLAR, 10X17X9
  • 92153
    92153-1768 BOLT, FLANGED, 8X25
    BOLT, FLANGED, 8X25
  • 92154
    92154-1665 BOLT, SOCKET, 10X30
    BOLT, SOCKET, 10X30
  • 92154A
    92154-1963 BOLT, FLANGED, 10X28
    BOLT, FLANGED, 10X28
  • 92154B
    92154-2330 BOLT, FLANGED, 10X37
    BOLT, FLANGED, 10X37
  • 92161
    92161-2154 DAMPER
    DAMPER
  • 92210
    92210-0784 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
