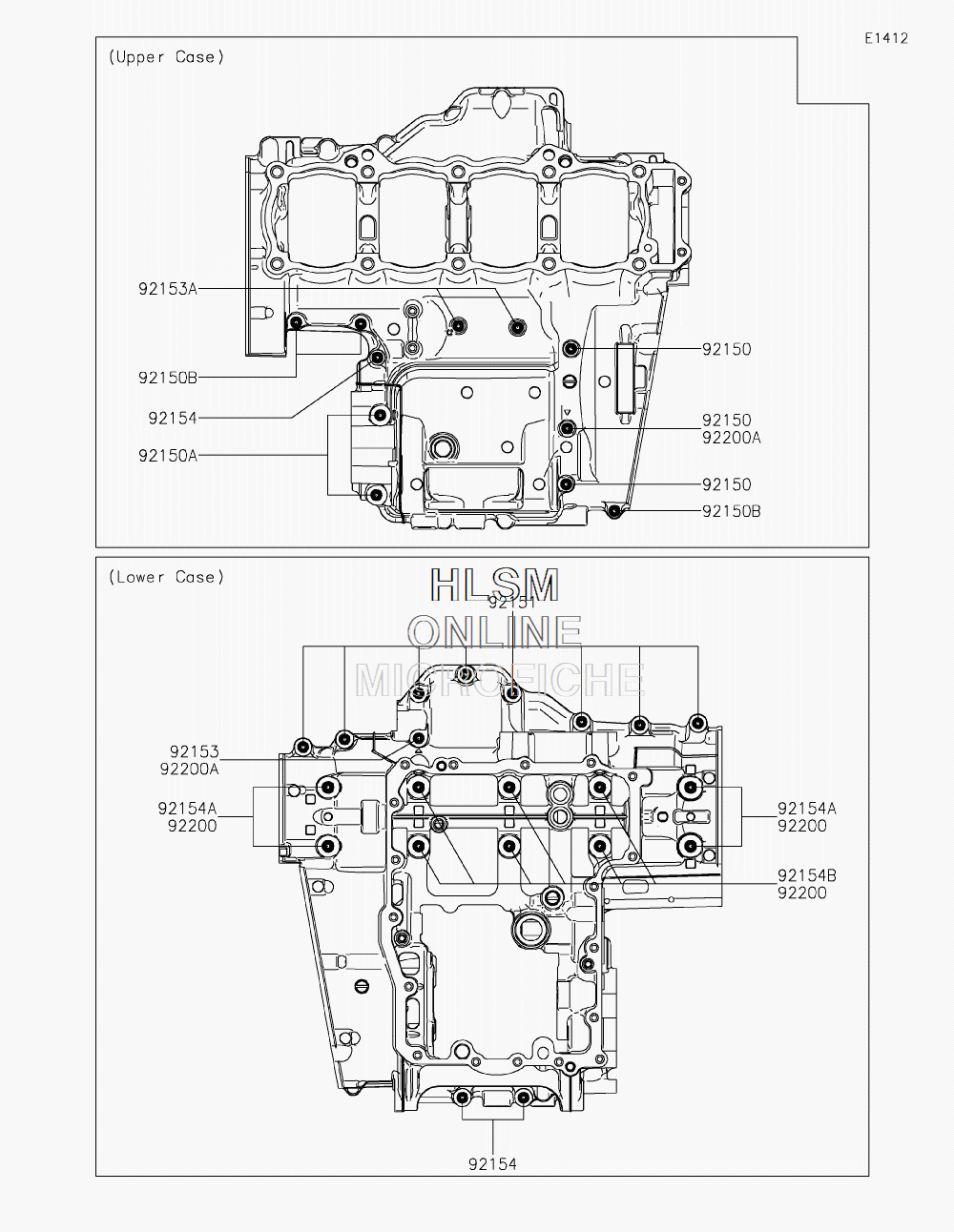

CRANKCASE BOLT PATTERN для Kawasaki VERSYS 1000 SE LT+ (KLZ1000DKF) - 2019 года выпуска
-
№АртикулНазвание
-
9215092150-1251 BOLT, FLANGED, 7X85BOLT, FLANGED, 7X85
-
92150A92150-1483 BOLT, 8X70BOLT, 8X70
-
92150B92150-1794 BOLT, 6X40BOLT, 6X40
-
9215192151-1539 BOLT, FLANGED, 7X45BOLT, FLANGED, 7X45
-
9215392153-1045 BOLT, FLANGED, 7X60BOLT, FLANGED, 7X60
-
92153A92153-1637 BOLT, FLANGED, 6X68BOLT, FLANGED, 6X68
-
9215492154-0372 BOLT, FLANGED, 7X50BOLT, FLANGED, 7X50
-
92154A92154-2639 BOLT, FLANGED, 9X100BOLT, FLANGED, 9X100
-
92154B92154-2640 BOLT, FLANGED, 9X90BOLT, FLANGED, 9X90
-
9220092200-0115 WASHER, 9.2X19X2.3WASHER, 9.2X19X2.3
-
92200A92200-0556 WASHERWASHER
