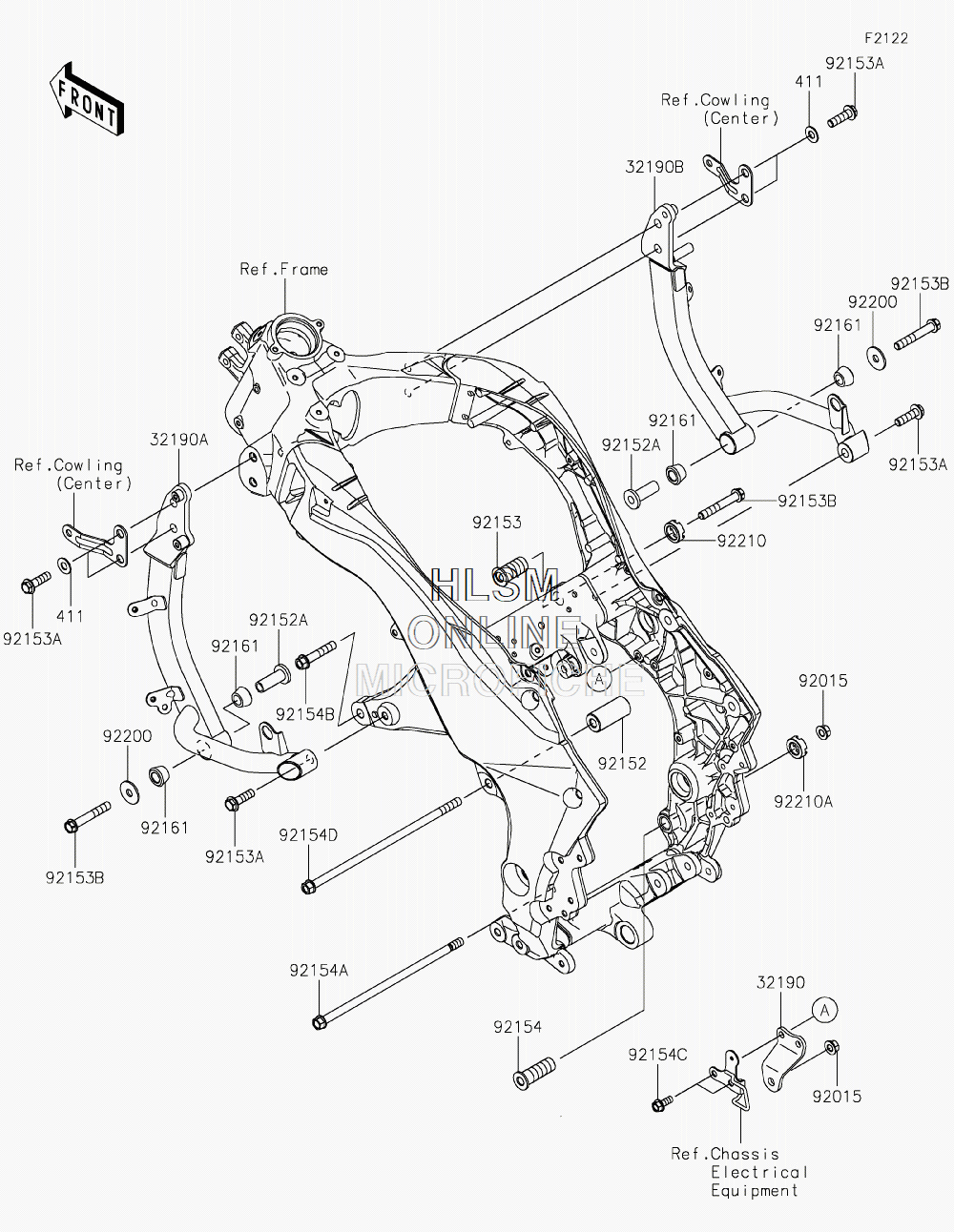

ENGINE MOUNT для Kawasaki VERSYS 1000 SE LT+ (KLZ1000DKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 32190
    32190-0458-18R BRACKET-ENGINE, CR CASE UPPER, (BLACK)
    BRACKET-ENGINE, CR CASE UPPER, (BLACK)
  • 32190A
    32190-0780-18R BRACKET-ENGINE, LEFT HAND, (F.S.BLACK)
    BRACKET-ENGINE, LEFT HAND, (F.S.BLACK)
  • 32190B
    32190-0781-18R BRACKET-ENGINE, RIGHT HAND, (F.S.BLACK)
    BRACKET-ENGINE, RIGHT HAND, (F.S.BLACK)
  • 411
    411AA1000 WASHER-PLAIN, 10MM
    WASHER-PLAIN, 10MM
  • 92015
    92015-1180 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92152
    92152-0853 COLLAR, 11X26X56.5
    COLLAR, 11X26X56.5
  • 92152A
    92152-1908 COLLAR, 10.5X14.5X44
    COLLAR, 10.5X14.5X44
  • 92153
    92153-0488 BOLT, SOCKET, 20X43
    BOLT, SOCKET, 20X43
  • 92153A
    92153-0802 BOLT, FLANGED, 10X35
    BOLT, FLANGED, 10X35
  • 92153B
    92153-1931 BOLT, FLANGED, 10X65
    BOLT, FLANGED, 10X65
  • 92154
    92154-0267 BOLT, ENGINE MOUNT, 18X53.5
    BOLT, ENGINE MOUNT, 18X53.5
  • 92154A
    92154-0827 BOLT, FLANGED, 10X255
    BOLT, FLANGED, 10X255
  • 92154B
    92154-0903 BOLT, FLANGED, 10X54
    BOLT, FLANGED, 10X54
  • 92154C
    92154-1852 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 92154D
    92154-2309 BOLT, FLANGED, 10X270
    BOLT, FLANGED, 10X270
  • 92161
    92161-1687 DAMPER, 13.7X26X15
    DAMPER, 13.7X26X15
  • 92200
    92200-0978 WASHER, 10.2X32X2.3
    WASHER, 10.2X32X2.3
  • 92210
    92210-0591 NUT, 20MM
    NUT, 20MM
  • 92210A
    92210-1203 NUT, 18MM
    NUT, 18MM
