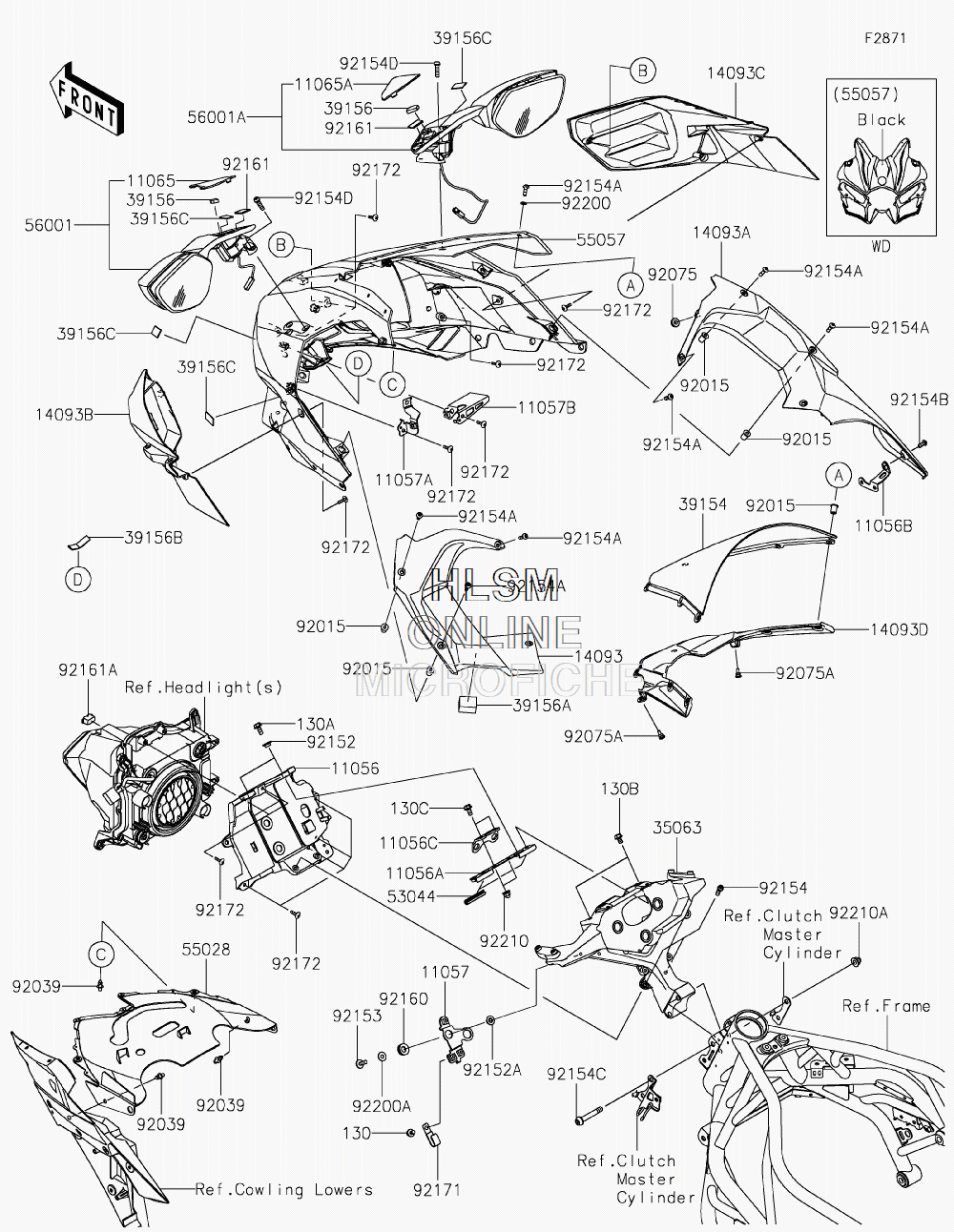

COWLING для Kawasaki NINJA H2 (ZX1002JKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1105611056-4497 BRACKET, HEAD LAMPBRACKET, HEAD LAMP
-
11056A11056-7076 BRACKET, METER STAYBRACKET, METER STAY
-
11056B11056-7098 BRACKET, INNER COVERBRACKET, INNER COVER
-
11056C11056-7534 BRACKET, V.D. SENSORBRACKET, V.D. SENSOR
-
1105711057-0447 BRACKET, GYRO SENSORBRACKET, GYRO SENSOR
-
11057A11057-0765 BRACKETBRACKET
-
11057B11057-0777 BRACKET, HEAD LAMP HARNESSBRACKET, HEAD LAMP HARNESS
-
1106511065-0922 CAP, UPPER, LEFT HANDCAP, UPPER, LEFT HAND
-
11065A11065-0923 CAP, UPPER, RIGHT HANDCAP, UPPER, RIGHT HAND
-
130130BA0608 BOLT-FLANGED, 6X8BOLT-FLANGED, 6X8
-
130A130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130B130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130C130R0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1409314093-0182 COVER, INNER, LEFT HANDCOVER, INNER, LEFT HAND
-
14093A14093-0183 COVER, INNER, RIGHT HANDCOVER, INNER, RIGHT HAND
-
14093B14093-0185 COVER, DUCT, LEFT HANDCOVER, DUCT, LEFT HAND
-
14093C14093-0186 COVER, DUCT, RIGHT HANDCOVER, DUCT, RIGHT HAND
-
14093D14093-0783 COVER, METER VISORCOVER, METER VISOR
-
3506335063-1459-46R STAY, UPPER COWL., (M.F.S.BLACK)STAY, UPPER COWL., (M.F.S.BLACK)
-
3915439154-0341 WINDSHIELDWINDSHIELD
-
3915639156-1809 PAD, 12X10X8PAD, 12X10X8
-
39156A39156-1900 PAD, 20X30X24PAD, 20X30X24
-
39156B39156-1924 PAD, 10X50X2PAD, 10X50X2
-
39156C39156-2119 PAD, 15X25X1PAD, 15X25X1
-
5304453044-0580 TRIMTRIM
-
5502855028-0539 COWLING, UPPER, LOWERCOWLING, UPPER, LOWER
-
5505755057-5315-53X COWLING, UPPER, (M.C.S.BLACK)COWLING, UPPER, (M.C.S.BLACK)
-
5600156001-0330-739 MIRROR-ASSY, LEFT HAND, (M.F.S.BLACK)MIRROR-ASSY, LEFT HAND, (M.F.S.BLACK)
-
56001A56001-0331-739 MIRROR-ASSY, RIGHT HAND, (M.F.S.BLACK)MIRROR-ASSY, RIGHT HAND, (M.F.S.BLACK)
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-0060 RIVETRIVET
-
9207592075-1011 DAMPER, 6X16X7DAMPER, 6X16X7
-
92075A92075-1808 DAMPER, 6X10X15DAMPER, 6X10X15
-
9215292152-0445 COLLAR, 6.5X10X5.6COLLAR, 6.5X10X5.6
-
92152A92152-2336 COLLAR, 6.5X16X7.3COLLAR, 6.5X16X7.3
-
9215392153-0816 BOLT, 6X18BOLT, 6X18
-
9215492154-1455 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92154A92154-1560 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154B92154-1561 BOLT, SOCKET, 5X12BOLT, SOCKET, 5X12
-
92154C92154-1710 BOLT, SOCKET, 8X52BOLT, SOCKET, 8X52
-
92154D92154-1724 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
9216092160-1278 DAMPERDAMPER
-
9216192161-1696 DAMPER, 16X23X2DAMPER, 16X23X2
-
92161A92161-1734 DAMPER, HEAD LAMPDAMPER, HEAD LAMP
-
9217192171-0305 CLAMPCLAMP
-
9217292172-0238 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9220092200-1820 WASHER, 5.2X10X1.0WASHER, 5.2X10X1.0
-
92200A92200-3712 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210A92210-1132 NUT, CAP, 8MMNUT, CAP, 8MM
