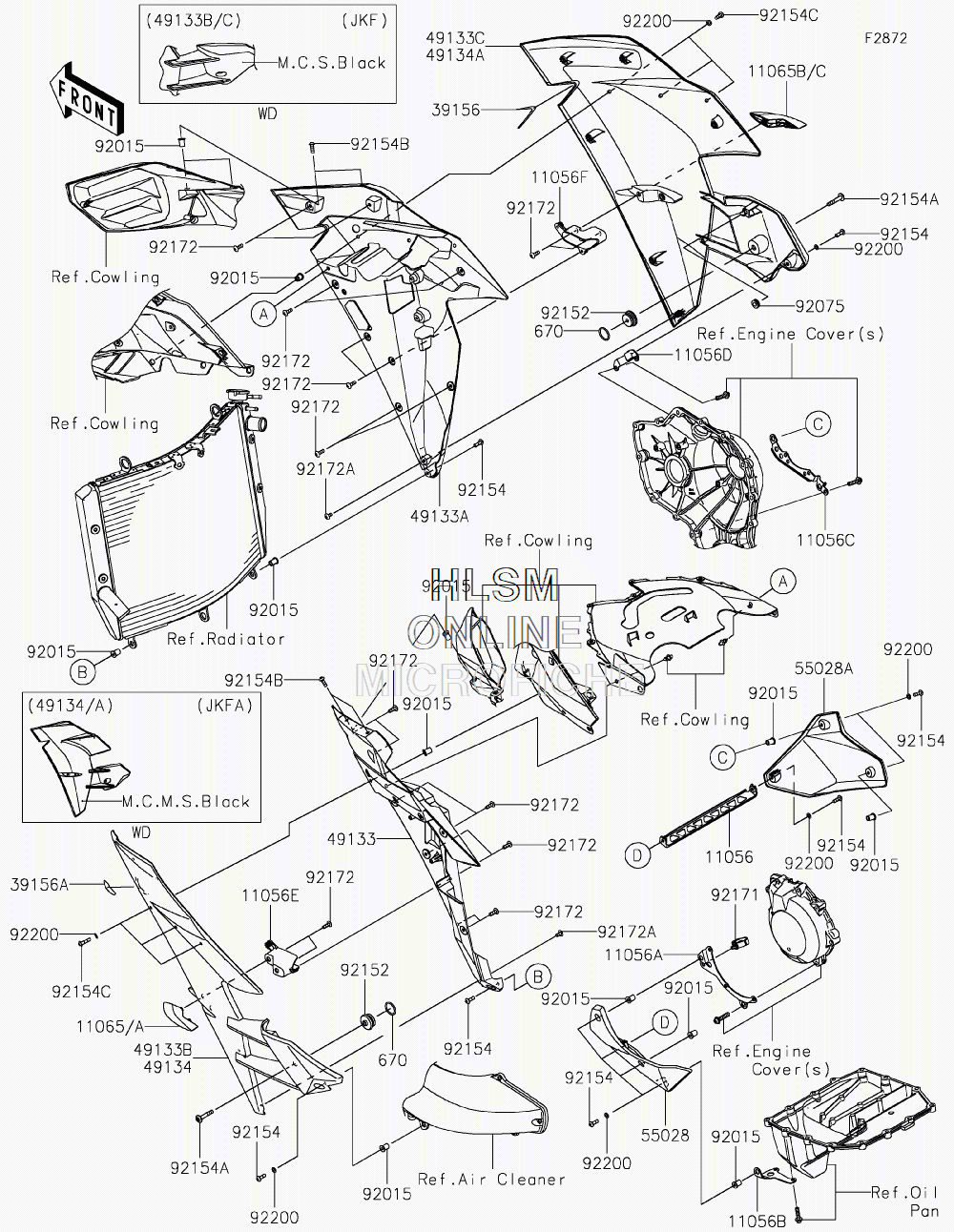

COWLING - LOWERS для Kawasaki NINJA H2 (ZX1002JKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11056
    11056-7016 BRACKET, LOWER COWL.
    BRACKET, LOWER COWL.
  • 11056A
    11056-7017 BRACKET, LOWER COWL., G. COVER
    BRACKET, LOWER COWL., G. COVER
  • 11056B
    11056-7018 BRACKET, LOWER COWL., OIL PAN
    BRACKET, LOWER COWL., OIL PAN
  • 11056C
    11056-7019 BRACKET, LOWER COWL., RIGHT HAND
    BRACKET, LOWER COWL., RIGHT HAND
  • 11056D
    11056-7020 BRACKET, CLUTCH COVER
    BRACKET, CLUTCH COVER
  • 11056E
    11056-7745 BRACKET, SHROUD, LEFT HAND
    BRACKET, SHROUD, LEFT HAND
  • 11056F
    11056-7746 BRACKET, OVER FLOW HOSE
    BRACKET, OVER FLOW HOSE
  • 11065A
    11065-0886-53X CAP, SHROUD, LEFT HAND, (M.C.S.BLACK)
    CAP, SHROUD, LEFT HAND, (M.C.S.BLACK)
  • 11065C
    11065-0887-53X CAP, SHROUD, RIGHT HAND, (M.C.S.BLACK)
    CAP, SHROUD, RIGHT HAND, (M.C.S.BLACK)
  • 39156
    39156-2109 PAD, SHROUD, RIGHT HAND
    PAD, SHROUD, RIGHT HAND
  • 39156A
    39156-2110 PAD, SHROUD, LEFT HAND
    PAD, SHROUD, LEFT HAND
  • 49133
    49133-0015 SHROUD, INNER, LEFT HAND
    SHROUD, INNER, LEFT HAND
  • 49133A
    49133-0016 SHROUD, INNER, RIGHT HAND
    SHROUD, INNER, RIGHT HAND
  • 49133B
    49133-5053-53X SHROUD, LEFT HAND, (M.C.S.BLACK)
    SHROUD, LEFT HAND, (M.C.S.BLACK)
  • 49133C
    49133-5054-53X SHROUD, RIGHT HAND, (M.C.S.BLACK)
    SHROUD, RIGHT HAND, (M.C.S.BLACK)
  • 55028
    55028-0540-739 COWLING, LOWER, LEFT HAND, (M.F.S.BLACK)
    COWLING, LOWER, LEFT HAND, (M.F.S.BLACK)
  • 55028A
    55028-0541-739 COWLING, LOWER, RIGHT HAND, (M.F.S.BLACK)
    COWLING, LOWER, RIGHT HAND, (M.F.S.BLACK)
  • 670
    670B2022 O RING, 22MM
    O RING, 22MM
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92075
    92075-161 DAMPER
    DAMPER
  • 92152
    92152-1967 COLLAR, 6.3X30X16.7
    COLLAR, 6.3X30X16.7
  • 92154
    92154-1560 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154A
    92154-1627 BOLT, SOCKET, 6X34
    BOLT, SOCKET, 6X34
  • 92154B
    92154-1729 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154C
    92154-1781 BOLT, SOCKET, 5X20
    BOLT, SOCKET, 5X20
  • 92171
    92171-0069 CLAMP, 20MM DIA.
    CLAMP, 20MM DIA.
  • 92172
    92172-0175 SCREW, TAPPING, 5X16
    SCREW, TAPPING, 5X16
  • 92172A
    92172-0335 SCREW, TAPPING, 5X10
    SCREW, TAPPING, 5X10
  • 92200
    92200-1820 WASHER, 5.2X10X1.0
    WASHER, 5.2X10X1.0
