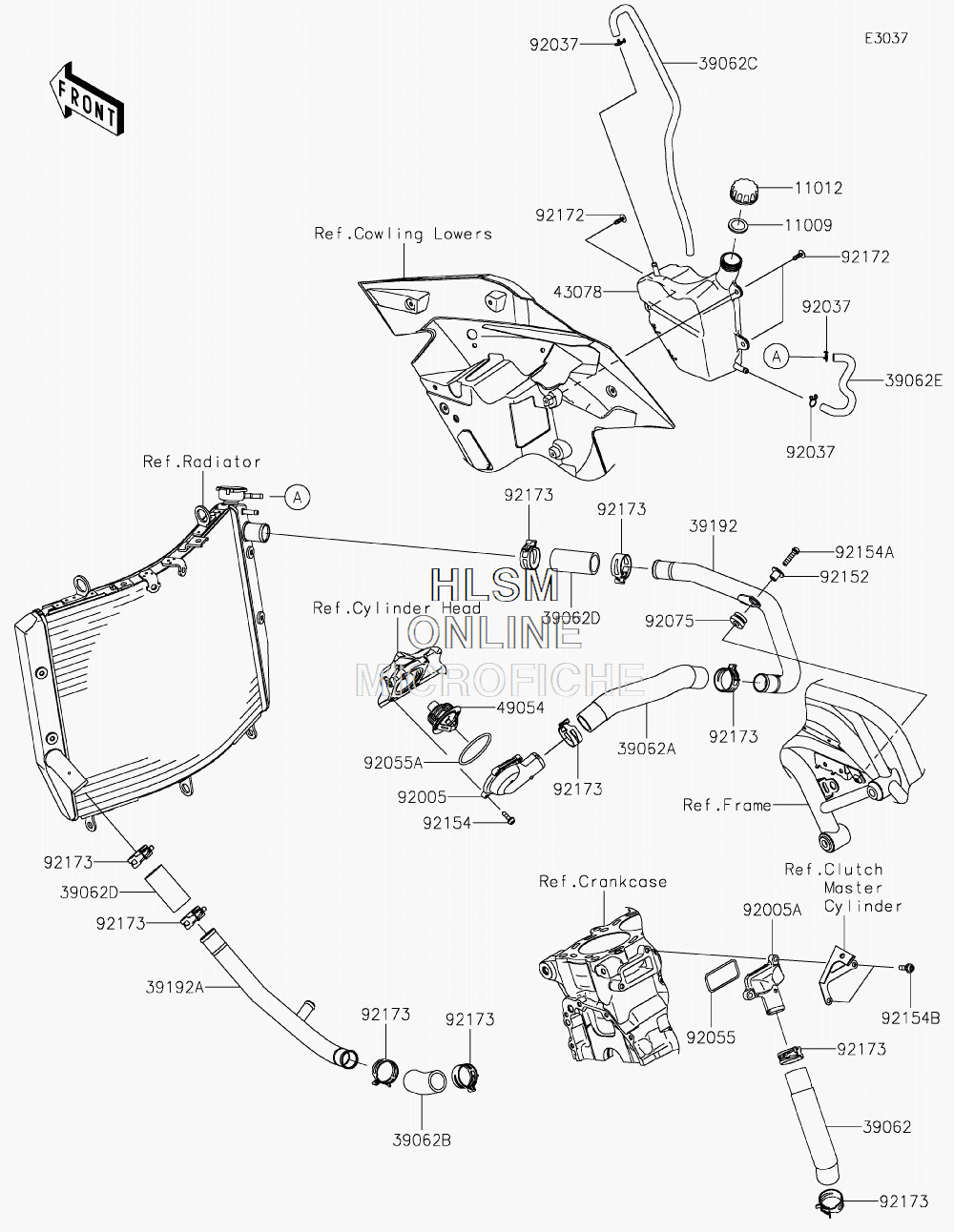

COOLING SYSTEM для Kawasaki NINJA H2 (ZX1002JKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1145 GASKET, RESERVOIR TANK CAP
    GASKET, RESERVOIR TANK CAP
  • 11012
    11012-1084 CAP
    CAP
  • 39062
    39062-0681 HOSE-COOLING, W/PUMP-FITTING
    HOSE-COOLING, W/PUMP-FITTING
  • 39062A
    39062-0682 HOSE-COOLING, THERMO-W/PIPE
    HOSE-COOLING, THERMO-W/PIPE
  • 39062B
    39062-0683 HOSE-COOLING, W/PIPE-W/PUMP
    HOSE-COOLING, W/PIPE-W/PUMP
  • 39062C
    39062-0687 HOSE-COOLING, OVER FLOW
    HOSE-COOLING, OVER FLOW
  • 39062D
    39062-0701 HOSE-COOLING, RADIATOR-W/PIPE
    HOSE-COOLING, RADIATOR-W/PIPE
  • 39062E
    39062-0718 HOSE-COOLING, RETURN
    HOSE-COOLING, RETURN
  • 39192
    39192-0584 PIPE-WATER, RAD.-THERMO COVER
    PIPE-WATER, RAD.-THERMO COVER
  • 39192A
    39192-0585 PIPE-WATER, RADIATOR-WATER PUMP
    PIPE-WATER, RADIATOR-WATER PUMP
  • 43078
    43078-0574 RESERVOIR
    RESERVOIR
  • 49054
    49054-0004 THERMOSTAT
    THERMOSTAT
  • 92005
    92005-0770 FITTING, THERMO COVER
    FITTING, THERMO COVER
  • 92005A
    92005-0772 FITTING, CYLINDER
    FITTING, CYLINDER
  • 92037
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-0809 RING-O
    RING-O
  • 92055A
    92055-0810 RING-O, 54.5X2.6
    RING-O, 54.5X2.6
  • 92075
    92075-1123 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92152
    92152-2112 COLLAR
    COLLAR
  • 92154
    92154-1449 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154A
    92154-1457 BOLT, SOCKET, 6X25
    BOLT, SOCKET, 6X25
  • 92154B
    92154-1499 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 92172
    92172-0175 SCREW, TAPPING, 5X16
    SCREW, TAPPING, 5X16
  • 92173
    92173-1360 CLAMP, 34MM
    CLAMP, 34MM
