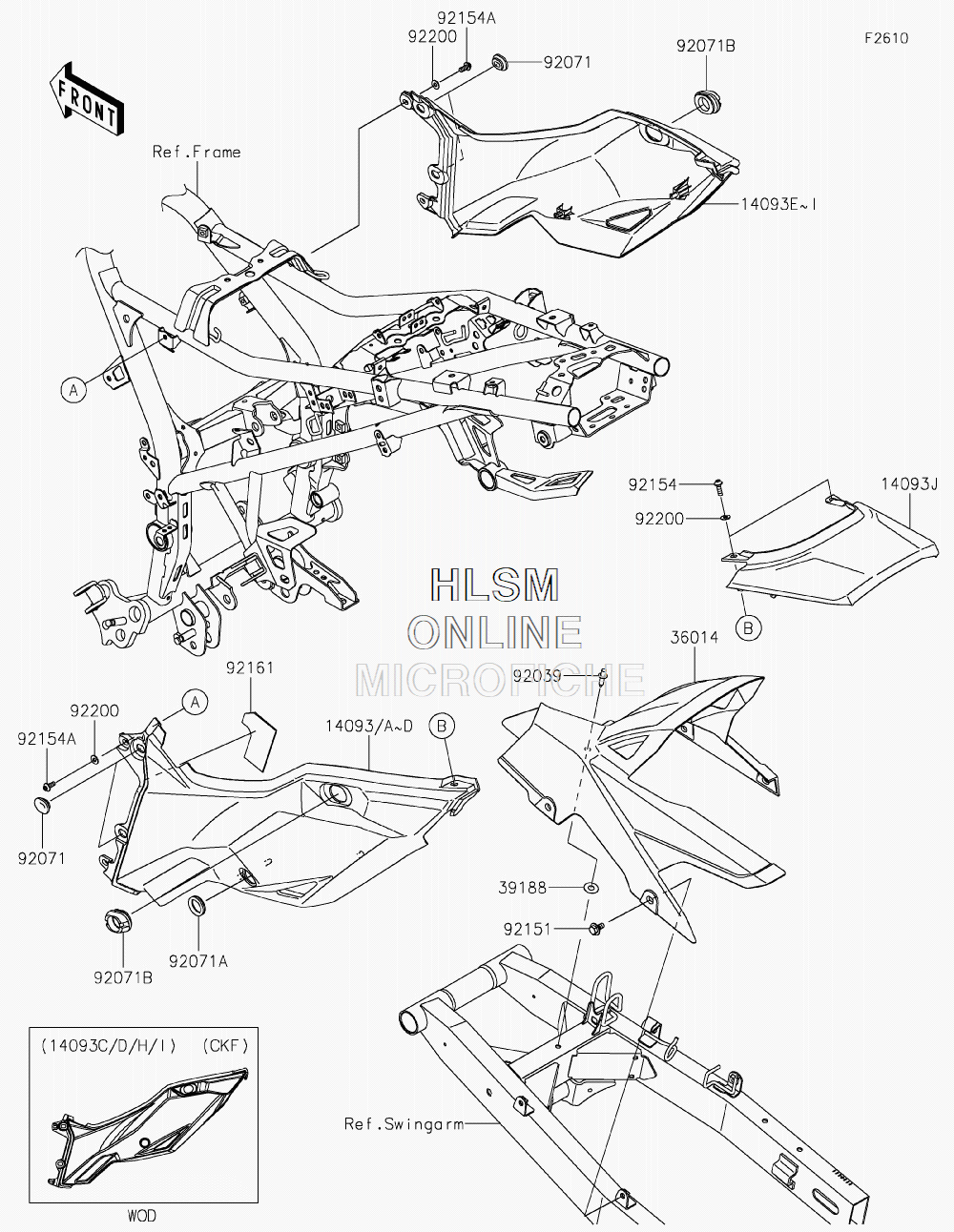

SIDE COVERS W/ CHAIN COVER для Kawasaki VERSYS-X 300 ABS (KLE300CJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 14093
    14093-0554-35B COVER, REAR SIDE, LEFT HAND, (M.F.R.GRAY) (FOR 234/660)
    COVER, REAR SIDE, LEFT HAND, (M.F.R.GRAY) (FOR 234/660)
  • 14093B
    14093-0554-45W COVER, REAR SIDE, LEFT HAND, (M.G.GRAY) (FOR 51P)
    COVER, REAR SIDE, LEFT HAND, (M.G.GRAY) (FOR 51P)
  • 14093E
    14093-0555-35B COVER, REAR SIDE, RIGHT HAND, (M.F.R.GRAY) (FOR 234/660)
    COVER, REAR SIDE, RIGHT HAND, (M.F.R.GRAY) (FOR 234/660)
  • 14093G
    14093-0555-45W COVER, REAR SIDE, RIGHT HAND, (M.G.GRAY) (FOR 51P)
    COVER, REAR SIDE, RIGHT HAND, (M.G.GRAY) (FOR 51P)
  • 14093J
    14093-0556 COVER, REAR TAIL
    COVER, REAR TAIL
  • 36014
    36014-0569 CASE-CHAIN
    CASE-CHAIN
  • 39188
    39188-0046 TAPE, 8X19
    TAPE, 8X19
  • 92039
    92039-0709 RIVET
    RIVET
  • 92071
    92071-0766 GROMMET, 20X24X7.5
    GROMMET, 20X24X7.5
  • 92071A
    92071-0767 GROMMET, 19.4X22.4X5.9
    GROMMET, 19.4X22.4X5.9
  • 92071B
    92071-0772 GROMMET, 26.4X42.4X15.8
    GROMMET, 26.4X42.4X15.8
  • 92151
    92151-1703 BOLT, FLANGED, 6X13
    BOLT, FLANGED, 6X13
  • 92154
    92154-0209 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154A
    92154-0917 BOLT, SOCKET, 5X12
    BOLT, SOCKET, 5X12
  • 92161
    92161-2070 DAMPER, 54X70X2
    DAMPER, 54X70X2
  • 92200
    92200-0784 WASHER, 5.2X12X1.0
    WASHER, 5.2X12X1.0
