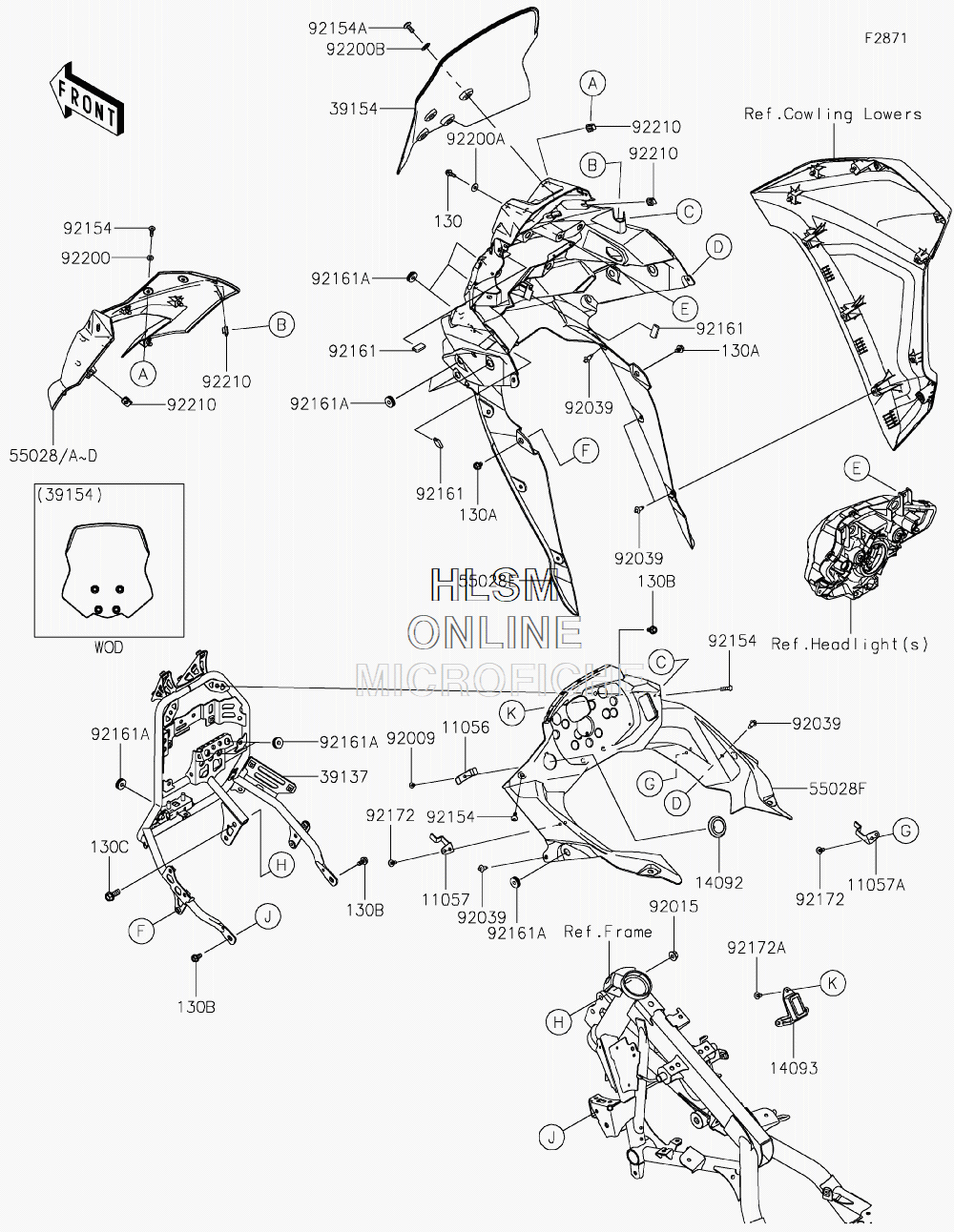

COWLING для Kawasaki VERSYS-X 300 ABS (KLE300CJF) - 2018 года выпуска
-
№АртикулНазвание
-
1105611056-4313 BRACKET, CAP COVERBRACKET, CAP COVER
-
1105711057-0913 BRACKET, INNER COWL., LEFT HANDBRACKET, INNER COWL., LEFT HAND
-
11057A11057-0914 BRACKET, INNER COWL., RIGHT HANDBRACKET, INNER COWL., RIGHT HAND
-
130130BA0514 BOLT-FLANGED, 5X14BOLT-FLANGED, 5X14
-
130A130BA0608 BOLT-FLANGED, 6X8BOLT-FLANGED, 6X8
-
130B130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130C130CA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
1409214092-0214 COVER, DC SOCKETCOVER, DC SOCKET
-
1409314093-0565 COVER, FOG SW.COVER, FOG SW.
-
3913739137-0680 STAY-COMP, METERSTAY-COMP, METER
-
3915439154-0358 WINDSHIELDWINDSHIELD
-
5502855028-0624-234 COWLING, UPPER, (P.RED) (FOR 234)COWLING, UPPER, (P.RED) (FOR 234)
-
55028B55028-0624-51P COWLING, UPPER, (C.L.GREEN) (FOR 51P)COWLING, UPPER, (C.L.GREEN) (FOR 51P)
-
55028C55028-0624-660 COWLING, UPPER, (M.S.BLACK) (FOR 660)COWLING, UPPER, (M.S.BLACK) (FOR 660)
-
55028E55028-0625 COWLING, FRONTCOWLING, FRONT
-
55028F55028-0630 COWLING, UPPER, INNERCOWLING, UPPER, INNER
-
9200992009-1155 SCREW, TAPPING, 4X8SCREW, TAPPING, 4X8
-
9201592015-1014 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9203992039-0707 RIVETRIVET
-
9215492154-0209 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154A92154-0932 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9216192161-1367 DAMPER, 12X23DAMPER, 12X23
-
92161A92161-1911 DAMPER, 6X19X5.6DAMPER, 6X19X5.6
-
9217292172-0821 SCREW, 5X12SCREW, 5X12
-
92172A92172-0864 SCREW, 5X10SCREW, 5X10
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
-
92200A92200-0456 WASHER, 5.2X15X1.0WASHER, 5.2X15X1.0
-
92200B92200-1890 WASHER, 11.4X18X1WASHER, 11.4X18X1
-
9221092210-0817 NUT, 5MMNUT, 5MM
