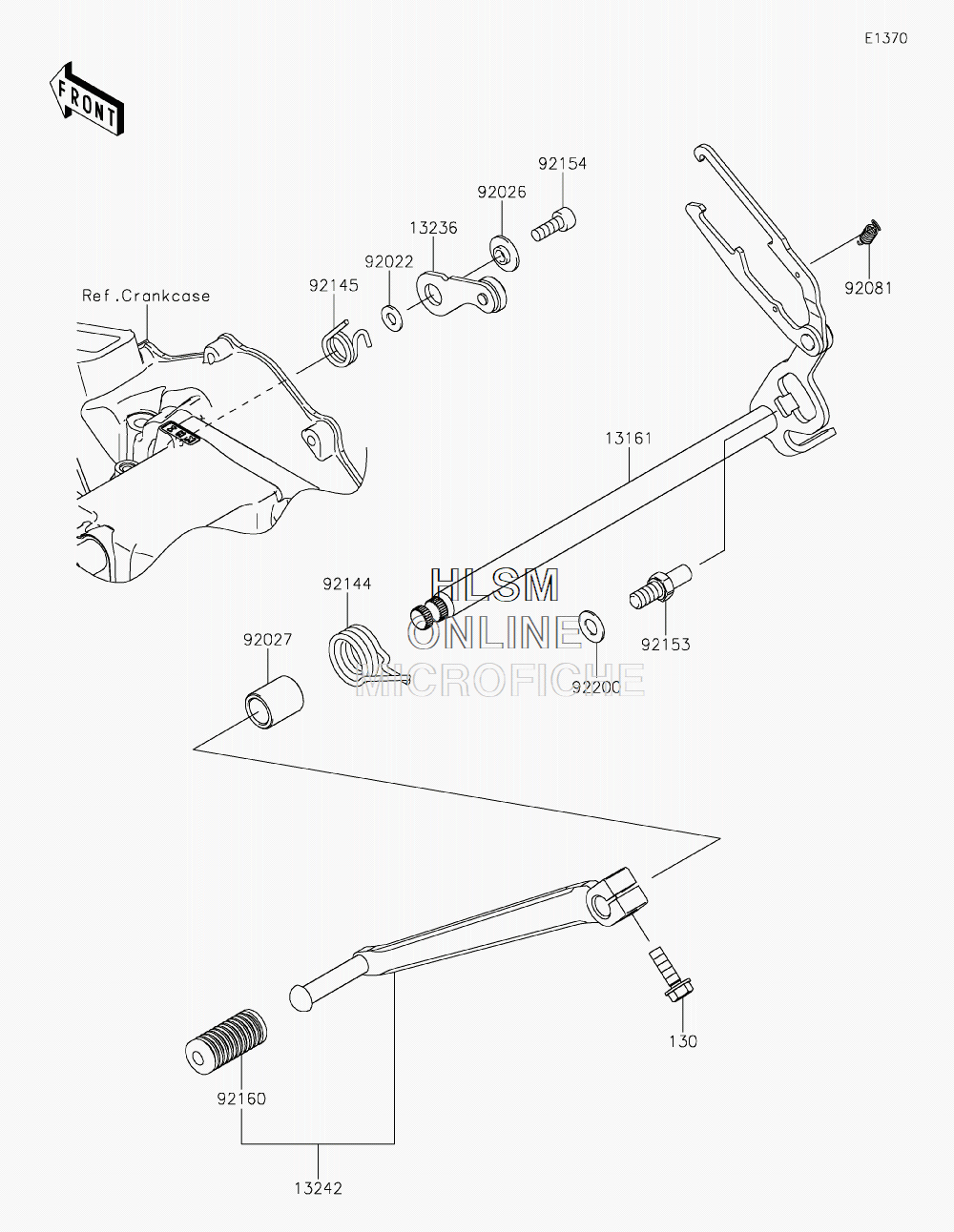

GEAR CHANGE MECHANISM для Kawasaki VERSYS-X 300 ABS (KLE300CJF) - 2018 года выпуска
-
№АртикулНазвание
-
130130CC0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
1316113161-0560 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1323613236-0797 LEVER-COMPLEVER-COMP
-
1324213242-0151 LEVER-ASSY-CHANGE, PEDALLEVER-ASSY-CHANGE, PEDAL
-
9202292022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9202792027-1440 COLLAR, 13X18.3X21.5COLLAR, 13X18.3X21.5
-
9208192081-076 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9214492144-1074 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9214592145-1747 SPRINGSPRING
-
9215392153-1986 BOLT, 8X15.5BOLT, 8X15.5
-
9215492154-0235 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9216092160-1036 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9220092200-0434 WASHER, 8.2X16X1WASHER, 8.2X16X1
