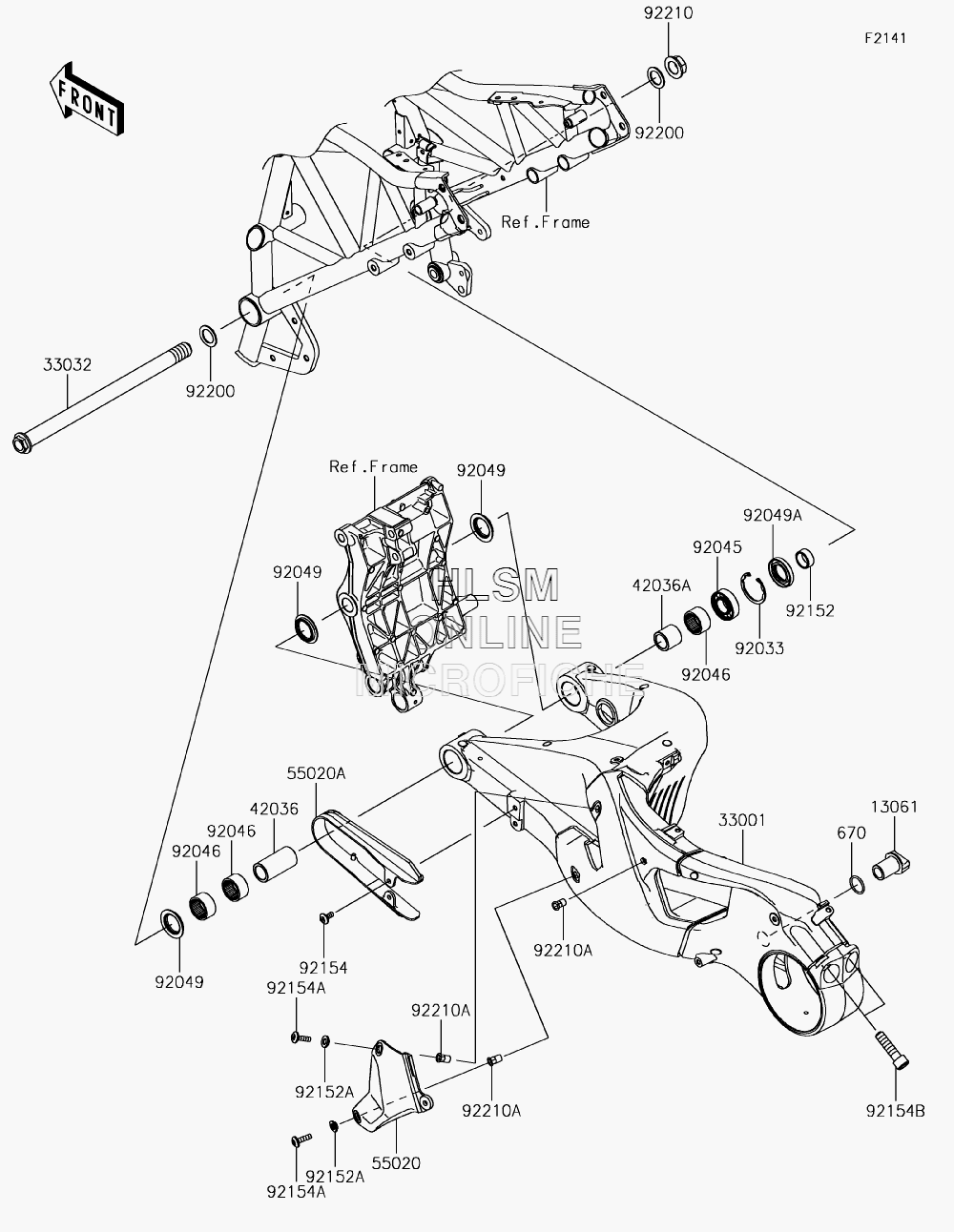

SUSPENSION - SWINGARM для Kawasaki NINJA H2 SX SE (ZX1002BJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 13061
    13061-0744 BOSS, CALIPER HOLDER
    BOSS, CALIPER HOLDER
  • 33001
    33001-0686-46R ARM-COMP-SWING, (M.F.S.BLACK)
    ARM-COMP-SWING, (M.F.S.BLACK)
  • 33032
    33032-0049 SHAFT-SWINGARM, 20X313
    SHAFT-SWINGARM, 20X313
  • 42036
    42036-0757 SLEEVE, 20.1X28X56.5
    SLEEVE, 20.1X28X56.5
  • 42036A
    42036-0762 SLEEVE, 20.1X28X25.7
    SLEEVE, 20.1X28X25.7
  • 55020
    55020-2200 GUARD, HEEL
    GUARD, HEEL
  • 55020A
    55020-2204 GUARD, CHAIN SLIDER
    GUARD, CHAIN SLIDER
  • 670
    670B2022 O RING, 22MM
    O RING, 22MM
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92045
    92045-0017 BEARING-BALL, 6004UL11
    BEARING-BALL, 6004UL11
  • 92046
    92046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17
    BEARING-NEEDLE, 7E-HVS 28X34X17
  • 92049
    92049-1181 SEAL-OIL, 28X34X5.7
    SEAL-OIL, 28X34X5.7
  • 92049A
    92049-1314 SEAL-OIL, MHSA25X42X6
    SEAL-OIL, MHSA25X42X6
  • 92152
    92152-1948 COLLAR, 20.2X25X10.5
    COLLAR, 20.2X25X10.5
  • 92152A
    92152-2495 COLLAR, 6.5X16X4.6
    COLLAR, 6.5X16X4.6
  • 92154
    92154-1025 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92154A
    92154-1810 BOLT, SOCKET, 6X22
    BOLT, SOCKET, 6X22
  • 92154B
    92154-2908 BOLT, SOCKET, 12X45
    BOLT, SOCKET, 12X45
  • 92200
    92200-1791 WASHER, 20.5X31X1.5
    WASHER, 20.5X31X1.5
  • 92210
    92210-0320 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
  • 92210A
    92210-0324 NUT, POP, 6MM, L=16.5
    NUT, POP, 6MM, L=16.5
