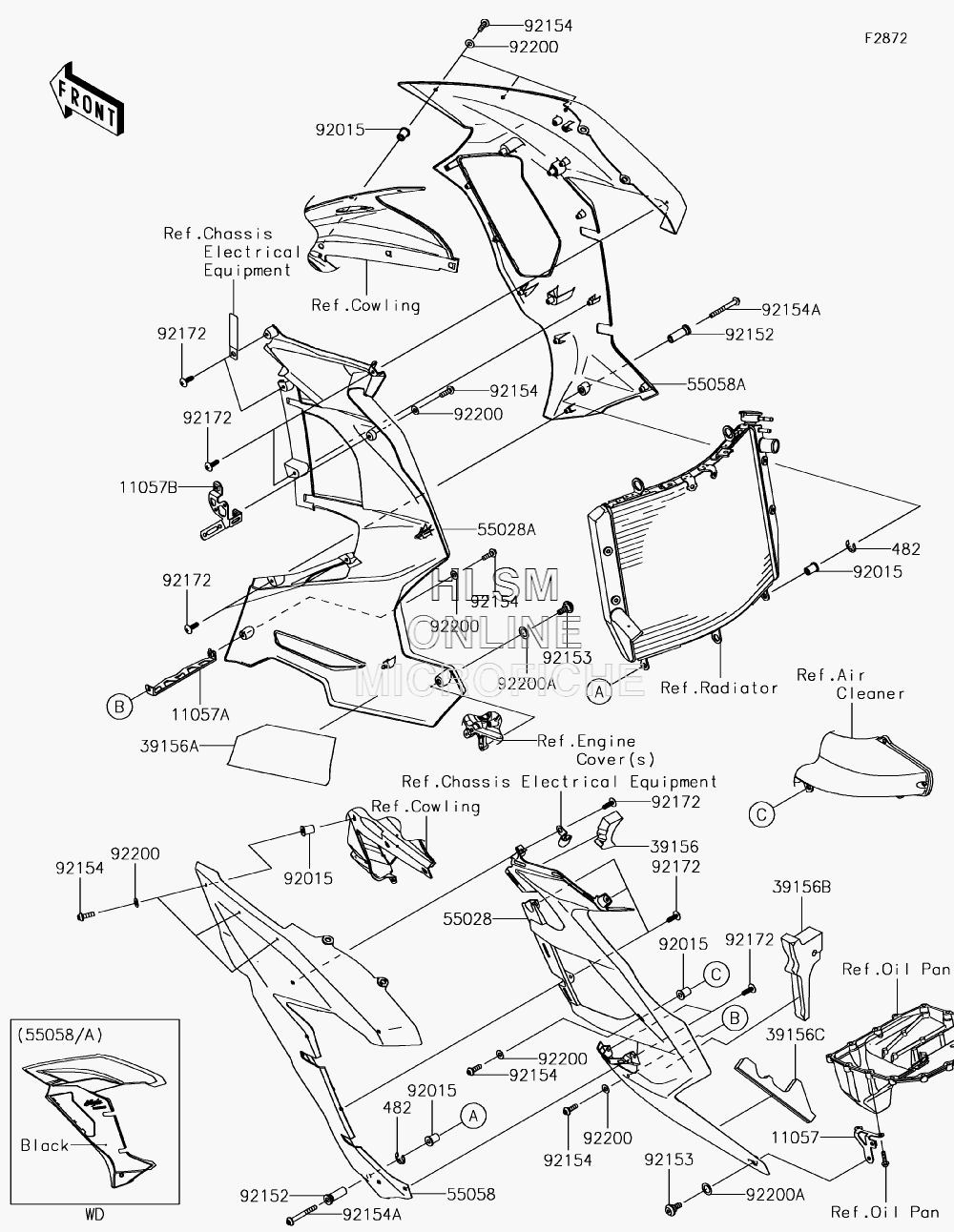

COWLING - LOWERS для Kawasaki NINJA H2 SX SE (ZX1002BJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 11057
    11057-1286 BRACKET, LOWER COWL., REAR
    BRACKET, LOWER COWL., REAR
  • 11057A
    11057-1287 BRACKET, CONNECTING, LOWER
    BRACKET, CONNECTING, LOWER
  • 11057B
    11057-1297 BRACKET, SIDE COWL., W/ABS PIPE
    BRACKET, SIDE COWL., W/ABS PIPE
  • 39156
    39156-2255 PAD, DUCT
    PAD, DUCT
  • 39156A
    39156-2334 PAD, ADIABATIC, 92X231X0.3
    PAD, ADIABATIC, 92X231X0.3
  • 39156B
    39156-2377 PAD, GENERATOR COVER
    PAD, GENERATOR COVER
  • 39156C
    39156-2385 PAD, 30X60X30
    PAD, 30X60X30
  • 482
    482EA8000 CIRCLIP-TYPE-E, 8MM
    CIRCLIP-TYPE-E, 8MM
  • 55028
    55028-0651-60R COWLING, SIDE, REAR, LEFT HAND, (E.B.GREEN)
    COWLING, SIDE, REAR, LEFT HAND, (E.B.GREEN)
  • 55028A
    55028-0652-60R COWLING, SIDE, REAR, RIGHT HAND, (E.B.GREEN)
    COWLING, SIDE, REAR, RIGHT HAND, (E.B.GREEN)
  • 55058
    55058-5068-17K COWLING, SIDE, FRONT, LEFT HAND, (M.D.BLACK)
    COWLING, SIDE, FRONT, LEFT HAND, (M.D.BLACK)
  • 55058A
    55058-5069-17K COWLING, SIDE, FRONT, RIGHT HAND, (M.D.BLACK)
    COWLING, SIDE, FRONT, RIGHT HAND, (M.D.BLACK)
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92152
    92152-2448 COLLAR, 5.2X9.5X30
    COLLAR, 5.2X9.5X30
  • 92153
    92153-0489 BOLT, SOCKET, 6MM
    BOLT, SOCKET, 6MM
  • 92154
    92154-0209 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154A
    92154-2934 BOLT, SOCKET, 5X45
    BOLT, SOCKET, 5X45
  • 92172
    92172-0238 SCREW, TAPPING, 5X16
    SCREW, TAPPING, 5X16
  • 92200
    92200-0006 WASHER, NYLONE, 5.3X11.5X0.5
    WASHER, NYLONE, 5.3X11.5X0.5
  • 92200A
    92200-0157 WASHER, 10.4X15.9X0.5
    WASHER, 10.4X15.9X0.5
