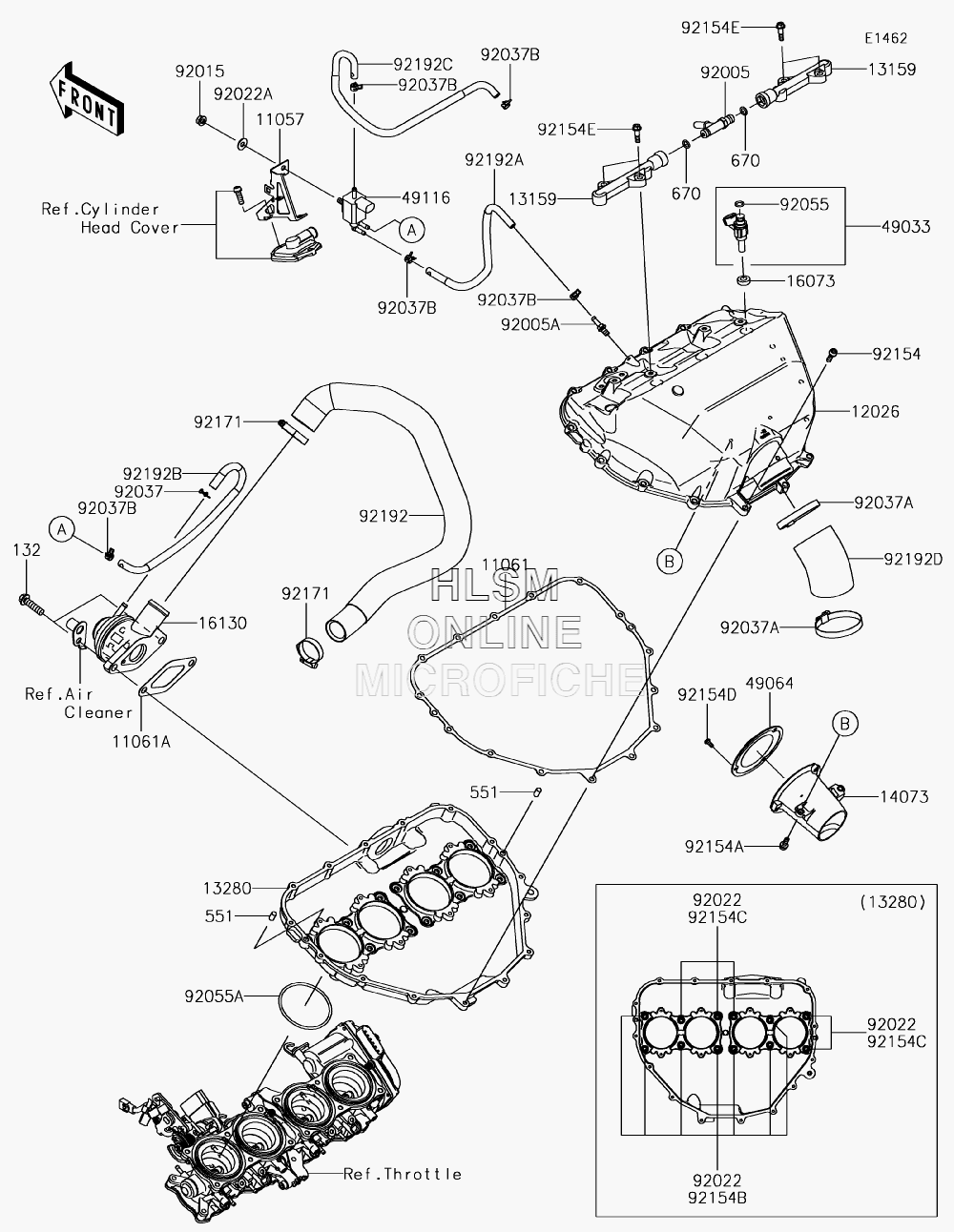

AIR CHAMBER для Kawasaki NINJA H2 SX SE (ZX1002BJF) - 2018 года выпуска
-
№АртикулНазвание
-
1105711057-1261 BRACKET, SOLENOID VALVEBRACKET, SOLENOID VALVE
-
1106111061-0949 GASKET, CHAMBERGASKET, CHAMBER
-
11061A11061-0950 GASKET, BLOWOFF VALVEGASKET, BLOWOFF VALVE
-
1202612026-0018 CHAMBER, INTAKECHAMBER, INTAKE
-
1315913159-0016 CONNECTORCONNECTOR
-
132132BC0830 BOLT-FLANGED-SMALL, 8X30BOLT-FLANGED-SMALL, 8X30
-
1328013280-0905 HOLDER, CHAMBERHOLDER, CHAMBER
-
1407314073-0884 DUCT, DIFFUSERDUCT, DIFFUSER
-
1607316073-0129 INSULATORINSULATOR
-
1613016130-0008 VALVE-ASSY-RELIEF, BLOWOFFVALVE-ASSY-RELIEF, BLOWOFF
-
4903349033-0036 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4906449064-0007 FILTER-AIRFILTER-AIR
-
4911649116-0041 VALVE-ASSY, SOLENOIDVALVE-ASSY, SOLENOID
-
551551A0612 PIN-DOWEL, 6X12PIN-DOWEL, 6X12
-
670670E1508 O RING, 8MMO RING, 8MM
-
9200592005-0125 FITTINGFITTING
-
92005A92005-0826 FITTINGFITTING
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-037 WASHER, 5.5X10.5X0.8WASHER, 5.5X10.5X0.8
-
92022A92022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1586 CLAMP, RESERVE TANKCLAMP, RESERVE TANK
-
92037B92037-2116 CLAMP, 7.8MMCLAMP, 7.8MM
-
9205592055-0124 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
92055A92055-0815 RING-O, 65.8X3RING-O, 65.8X3
-
9215492154-1450 BOLT, SOCKET, 5X18BOLT, SOCKET, 5X18
-
92154A92154-1568 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154B92154-1680 BOLT, FLANGED, 5X14BOLT, FLANGED, 5X14
-
92154C92154-1681 BOLT, FLANGED, 5X95BOLT, FLANGED, 5X95
-
92154D92154-1790 BOLT, TORX, 4X10BOLT, TORX, 4X10
-
92154E92154-2897 BOLT, SHOULDER, 5X20BOLT, SHOULDER, 5X20
-
9217192171-0179 CLAMPCLAMP
-
9219292192-1839 TUBE, BLOWOFF VALVE-AIR FILTERTUBE, BLOWOFF VALVE-AIR FILTER
-
92192A92192-1840 TUBE, SOLENOID-CHAMBERTUBE, SOLENOID-CHAMBER
-
92192B92192-1841 TUBE, SOLENOID-BLOWOFF VALVETUBE, SOLENOID-BLOWOFF VALVE
-
92192C92192-1842 TUBE, SOLENOID-THROTTLE BODYTUBE, SOLENOID-THROTTLE BODY
-
92192D92192-1865 TUBE, DIFFUSERTUBE, DIFFUSER
