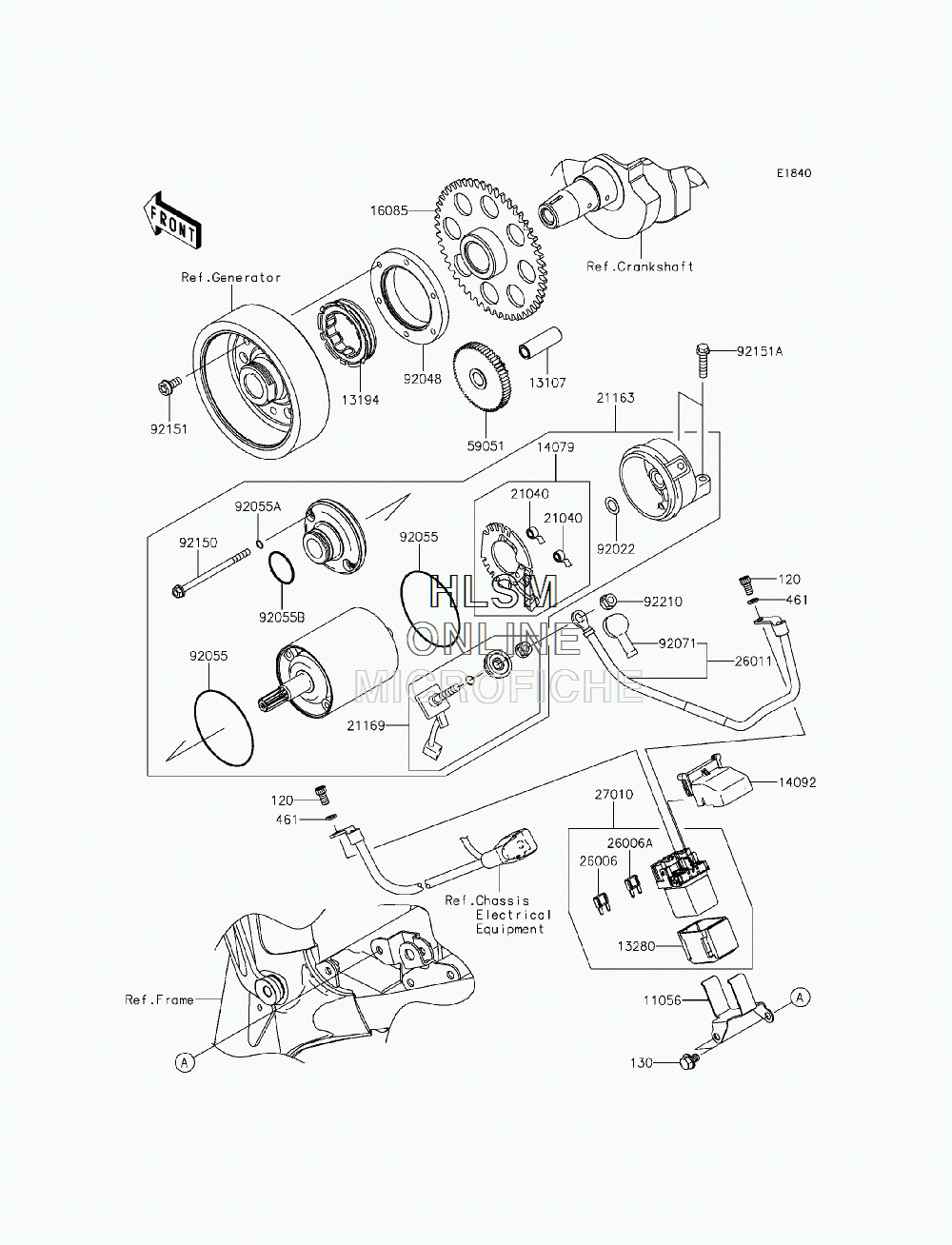

STARTER MOTOR для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска
-
№АртикулНазвание
-
120120CB0510 BOLT-SOCKET,5X10BOLT-SOCKET,5X10
-
130130CC0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
461461DB0500 WASHER-SPRING,5MMWASHER-SPRING,5MM
-
1105611056-2049 BRACKETBRACKET
-
1310713107-0744 SHAFT,IDLER GEARSHAFT,IDLER GEAR
-
1319413194-1096 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1328013280-0814 HOLDER,MAGNETIC SWITCHHOLDER,MAGNETIC SWITCH
-
1407914079-0009 HOLDER-ASSY,STARTERHOLDER-ASSY,STARTER
-
1409214092-0109 COVERCOVER
-
1608516085-1303 GEAR,CLUTCH ONEWAYGEAR,CLUTCH ONEWAY
-
2104021040-0001 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0729 STARTER-ELECTRICSTARTER-ELECTRIC
-
2116921169-1058 TERMINAL,STARTERTERMINAL,STARTER
-
2600626006-0001 FUSE,MINI BLADE,15A,(BLUE)FUSE,MINI BLADE,15A,(BLUE)
-
26006A26006-1080 FUSE,MINI BLADE,30A,(GREEN)FUSE,MINI BLADE,30A,(GREEN)
-
2601126011-0760 WIRE-LEADWIRE-LEAD
-
2701027010-0770 SWITCHSWITCH
-
5905159051-0714 GEAR-SPUR,IDLERGEAR-SPUR,IDLER
-
9202292022-2200 WASHERWASHER
-
9204892048-0018 RACERACE
-
9205592055-1260 RING-O,62MMRING-O,62MM
-
92055A92055-1261 RING-O,4.5MMRING-O,4.5MM
-
92055B92055-1262 RING-O,24.4X3.1RING-O,24.4X3.1
-
9207192071-0713 GROMMETGROMMET
-
9215092150-1237 BOLTBOLT
-
9215192151-1335 BOLT,6X14BOLT,6X14
-
92151A92151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9221092210-0188 NUT,6MMNUT,6MM
