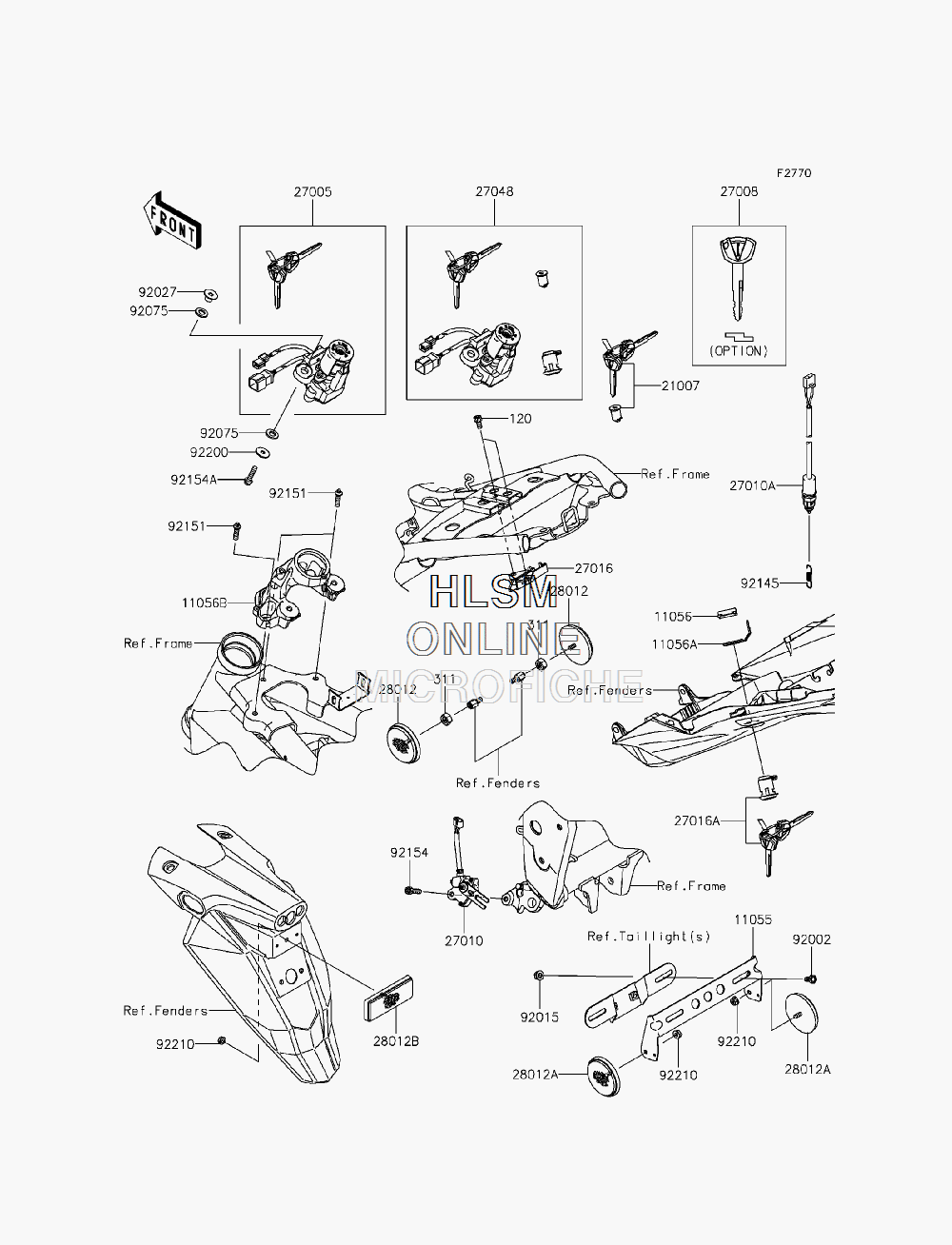

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска
-
№АртикулНазвание
-
120120CB0612 BOLT-SOCKET,6X12BOLT-SOCKET,6X12
-
311311AB0500 NUT-HEX,5MMNUT-HEX,5MM
-
1105511055-1092 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1105611056-0238 BRACKET,CLASPBRACKET,CLASP
-
11056A11056-2119 BRACKET,SEAT LOCKBRACKET,SEAT LOCK
-
11056B11056-2394 BRACKETBRACKET
-
2100721007-5077 ROTOR,LOCK,TANK CAPROTOR,LOCK,TANK CAP
-
2700527005-0613 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0596 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0722 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
27010A27010-0723 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-0008 LOCK-ASSY,SEAT STRIKERLOCK-ASSY,SEAT STRIKER
-
27016A27016-5386 LOCK-ASSY,SEATLOCK-ASSY,SEAT
-
2704827048-5095 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT,SIDEREFLECTOR-REFLEX, FRONT,SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9200292002-1132 BOLT,6X12BOLT,6X12
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9202792027-1045 COLLAR,L=9.6COLLAR,L=9.6
-
9207592075-1564 DAMPERDAMPER
-
9214592145-0946 SPRING, REAR BRAKESPRING, REAR BRAKE
-
9215192151-1946 BOLT,TORX,6X22BOLT,TORX,6X22
-
9215492154-0031 BOLT,SOCKET,6X22BOLT,SOCKET,6X22
-
92154A92154-1212 BOLT,FLANGED,6X25BOLT,FLANGED,6X25
-
9220092200-0780 WASHER,6X20X1.6WASHER,6X20X1.6
-
9221092210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
