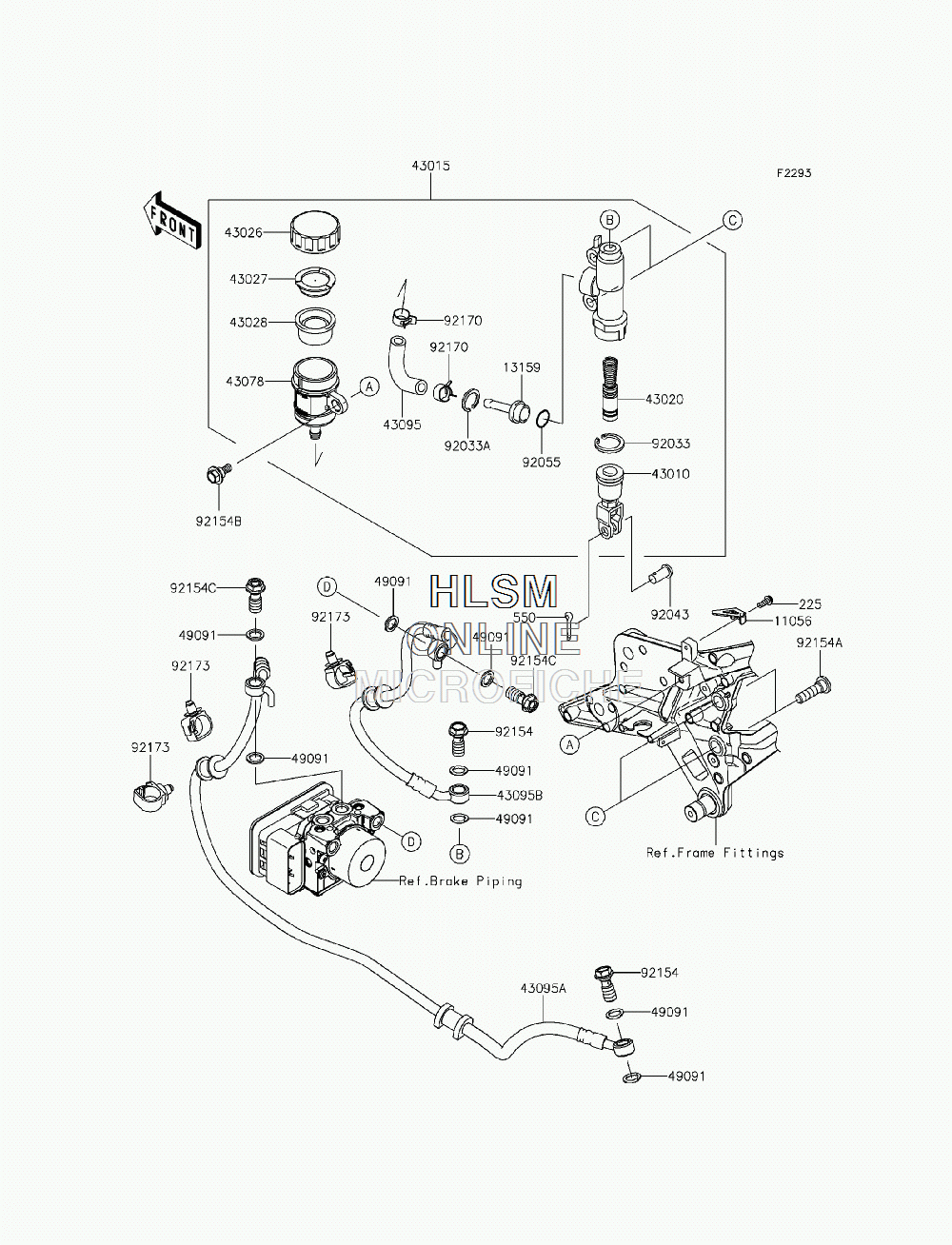

BRAKE - MASTER CYLINDER - REAR для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска`
-
№АртикулНазвание
-
225225AB0412 SCREW-PAN-WSP-CROS,4X12SCREW-PAN-WSP-CROS,4X12
-
550550AA2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
1105611056-1904 BRACKET,GUARDBRACKET,GUARD
-
1315913159-0009 CONNECTORCONNECTOR
-
4301043010-0009 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0574 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4307843078-0060 RESERVOIRRESERVOIR
-
4309543095-0585 HOSE-BRAKE, RESERVOIRHOSE-BRAKE, RESERVOIR
-
43095A43095-0715 HOSE-BRAKEHOSE-BRAKE
-
43095B43095-0766 HOSE-BRAKEHOSE-BRAKE
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9203392033-0079 RING-SNAP,20.9X24.6X1.2RING-SNAP,20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP,20.5MMRING-SNAP,20.5MM
-
9204392043-0104 PIN,8X17PIN,8X17
-
9205592055-0741 RING-O,14.8X2.4RING-O,14.8X2.4
-
9215492154-0226 BOLT,OIL,L=23BOLT,OIL,L=23
-
92154A92154-0843 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
92154B92154-0929 BOLTBOLT
-
92154C92154-1138 BOLT,BANJO,10X22BOLT,BANJO,10X22
-
9217092170-1091 CLAMP,HOSECLAMP,HOSE
-
9217392173-0868 CLAMP,HOLDER CLIPCLAMP,HOLDER CLIP
