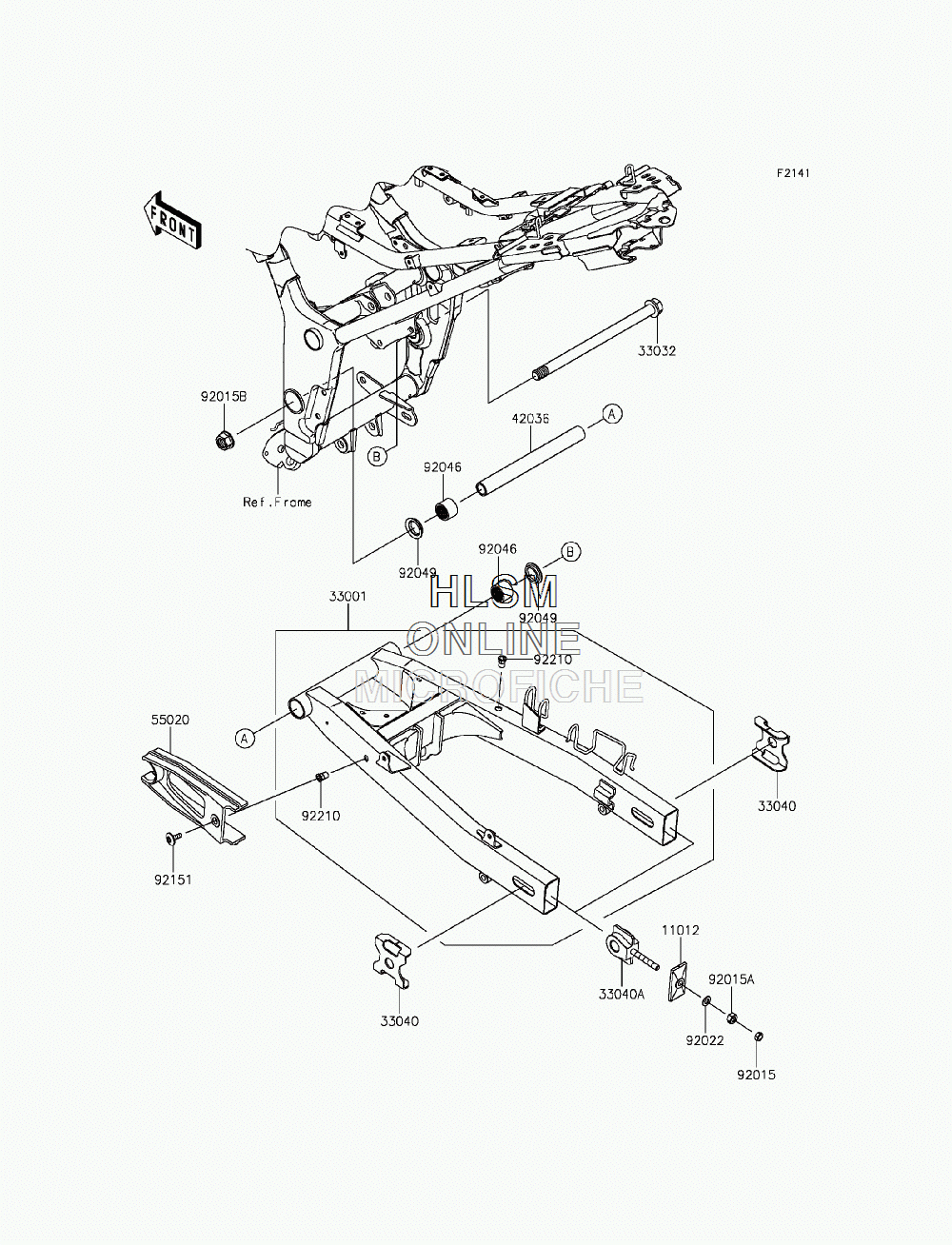

SUSPENSION - SWINGARM для Kawasaki NINJA 300 (EX300AFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1871-18R CAP,CHAIN ADJUSTER,(F.S.BLACK)
    CAP,CHAIN ADJUSTER,(F.S.BLACK)
  • 33001
    33001-0638-18R ARM-COMP-SWING,(F.S.BLACK)
    ARM-COMP-SWING,(F.S.BLACK)
  • 33032
    33032-1134 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-0030-18R ADJUSTER-CHAIN,OUTER,(F.S.BLACK)
    ADJUSTER-CHAIN,OUTER,(F.S.BLACK)
  • 33040A
    33040-1116 ADJUSTER-CHAIN,INNER
    ADJUSTER-CHAIN,INNER
  • 42036
    42036-1218 SLEEVE,16.1X22X213
    SLEEVE,16.1X22X213
  • 55020
    55020-0317 GUARD,CHAIN
    GUARD,CHAIN
  • 92015
    92015-1364 NUT,8MM
    NUT,8MM
  • 92015A
    92015-1658 NUT,8MM
    NUT,8MM
  • 92015B
    92015-1946 NUT,FLANGED,16MM
    NUT,FLANGED,16MM
  • 92022
    92022-1582 WASHER,8.5X16X1.2
    WASHER,8.5X16X1.2
  • 92046
    92046-0610 BEARING-NEEDLE,22X28X20
    BEARING-NEEDLE,22X28X20
  • 92049
    92049-1254 SEAL-OIL,MHA22 28 5.7F
    SEAL-OIL,MHA22 28 5.7F
  • 92151
    92151-1149 BOLT,SOCKET,6X18
    BOLT,SOCKET,6X18
  • 92210
    92210-1397 NUT,POP,6MM,L=15
    NUT,POP,6MM,L=15
