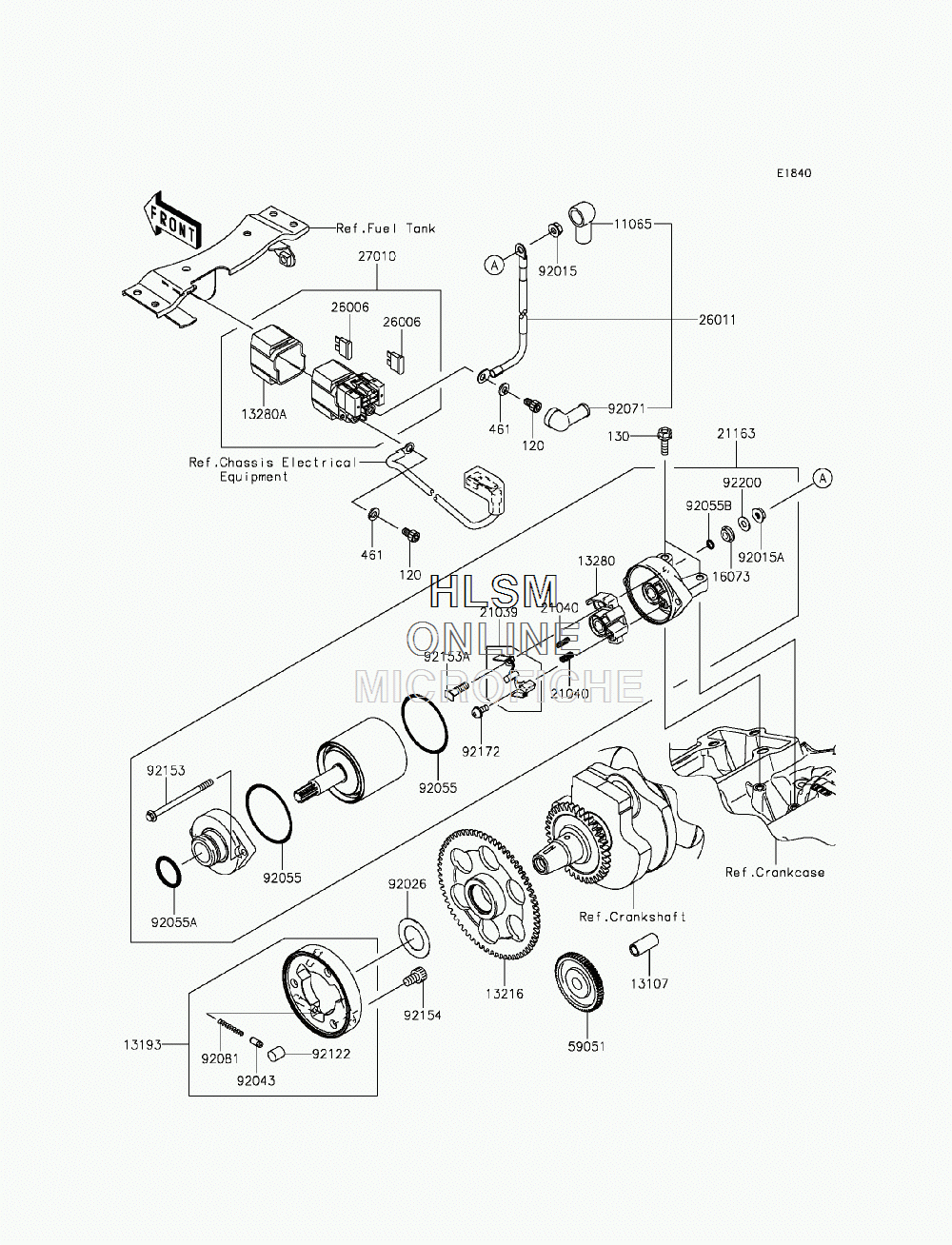

STARTER MOTOR для Kawasaki NINJA 300 (EX300AFF) - 2015 года выпуска`
-
№АртикулНазвание
-
120120CB0610 BOLT-SOCKET,6X10BOLT-SOCKET,6X10
-
130130BA0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
461461DA0600 WASHER-SPRING,6MMWASHER-SPRING,6MM
-
1106511065-0213 CAPCAP
-
1310713107-0743 SHAFT,7.8X12X26.5SHAFT,7.8X12X26.5
-
1319313193-1002 CLUTCH-ASSY-ONE WAYCLUTCH-ASSY-ONE WAY
-
1321613216-0880 GEAR-COMP,ONE WAY CLUTCH,65TGEAR-COMP,ONE WAY CLUTCH,65T
-
1328013280-0261 HOLDERHOLDER
-
13280A13280-0301 HOLDERHOLDER
-
1607316073-0053 INSULATORINSULATOR
-
2103921039-0005 BRUSH,CARBON SETBRUSH,CARBON SET
-
2104021040-0003 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0717 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1006 FUSE,BLADE,30A,(GREEN)FUSE,BLADE,30A,(GREEN)
-
2601126011-0808 WIRE-LEAD,STARTERWIRE-LEAD,STARTER
-
2701027010-0099 SWITCH,MAGNETICSWITCH,MAGNETIC
-
5905159051-0722 GEAR-SPUR,IDLERGEAR-SPUR,IDLER
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015A92015-1476 NUT,STARTER MOTORNUT,STARTER MOTOR
-
9202692026-0153 SPACER,25.2X40X1.0SPACER,25.2X40X1.0
-
9204392043-132 PINPIN
-
9205592055-0136 RING-ORING-O
-
92055A92055-1276 RING-ORING-O
-
92055B92055-1370 RING-O,4.5X2.0RING-O,4.5X2.0
-
9207192071-0705 GROMMETGROMMET
-
9208192081-159 SPRING,COILSPRING,COIL
-
9212292122-006 ROLLERROLLER
-
9215392153-1851 BOLT,SETBOLT,SET
-
92153A92153-1866 BOLTBOLT
-
9215492154-0175 BOLT,SOCKET,8X13BOLT,SOCKET,8X13
-
9217292172-0334 SCREWSCREW
-
9220092200-0386 WASHERWASHER
