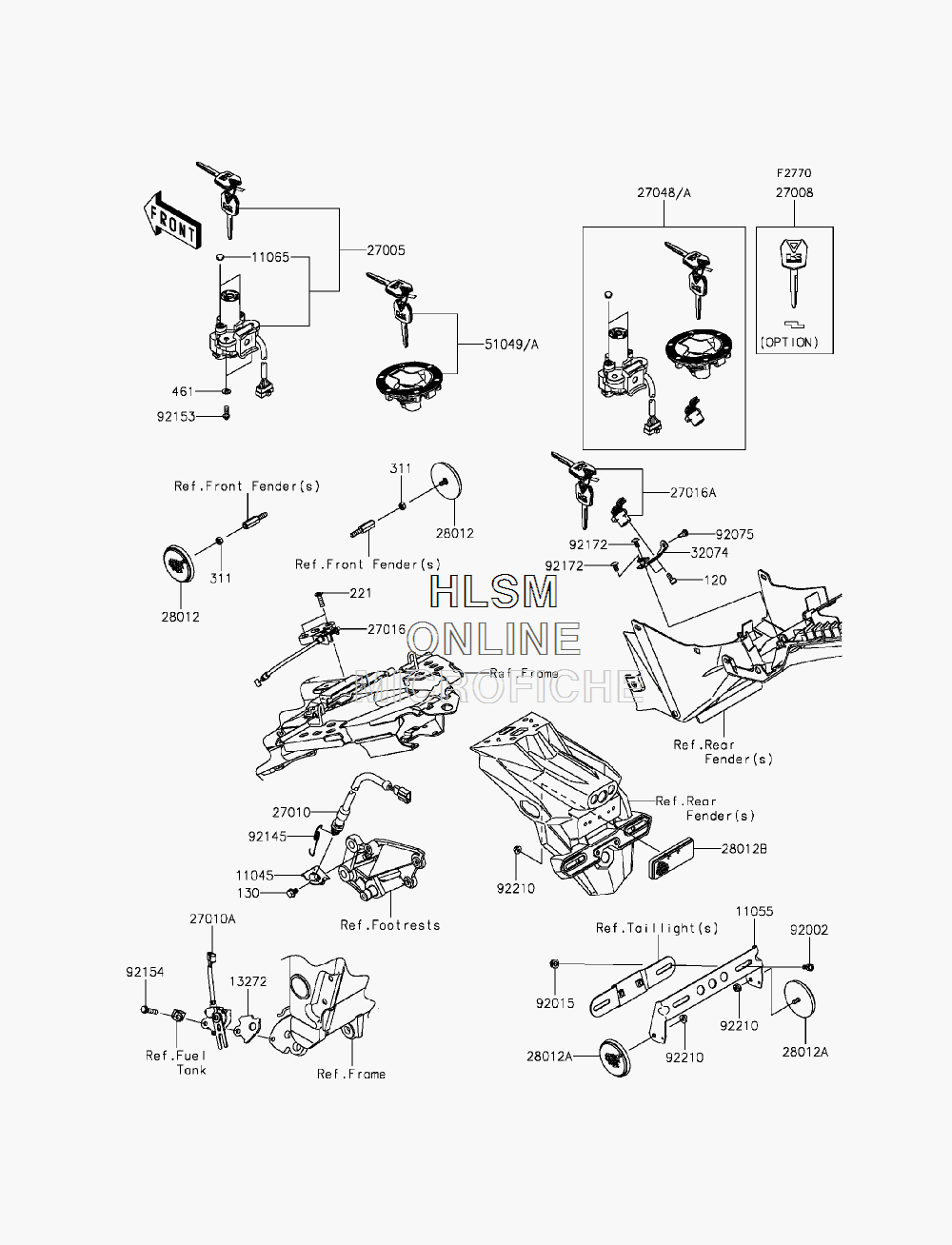

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA 300 (EX300AFF) - 2015 года выпуска
-
№АртикулНазвание
-
120120CB0512 BOLT-SOCKET,5X12BOLT-SOCKET,5X12
-
130130BA0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
221221AA0620 SCREW-CSK-CROS,6X20SCREW-CSK-CROS,6X20
-
311311AB0500 NUT-HEX,5MMNUT-HEX,5MM
-
461461DA0600 WASHER-SPRING,6MMWASHER-SPRING,6MM
-
1104511045-1641 BRACKET, REAR BRAKE SWITCHBRACKET, REAR BRAKE SWITCH
-
1105511055-1092 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1106511065-0708 CAP,IGNITION SWITCHCAP,IGNITION SWITCH
-
1327213272-1330 PLATEPLATE
-
2700527005-5144 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0053 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0726 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-1455 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
2701627016-0075 LOCK-ASSY,SEAT STRIKERLOCK-ASSY,SEAT STRIKER
-
27016A27016-5378 LOCK-ASSYLOCK-ASSY
-
2704827048-5075 SWITCH-ASSY (EXCEPT CALIF.)SWITCH-ASSY (EXCEPT CALIF.)
-
27048A27048-5077 SWITCH-ASSY (CALIF. ONLY)SWITCH-ASSY (CALIF. ONLY)
-
2801228012-0001 REFLECTOR-REFLEX, FRONT,SIDEREFLECTOR-REFLEX, FRONT,SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
3207432074-0018 BRACKET-LOCKBRACKET-LOCK
-
5104951049-5009 CAP-TANK,FUEL (EXCEPT CALIF.)CAP-TANK,FUEL (EXCEPT CALIF.)
-
51049A51049-5011 CAP-TANK,FUEL (CALIF. ONLY)CAP-TANK,FUEL (CALIF. ONLY)
-
9200292002-1132 BOLT,6X12BOLT,6X12
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9207592075-1808 DAMPERDAMPER
-
9214592145-0683 SPRING,BRAKE LAMP SWITCHSPRING,BRAKE LAMP SWITCH
-
9215392153-0967 BOLT,TORX,6X16BOLT,TORX,6X16
-
9215492154-1040 BOLT,FLANGED,6X30BOLT,FLANGED,6X30
-
9217292172-0262 SCREW,TAPPING,5X10SCREW,TAPPING,5X10
-
9221092210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
