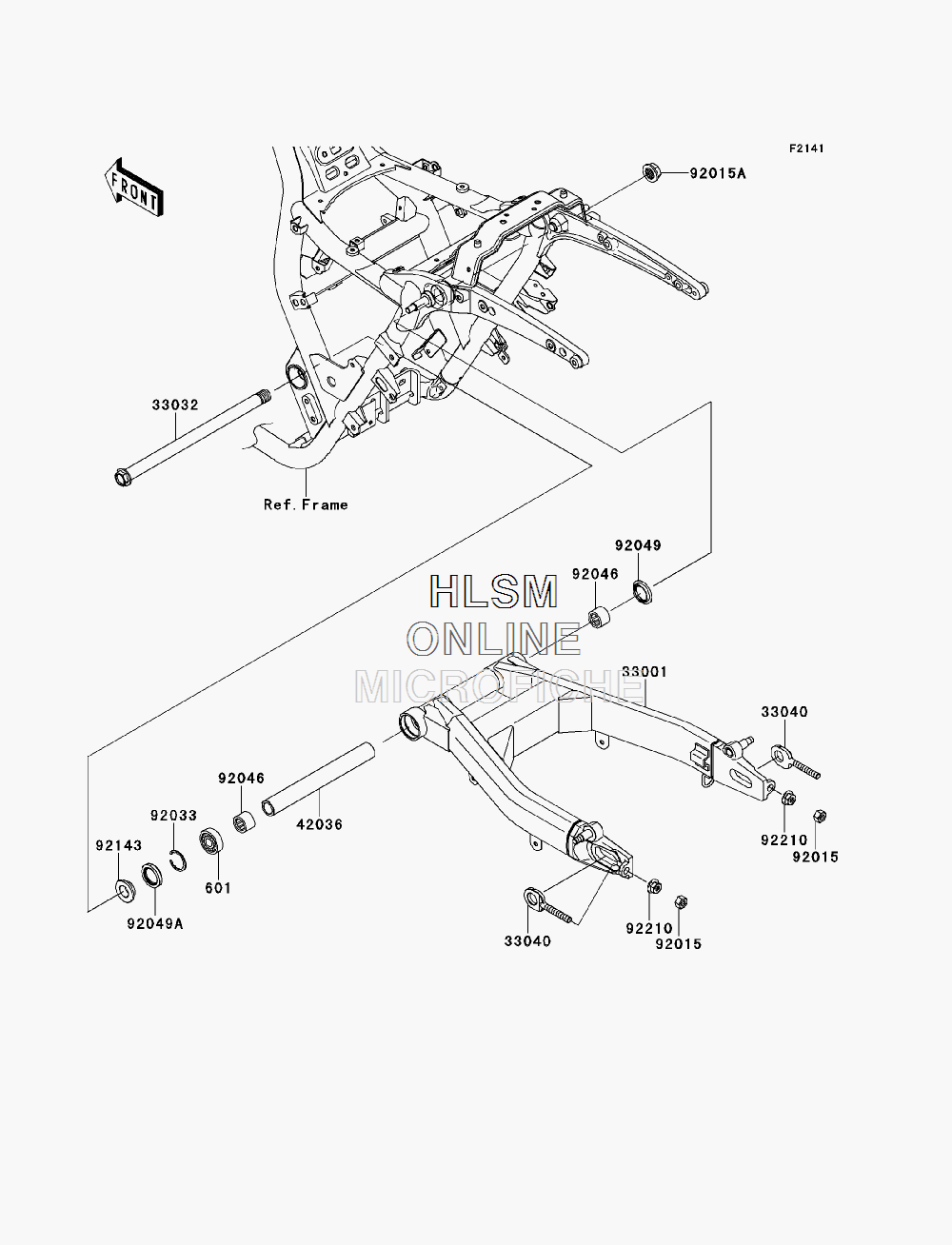

SUSPENSION - SWINGARM для Kawasaki VULCAN 1700 VOYAGER (VN1700ADF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 601
    601A6004 BEARING-BALL, #6004
    BEARING-BALL, #6004
  • 33001
    33001-0205-18R ARM-COMP-SWING, (F.S.BLACK)
    ARM-COMP-SWING, (F.S.BLACK)
  • 33032
    33032-0031 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-0005 ADJUSTER-CHAIN
    ADJUSTER-CHAIN
  • 42036
    42036-0059 SLEEVE, SWING ARM, L=235.5
    SLEEVE, SWING ARM, L=235.5
  • 92015
    92015-1494 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92015A
    92015-1724 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92046
    92046-1202 BEARING-NEEDLE, BM2824
    BEARING-NEEDLE, BM2824
  • 92049
    92049-1181 SEAL-OIL
    SEAL-OIL
  • 92049A
    92049-1185 SEAL-OIL, TC28426.5
    SEAL-OIL, TC28426.5
  • 92143
    92143-1727 COLLAR, SWING ARM, RIGHT HAND, L=12.5
    COLLAR, SWING ARM, RIGHT HAND, L=12.5
  • 92210
    92210-0349 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
