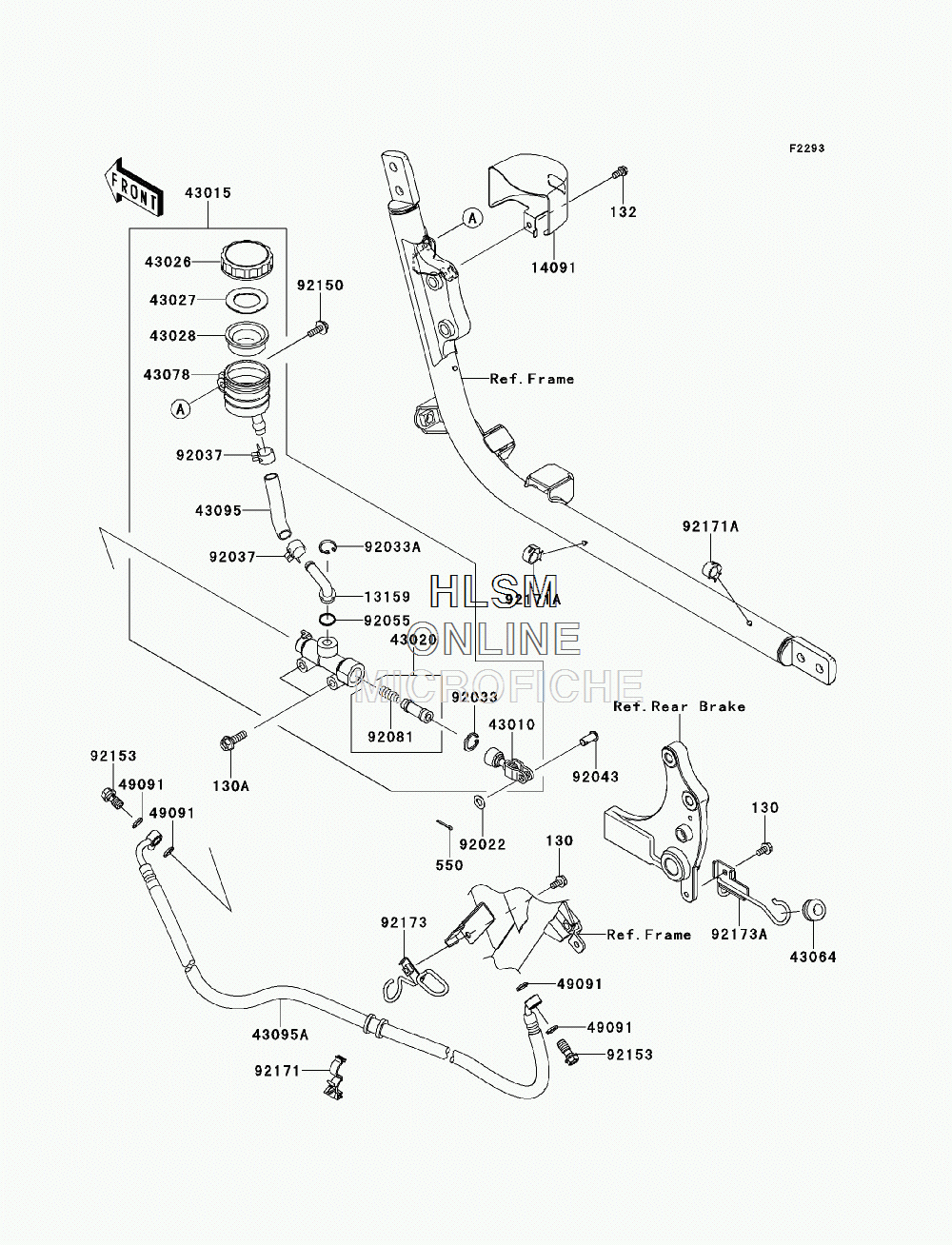

BRAKE - MASTER CYLINDER - REAR для Kawasaki VULCAN 1700 VOYAGER (VN1700ADF) - 2013 года выпуска`
-
№АртикулНазвание
-
130130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BB0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
132132BB0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
1409114091-1595 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0081 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4307843078-1178 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0306 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0480 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215092150-1339 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217192171-0782 CLAMPCLAMP
-
92171A92171-1424 CLAMP, DIA=15CLAMP, DIA=15
-
9217392173-0033 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92173A92173-0865 CLAMP, CALIPER HOLDERCLAMP, CALIPER HOLDER
