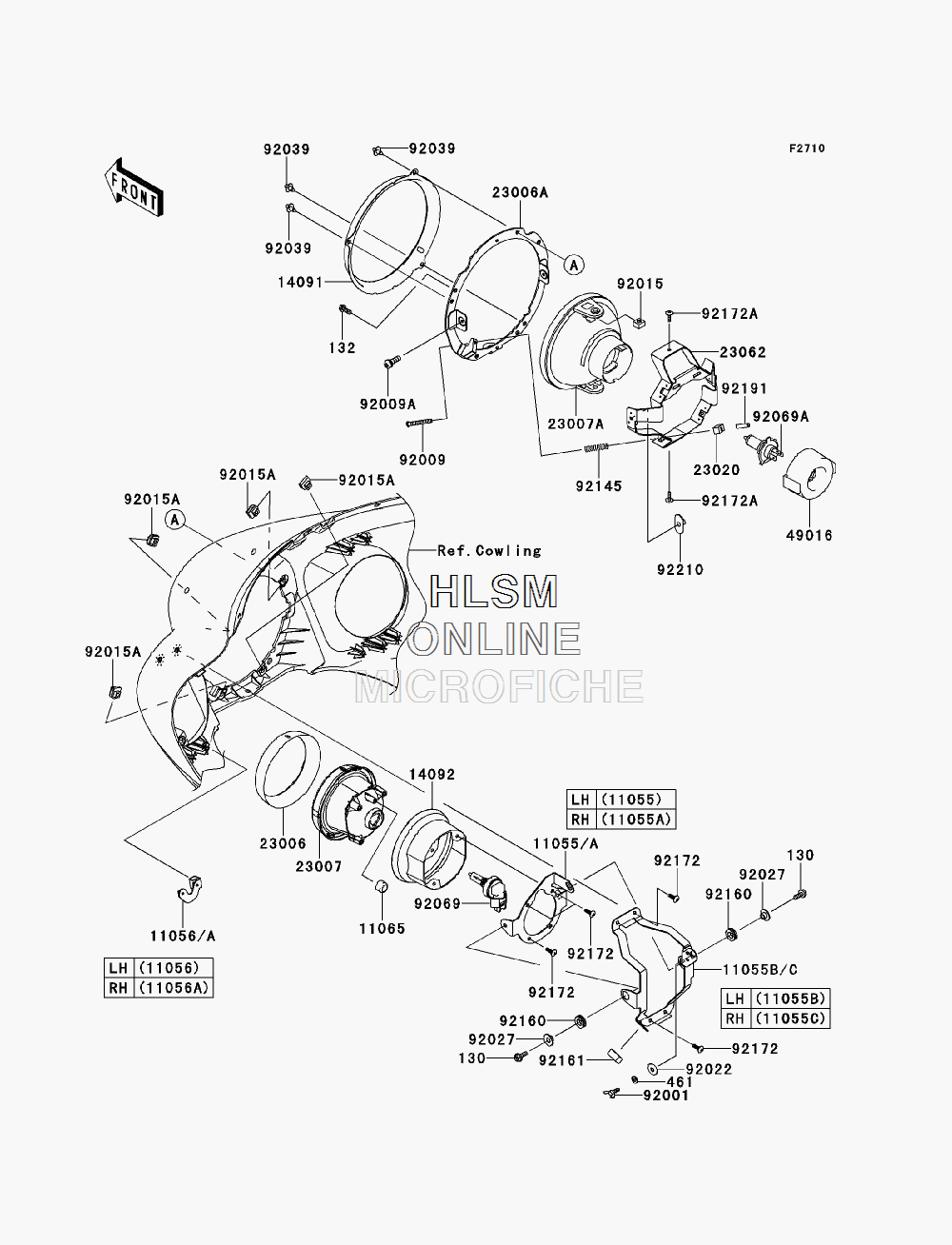

HEADLIGHT(S) для Kawasaki VULCAN 1700 VOYAGER (VN1700ADF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 130
    130AA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 132
    132BA0616 BOLT-FLANGED-SMALL, 6X16
    BOLT-FLANGED-SMALL, 6X16
  • 461
    461DA0600 WASHER-SPRING, 6MM
    WASHER-SPRING, 6MM
  • 11055
    11055-0730 BRACKET, AIMING, LEFT HAND
    BRACKET, AIMING, LEFT HAND
  • 11055A
    11055-0990 BRACKET, AIMING, RIGHT HAND
    BRACKET, AIMING, RIGHT HAND
  • 11055B
    11055-1779 BRACKET, AIMING, LEFT HAND
    BRACKET, AIMING, LEFT HAND
  • 11055C
    11055-1780 BRACKET, AIMING, RIGHT HAND
    BRACKET, AIMING, RIGHT HAND
  • 11056
    11056-1145 BRACKET, SUB LAMP, LEFT HAND, LWR
    BRACKET, SUB LAMP, LEFT HAND, LWR
  • 11056A
    11056-1146 BRACKET, SUB LAMP, RIGHT HAND, LWR
    BRACKET, SUB LAMP, RIGHT HAND, LWR
  • 11065
    11065-0135 CAP
    CAP
  • 14091
    14091-1620 COVER, RETAINER
    COVER, RETAINER
  • 14092
    14092-0130 COVER
    COVER
  • 23006
    23006-0015 RIM-LAMP
    RIM-LAMP
  • 23006A
    23006-0016 RIM-LAMP
    RIM-LAMP
  • 23007
    23007-0118 LENS-COMP, SUB LAMP
    LENS-COMP, SUB LAMP
  • 23007A
    23007-1396 LENS-COMP, HEAD LAMP
    LENS-COMP, HEAD LAMP
  • 23020
    23020-018 NUT, 4MM, FOCUS ADJUST
    NUT, 4MM, FOCUS ADJUST
  • 23062
    23062-1132 BRACKET-COMP, HEAD LAMP
    BRACKET-COMP, HEAD LAMP
  • 49016
    49016-1203 COVER-SEAL, SOCKET
    COVER-SEAL, SOCKET
  • 92001
    92001-1703 BOLT, WING, 6X15
    BOLT, WING, 6X15
  • 92009
    92009-1816 SCREW, FOCUS ADJUST, 4X60
    SCREW, FOCUS ADJUST, 4X60
  • 92009A
    92009-1879 SCREW, 5X16
    SCREW, 5X16
  • 92015
    92015-1157 NUT, 5MM
    NUT, 5MM
  • 92015A
    92015-1904 NUT, CLIP, 6MM
    NUT, CLIP, 6MM
  • 92022
    92022-1557 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
  • 92027
    92027-1848 COLLAR, L=7.4
    COLLAR, L=7.4
  • 92039
    92039-0083 RIVET
    RIVET
  • 92069
    92069-0054 BULB, 12V 35W, H8
    BULB, 12V 35W, H8
  • 92069A
    92069-1002 BULB, 12V 60/55W, H4
    BULB, 12V 60/55W, H4
  • 92145
    92145-1268 SPRING, HEAD LAMP LENS
    SPRING, HEAD LAMP LENS
  • 92160
    92160-1278 DAMPER
    DAMPER
  • 92161
    92161-0718 DAMPER
    DAMPER
  • 92172
    92172-0238 SCREW, TAPPING, 5X16
    SCREW, TAPPING, 5X16
  • 92172A
    92172-0391 SCREW, TAPPING, 4X16
    SCREW, TAPPING, 4X16
  • 92191
    92191-1217 TUBE, 3.5X5.5X19
    TUBE, 3.5X5.5X19
  • 92210
    92210-1060 NUT, SPECIAL, 5MM
    NUT, SPECIAL, 5MM
