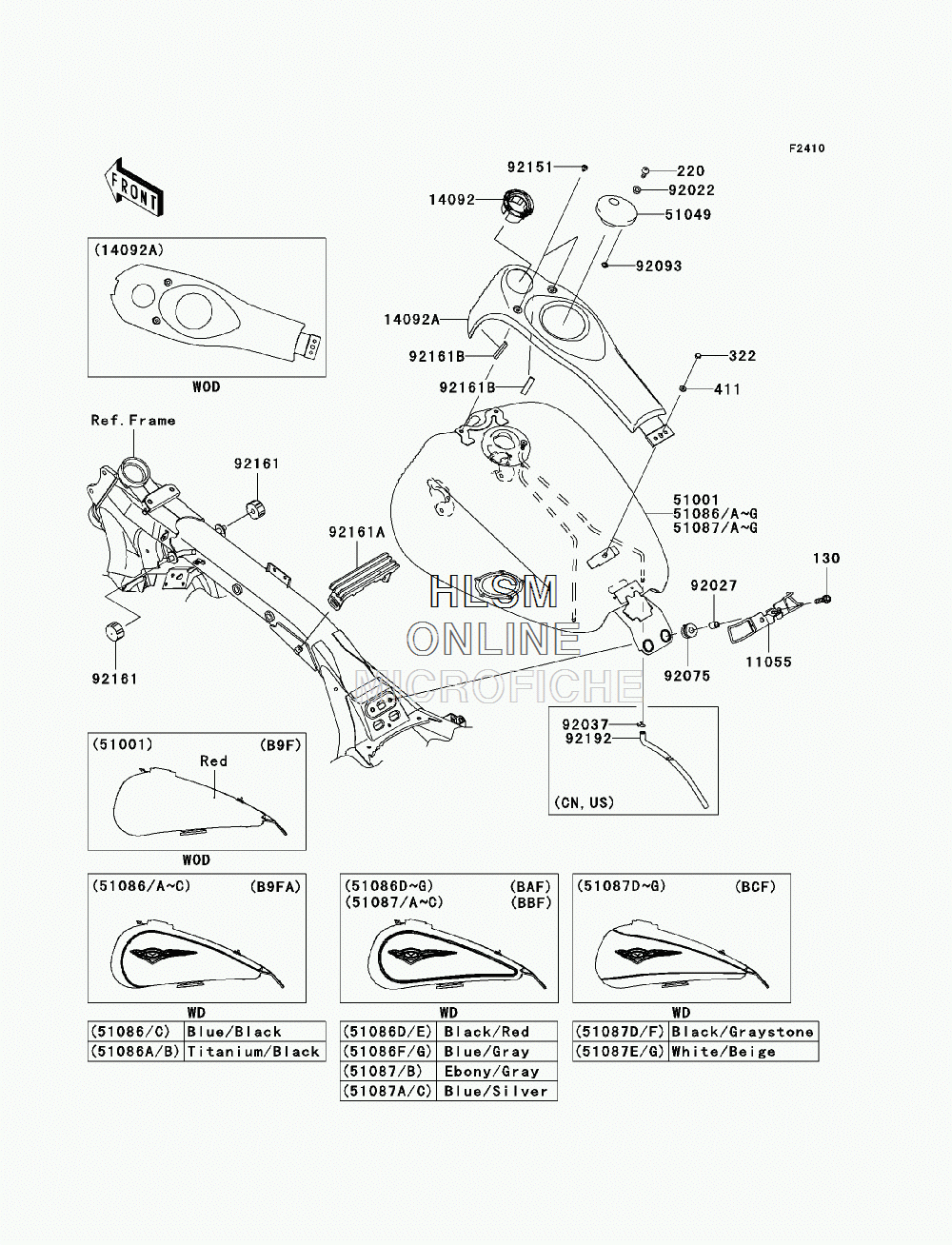

FUEL TANK для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 11055
    11055-1552 BRACKET,SEAT
    BRACKET,SEAT
  • 14092
    14092-0046 COVER,IGNITION SWITCH
    COVER,IGNITION SWITCH
  • 14092A
    14092-0116 COVER,FUEL TANK
    COVER,FUEL TANK
  • 51049
    51049-0003 CAP-TANK,FUEL
    CAP-TANK,FUEL
  • 51086D
    51086-5349-17K TANK-COMP-FUEL,BLACK/RED (EXCEPT CALIF.) (FOR 28S)
    TANK-COMP-FUEL,BLACK/RED (EXCEPT CALIF.) (FOR 28S)
  • 51086E
    51086-5350-17K TANK-COMP-FUEL,BLACK/RED (CALIF. ONLY) (FOR 28S)
    TANK-COMP-FUEL,BLACK/RED (CALIF. ONLY) (FOR 28S)
  • 51086F
    51086-5398-19A TANK-COMP-FUEL,BLUE/GRAY (EXCEPT CALIF.) (FOR 28P)
    TANK-COMP-FUEL,BLUE/GRAY (EXCEPT CALIF.) (FOR 28P)
  • 51086G
    51086-5440-19A TANK-COMP-FUEL,BLUE/GRAY (CALIF. ONLY) (FOR 28P)
    TANK-COMP-FUEL,BLUE/GRAY (CALIF. ONLY) (FOR 28P)
  • 130
    130BA0830 BOLT-FLANGED,8X30
    BOLT-FLANGED,8X30
  • 220
    220AA0510 SCREW-PAN-CROSS,5X10
    SCREW-PAN-CROSS,5X10
  • 322
    322AB0600 NUT-CAP,6MM,BLACK
    NUT-CAP,6MM,BLACK
  • 411
    411S0600 WASHER-PLAIN,6MM
    WASHER-PLAIN,6MM
  • 92022
    92022-1977 WASHER,5.1X10X1.0
    WASHER,5.1X10X1.0
  • 92027
    92027-034 COLLAR,8.8X12X17
    COLLAR,8.8X12X17
  • 92037
    92037-147 CLAMP,TUBE (EXCEPT CALIF.)
    CLAMP,TUBE (EXCEPT CALIF.)
  • 92075
    92075-1736 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL,FUEL TANK CAP
    SEAL,FUEL TANK CAP
  • 92151
    92151-1449 BOLT,SOCKET,6X10
    BOLT,SOCKET,6X10
  • 92161
    92161-0293 DAMPER,FUEL TANK
    DAMPER,FUEL TANK
  • 92161A
    92161-0577 DAMPER,FUEL TANK
    DAMPER,FUEL TANK
  • 92161B
    92161-0804 DAMPER,TANK COVER
    DAMPER,TANK COVER
  • 92192
    92192-0668 TUBE,BREATHER (EXCEPT CALIF.)
    TUBE,BREATHER (EXCEPT CALIF.)
