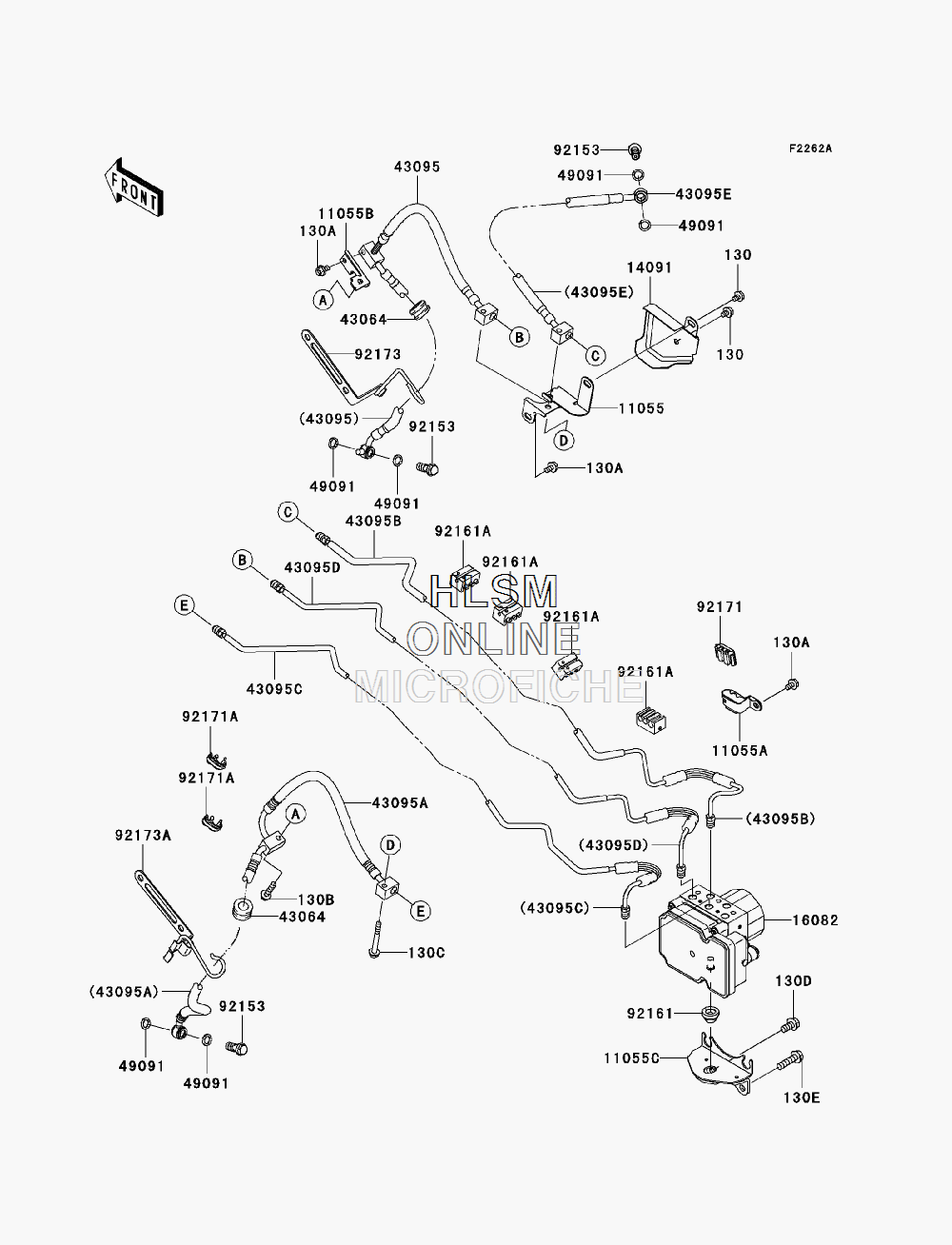

BRAKE PIPING для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0608 BOLT-FLANGED,6X8
    BOLT-FLANGED,6X8
  • 130A
    130BA0610 BOLT-FLANGED,6X10
    BOLT-FLANGED,6X10
  • 130B
    130BA0630 BOLT-FLANGED,6X30
    BOLT-FLANGED,6X30
  • 130C
    130BA0650 BOLT-FLANGED,6X50
    BOLT-FLANGED,6X50
  • 130D
    130BA0816 BOLT-FLANGED,8X16
    BOLT-FLANGED,8X16
  • 130E
    130BA0830 BOLT-FLANGED,8X30
    BOLT-FLANGED,8X30
  • 11055
    11055-0463 BRACKET
    BRACKET
  • 11055A
    11055-0787 BRACKET
    BRACKET
  • 11055B
    11055-1619 BRACKET,BRAKE HOSE
    BRACKET,BRAKE HOSE
  • 11055C
    11055-1826 BRACKET,ABS UNIT
    BRACKET,ABS UNIT
  • 14091
    14091-0988-18R COVER,ABS,F.S.BLACK
    COVER,ABS,F.S.BLACK
  • 16082
    16082-0049 PUMP-ASSY-OIL,WET TYPE
    PUMP-ASSY-OIL,WET TYPE
  • 43064
    43064-006 GROMMET,HOSE CLAMP
    GROMMET,HOSE CLAMP
  • 43095
    43095-0386 HOSE-BRAKE,HU-FRONT CALIPER, RIGHT HAND
    HOSE-BRAKE,HU-FRONT CALIPER, RIGHT HAND
  • 43095A
    43095-0482 HOSE-BRAKE,HU-FRONT CALIPER, LEFT HAND
    HOSE-BRAKE,HU-FRONT CALIPER, LEFT HAND
  • 43095B
    43095-0516 HOSE-BRAKE,(M/CYLINDER)-HU
    HOSE-BRAKE,(M/CYLINDER)-HU
  • 43095C
    43095-0517 HOSE-BRAKE,HU-(FRONT CALIPER, LEFT HAND)
    HOSE-BRAKE,HU-(FRONT CALIPER, LEFT HAND)
  • 43095D
    43095-0518 HOSE-BRAKE,HU-(FRONT CALIPER, RIGHT HAND)
    HOSE-BRAKE,HU-(FRONT CALIPER, RIGHT HAND)
  • 43095E
    43095-0556 HOSE-BRAKE, FRONT M/CYLINDER-(HU)
    HOSE-BRAKE, FRONT M/CYLINDER-(HU)
  • 49091
    49091-0001 WASHER-SEAL,10.1X14.5X1.5
    WASHER-SEAL,10.1X14.5X1.5
  • 92153
    92153-0627 BOLT,OIL,L=23
    BOLT,OIL,L=23
  • 92161
    92161-0282 DAMPER,ABS UNIT
    DAMPER,ABS UNIT
  • 92161A
    92161-0583 DAMPER
    DAMPER
  • 92171
    92171-1731 CLAMP
    CLAMP
  • 92171A
    92171-1819 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92173
    92173-0074 CLAMP, FRONT FENDER, RIGHT HAND
    CLAMP, FRONT FENDER, RIGHT HAND
  • 92173A
    92173-0076 CLAMP, FRONT FENDER, LEFT HAND
    CLAMP, FRONT FENDER, LEFT HAND
