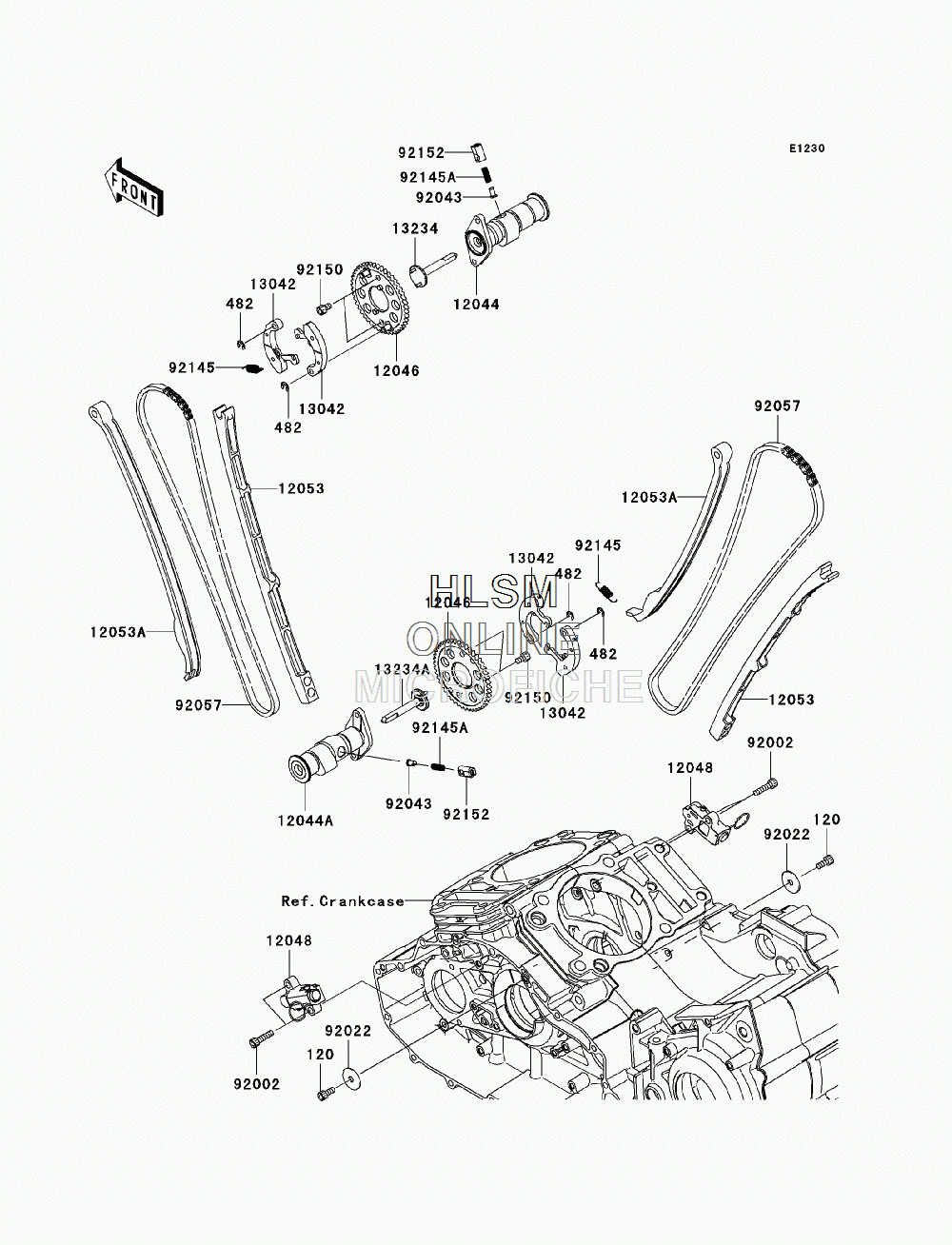

CAMSHAFT(S) W/ TENSIONER для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BAF) - 2010 года выпуска
-
№АртикулНазвание
-
120120CA0614 BOLT-SOCKET,6X14BOLT-SOCKET,6X14
-
482482J5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
1204412044-0134 CAMSHAFT-VALVE, FRONTCAMSHAFT-VALVE, FRONT
-
12044A12044-0135 CAMSHAFT-VALVE, REARCAMSHAFT-VALVE, REAR
-
1204612046-0064 SPROCKET,CAMSHAFT,46TSPROCKET,CAMSHAFT,46T
-
1204812048-0053 TENSIONER-ASSY,CAM CHAINTENSIONER-ASSY,CAM CHAIN
-
1205312053-0120 GUIDE-CHAIN,FIXED SIDEGUIDE-CHAIN,FIXED SIDE
-
12053A12053-0121 GUIDE-CHAIN,TENSIONER SIDEGUIDE-CHAIN,TENSIONER SIDE
-
1304213042-0028 WEIGHT,DECOMPWEIGHT,DECOMP
-
1323413234-0040 SHAFT-COMP, FRONT CAMSHAFTSHAFT-COMP, FRONT CAMSHAFT
-
13234A13234-0041 SHAFT-COMP, REAR CAMSHAFTSHAFT-COMP, REAR CAMSHAFT
-
9200292002-1696 BOLT,SOCKET,6X25BOLT,SOCKET,6X25
-
9202292022-227 WASHER,7X27X1.6WASHER,7X27X1.6
-
9204392043-0163 PINPIN
-
9205792057-0154 CHAIN,CAM,98XRIGHT HAND2010-146MCHAIN,CAM,98XRIGHT HAND2010-146M
-
9214592145-0586 SPRING,8X0.4X20SPRING,8X0.4X20
-
92145A92145-0589 SPRING,5.9X0.4X16.5SPRING,5.9X0.4X16.5
-
9215092150-1650 BOLT,SOCKET,6X10BOLT,SOCKET,6X10
-
9215292152-0650 COLLARCOLLAR
