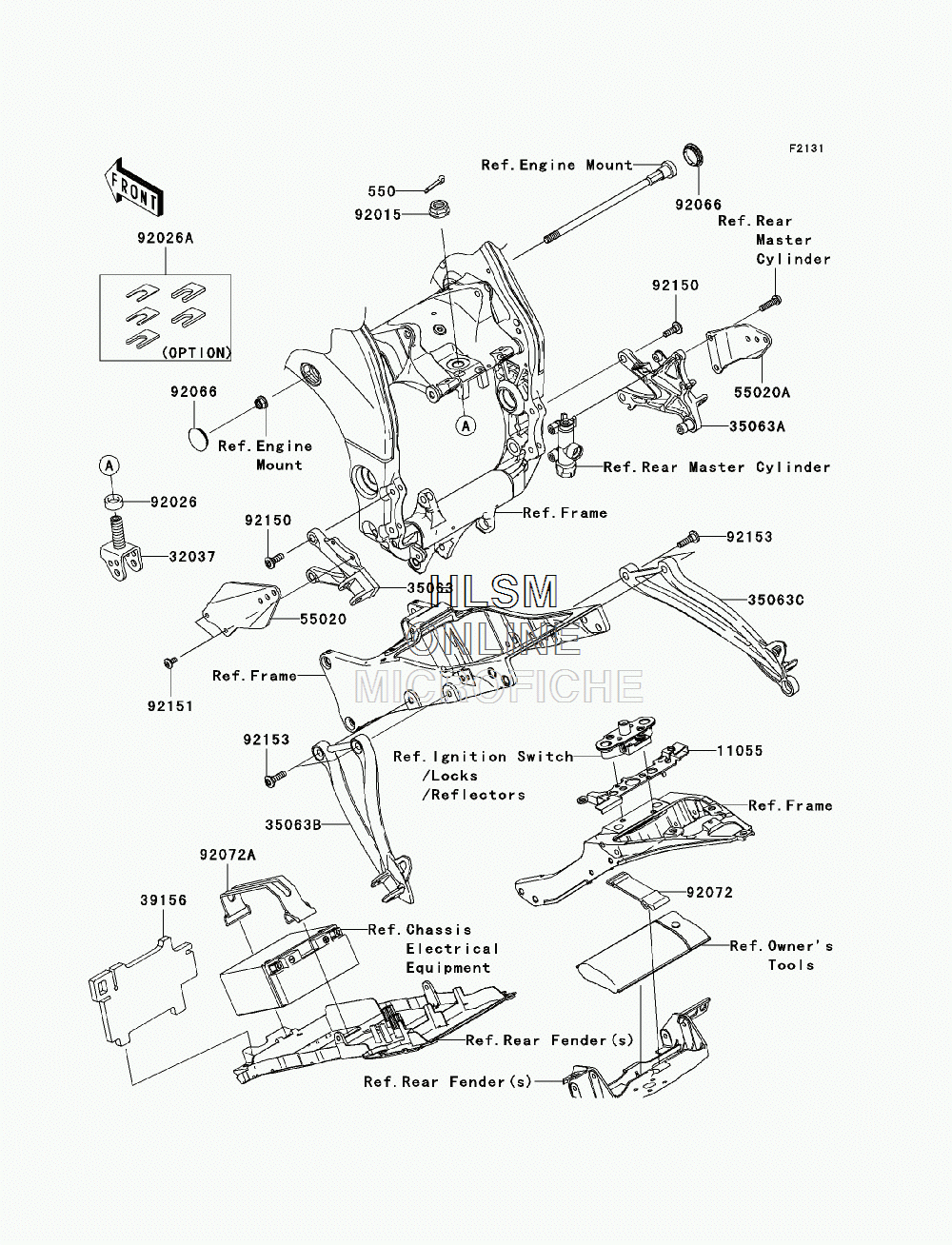

FRAME FITTINGS для Kawasaki NINJA ZX-10R (ZX1000E9FA) - 2009 года выпуска`
-
№АртикулНазвание
-
550550S3025 PIN-COTTER,3X25PIN-COTTER,3X25
-
1105511055-1011 BRACKET,HELMET HOLDERBRACKET,HELMET HOLDER
-
3203732037-0013 BRACKET-SHOCKABSORBERBRACKET-SHOCKABSORBER
-
3506335063-0226-11E STAY, FRONT, LEFT HAND,F.S.BLACKSTAY, FRONT, LEFT HAND,F.S.BLACK
-
35063A35063-0227-11E STAY, FRONT, RIGHT HAND,F.S.BLACKSTAY, FRONT, RIGHT HAND,F.S.BLACK
-
35063B35063-0444-11E STAY, REAR, LEFT HAND,F.S.BLACKSTAY, REAR, LEFT HAND,F.S.BLACK
-
35063C35063-0445-11E STAY, REAR, RIGHT HAND,F.S.BLACKSTAY, REAR, RIGHT HAND,F.S.BLACK
-
3915639156-0443 PAD,BATTERYPAD,BATTERY
-
5502055020-0414 GUARD, FRONT STEP STAY, LEFT HANDGUARD, FRONT STEP STAY, LEFT HAND
-
55020A55020-0415 GUARD, FRONT STEP STAY, RIGHT HANDGUARD, FRONT STEP STAY, RIGHT HAND
-
9201592015-1881 NUT,FLANGED,16MMNUT,FLANGED,16MM
-
9202692026-0129 SPACER,16.5X26X10SPACER,16.5X26X10
-
92026A92026-1586 SPACER,SET (OPTION)SPACER,SET (OPTION)
-
9206692066-0120 PLUGPLUG
-
9207292072-1176 BAND,TOOLBAND,TOOL
-
92072A92072-1306 BAND,L=168BAND,L=168
-
9215092150-1845 BOLT,8X25BOLT,8X25
-
9215192151-1654 BOLT,SOCKET,6X14BOLT,SOCKET,6X14
-
9215392153-1630 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
