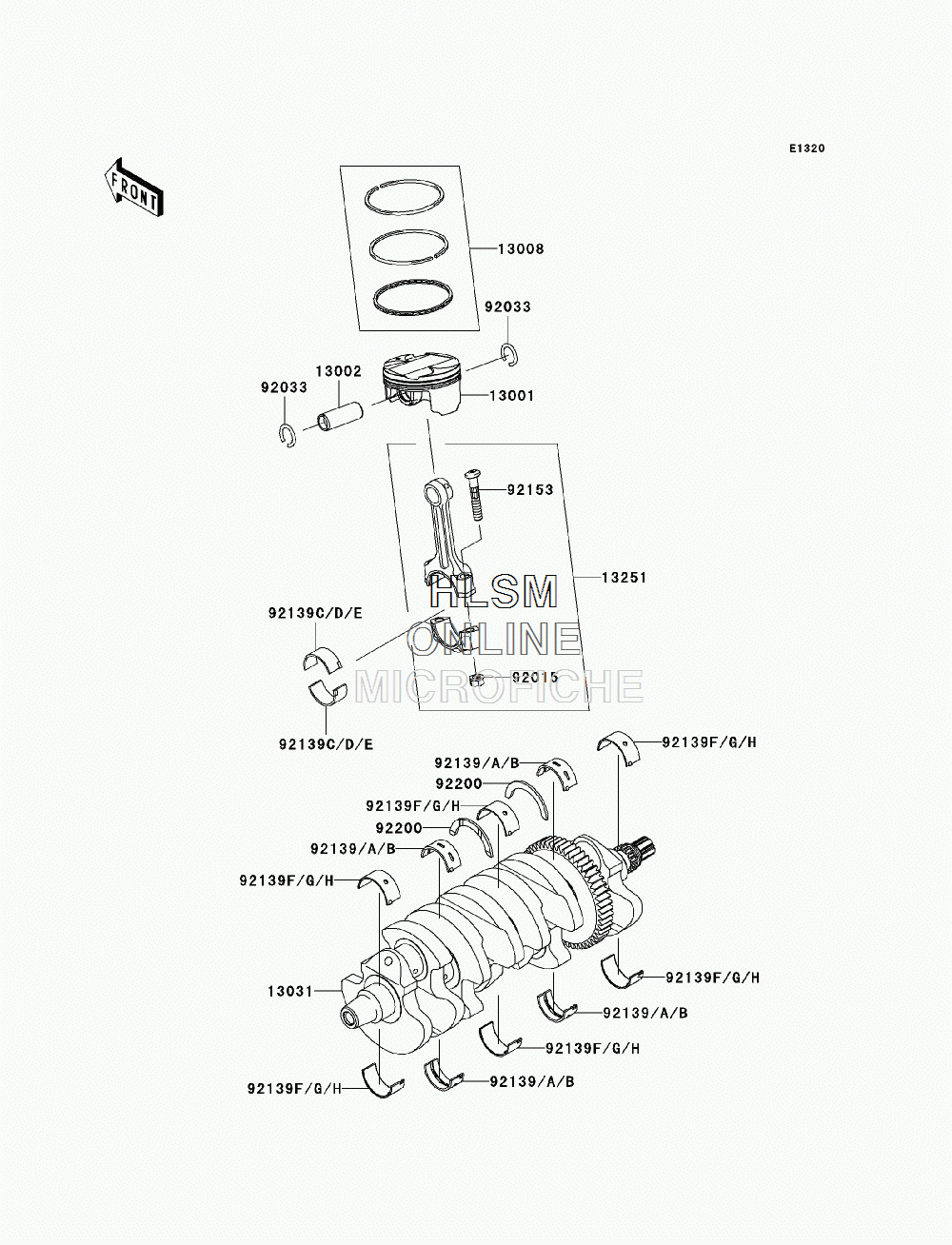

CRANKSHAFT/PISTON(S) для Kawasaki NINJA ZX-10R (ZX1000E9FA) - 2009 года выпуска

  • №
    Артикул
    Название
  • 13001
    13001-0098 PISTON-ENGINE
    PISTON-ENGINE
  • 13002
    13002-0004 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-0005 RING-SET-PISTON
    RING-SET-PISTON
  • 13031
    13031-0108 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13251
    13251-0023-II ROD-ASSY-CONNECTING,I
    ROD-ASSY-CONNECTING,I
  • 92015
    92015-1311 NUT,FLANGED,8MM
    NUT,FLANGED,8MM
  • 92033
    92033-1054 RING-SNAP
    RING-SNAP
  • 92139
    92139-0032 BUSHING,CRANK #2 & #4,BLUE
    BUSHING,CRANK #2 & #4,BLUE
  • 92139A
    92139-0033 BUSHING,CRANK #2 & #4,BLACK
    BUSHING,CRANK #2 & #4,BLACK
  • 92139B
    92139-0034 BUSHING,CRANK #2 & #4,BROWN
    BUSHING,CRANK #2 & #4,BROWN
  • 92139C
    92139-0122 BUSHING,CRANK PIN,BLUE
    BUSHING,CRANK PIN,BLUE
  • 92139D
    92139-0123 BUSHING,CRANK PIN,BLACK
    BUSHING,CRANK PIN,BLACK
  • 92139E
    92139-0124 BUSHING,CRANK PIN,BROWN
    BUSHING,CRANK PIN,BROWN
  • 92139F
    92139-0217 BUSHING,CRANK,#1 & #3 & #5,BLUE
    BUSHING,CRANK,#1 & #3 & #5,BLUE
  • 92139G
    92139-0218 BUSHING,CRANK,#1 & #3 & #5,BLACK
    BUSHING,CRANK,#1 & #3 & #5,BLACK
  • 92139H
    92139-0219 BUSHING,CRANK,#1 & #3 & #5,BROWN
    BUSHING,CRANK,#1 & #3 & #5,BROWN
  • 92153
    92153-0809 BOLT,CON-ROD,M8X45.5
    BOLT,CON-ROD,M8X45.5
  • 92200
    92200-0424 WASHER,T=3.25
    WASHER,T=3.25
