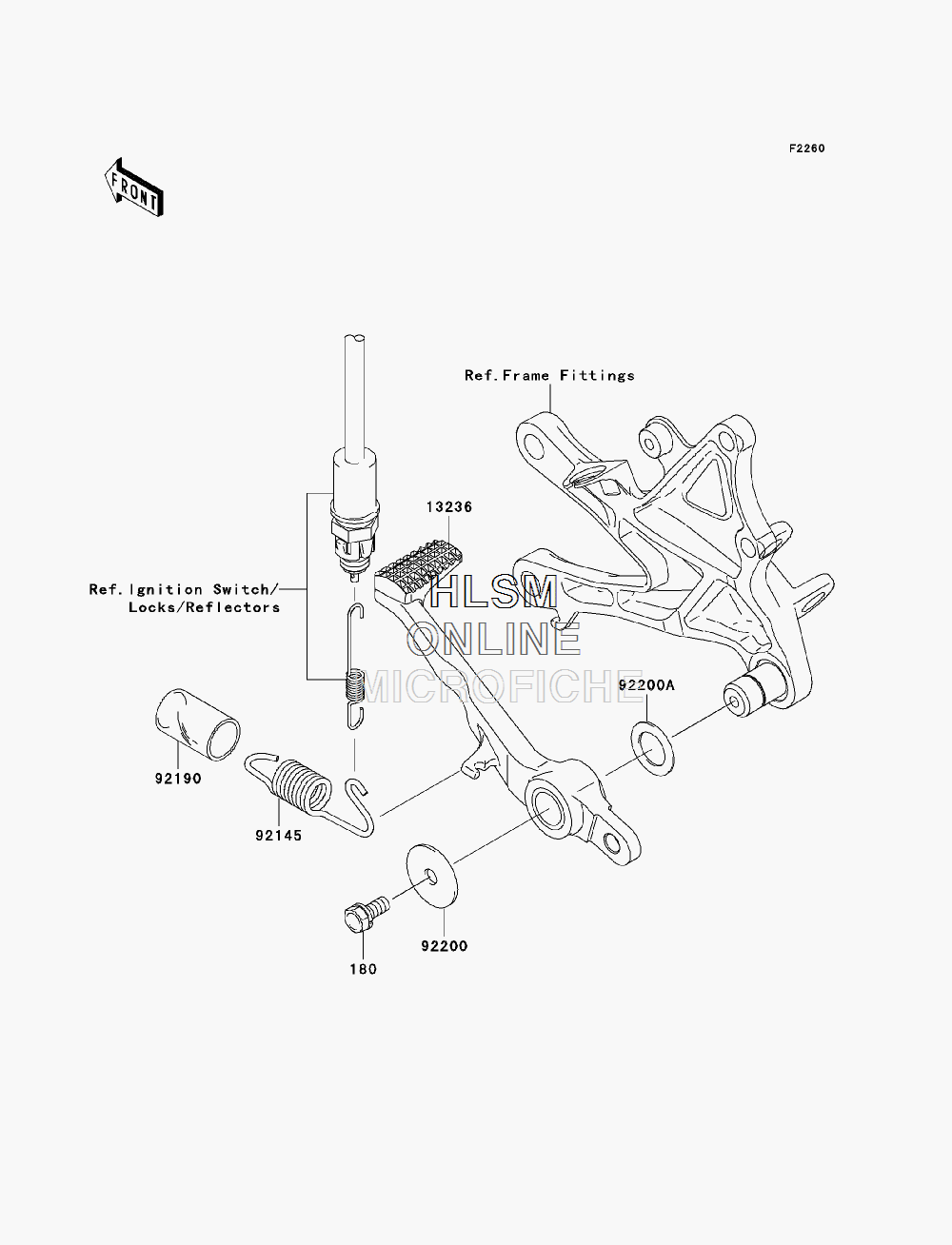

BRAKE PEDAL W/ TORQUE LINK для Kawasaki NINJA ZX-10R (ZX1000E9FA) - 2009 года выпуска
-
№АртикулНазвание
-
180180BA0614 BOLT-UPSET-WS,6X14BOLT-UPSET-WS,6X14
-
1323613236-0146 LEVER-COMP,BRAKE PEDALLEVER-COMP,BRAKE PEDAL
-
9214592145-0230 SPRING,BRAKE PEDAL RETURNSPRING,BRAKE PEDAL RETURN
-
9219092190-1185 TUBE,16X19X30TUBE,16X19X30
-
9220092200-0279 WASHER,7X28X1.6WASHER,7X28X1.6
-
92200A92200-0280 WASHER,15.3X24X1.0WASHER,15.3X24X1.0
