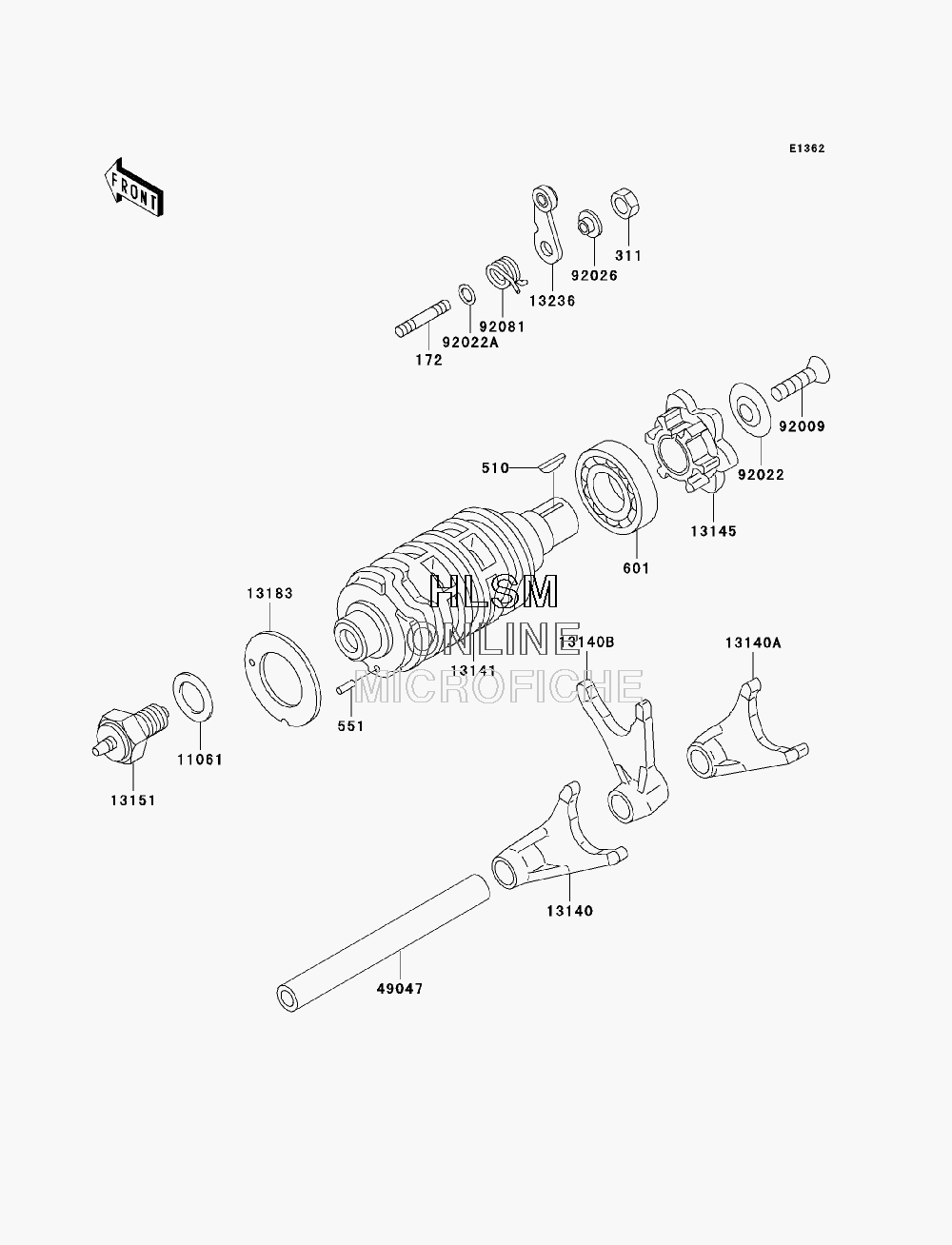

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki ELIMINATOR 125 (BN125A9F) - 2009 года выпуска
-
№АртикулНазвание
-
172172G0612 BOLT-STUD, 6X12BOLT-STUD, 6X12
-
311311BA0600 NUT-HEXNUT-HEX
-
510510A3200 KEY-WOODRUFFKEY-WOODRUFF
-
551551A0306 PIN-DOWEL, 3X6PIN-DOWEL, 3X6
-
601601B6003 BEARING-BALLBEARING-BALL
-
1106111061-0373 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
1314013140-1247 FORK-SHIFT, 2ND-4THFORK-SHIFT, 2ND-4TH
-
13140A13140-1264 FORK-SHIFT, LOW-3RDFORK-SHIFT, LOW-3RD
-
13140B13140-1265 FORK-SHIFT, 5TH-TOPFORK-SHIFT, 5TH-TOP
-
1314113141-1210 DRUM-CHANGEDRUM-CHANGE
-
1314513145-1084 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-1080 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1318313183-1066 PLATE, CHANGEPLATE, CHANGE
-
1323613236-1192 LEVER-COMP, DRUM POSITIONLEVER-COMP, DRUM POSITION
-
4904749047-1068 ROD-SHIFTROD-SHIFT
-
9200992009-1360 SCREW, 6X16SCREW, 6X16
-
9202292022-1792 WASHERWASHER
-
92022A92022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9208192081-1993 SPRING, POSITION LEVERSPRING, POSITION LEVER
